SERVICE MANUAL
Ver 1.0 2004. 09
9-879-193-01
2004I04-1
© 2004. 09
Time display
UK
Other countries/regions
Frequency range
Band
DAB (L-Band)
DAB (Band-III)
FM
MW
LW
Speaker:
Power output:
Output:
Power requirements:
Power consumption:
Dimensions:
Mass:
Supplied accessories:
Design and specifications are subject to change
without notice.
Sony Corporation
Personal Audio Company
Published by Sony Engineering Corporation
World of free manuals
SPECIFICATIONS
12-hour system
24-hour system
Frequency
Channel step
1452.960
– 1490.624 MHz
174.928
– 239.200 MHz
87.5 – 108 MHz
0.05 MHz
531 – 1,602 kHz
9 kHz
153 – 279 kHz
3 kHz
inches) dia., 3.2 Ω
8 cm (3
1/4
2.3 W+2.3 W (at 10% harmonic distortion)
Headphone jack (stereo mini jack)
230 V AC, 50 Hz
13 W
Approx. 320 × 142 × 154 mm (w/h/d)
(Approx. 12
× 5
× 6
inches) incl.
3/4
5/8
1/8
projecting parts and controls
Approx. 2.5 kg (5 lb 8 oz)
AC power cord (1),
Remote control (RMT-CS1AD) (1)

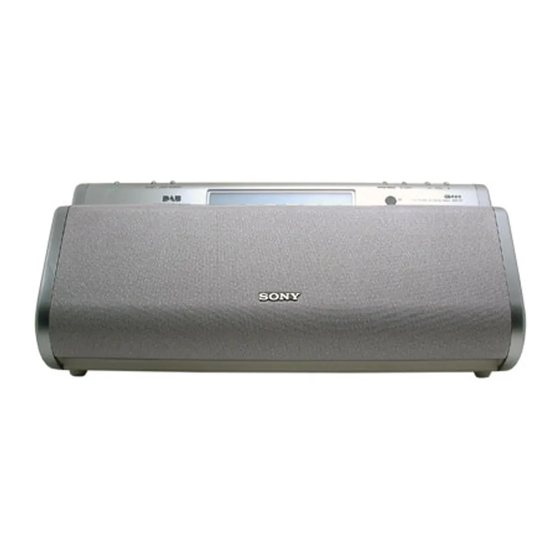

DAB/FM/MW/LW DIGITAL RADIO
XDR-S1
AEP Model
UK Model
23/7/2013
1
Advertisement
Table of Contents
Related Manuals for Sony XDR-S1
Summary of Contents for Sony XDR-S1
- Page 1 Supplied accessories: AC power cord (1), Remote control (RMT-CS1AD) (1) Design and specifications are subject to change without notice. DAB/FM/MW/LW DIGITAL RADIO Sony Corporation 9-879-193-01 2004I04-1 Personal Audio Company © 2004. 09 Published by Sony Engineering Corporation World of free manuals...
-
Page 2: Table Of Contents
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. -
Page 3: General
23/7/2013 XDR-S1 SECTION 1 GENERAL This section is extracted from instruction manual. • LOCATION OF CONTROLS World of free manuals... -
Page 4: Disassembly
23/7/2013 XDR-S1 SECTION 2 DISASSEMBLY • The equipment can be removed using the following procedure. 2-1. CABINET (REAR) ASSY (Page 4) 2-2. WIRES (Page 5) 2-3. CABINET UPPER ASSY (Page 5) 2-4. KEY BOARD (Page 6) 2-5. TUNER BOARD (Page 6) 2-6. -
Page 5: Wires
23/7/2013 XDR-S1 2-2. WIRES Put flat cable and wires between the cabinets and push them in the grooves located at A to D in the figure to prevent disconnection before assembling the set. front side 2-3. CABINET UPPER ASSY... -
Page 6: Key Board
23/7/2013 XDR-S1 2-4. KEY BOARD 4 cabinet upper assy (SVX) 7 KEY board 6 five screws P tapping (B2.6) 1 CN702 (4P) 5 three screws P tapping (B2.6) 3 two screws P tapping (B2.6) 2 two screws P tapping (B2.6) 2-5. -
Page 7: Micon Board
23/7/2013 XDR-S1 2-6. MICON BOARD claw 2 helical antenna 1 screw claw P tapping (B2.6) 4 three screws P tapping (B2.6) green yellow black natural 6 MICON board 5 three screws P tapping (B2.6) 3 Remove the five solderings. -
Page 8: Electrical Adjustments
23/7/2013 XDR-S1 SECTION 3 ELECTRICAL ADJUSTMENTS TRACKING ADJUSTMENT • MW 1. Select “MW” using the TUNE/SET UP [+]/[--] key, and press This set has the calibration function for tracking adjustment. It is the [MENU/ENTER] key. calibrated on each of LW and MW bands using frequencies at 7 2. -
Page 9: Diagrams
23/7/2013 XDR-S1 SECTION 4 DIAGRAMS • CIRCUIT BOARDS LOCATION • NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) -
Page 10: Printed Wiring Board -Tuner Section
23/7/2013 XDR-S1 4-1. PRINTED WIRING BOARD — TUNER SECTION — • Refer to page 9 for Circuit Boards Location. : Uses unleaded solder. (Page 13) AUDIO BOARD CN304 TUNER BOARD TUNER BOARD (SIDE A) (SIDE B) KH501 TU501 TUNER MODULE... -
Page 11: Printed Wiring Boards -Micon Section
23/7/2013 XDR-S1 4-2. PRINTED WIRING BOARDS — MICON SECTION — • Refer to page 9 for Circuit Boards Location. : Uses unleaded solder. KEY BOARD PRESET S614 S613 S612 S611 S610 S609 S608 S607 S606 S605 TUNE/SET UP S617... -
Page 12: Schematic Diagram -Tuner, Micon Section
23/7/2013 XDR-S1 4-3. SCHEMATIC DIAGRAM — TUNER, MICON SECTION — • Refer to page 9 for Waveforms. • Refer to page 15 for IC Pin Description of IC701. When IC701 is damaged, replace the MICON board. ANT502 L701 ANT501... -
Page 13: Printed Wiring Boards -Audio, Power Supply Section
23/7/2013 XDR-S1 4-4. PRINTED WIRING BOARDS — AUDIO, POWER SUPPLY SECTION — • Refer to page 9 for Circuit Boards Location. : Uses unleaded solder. MD LINK J301 J302 IC301 LINE LINE OPTICAL DIGITAL KH301 FB301 C316 KH302 C318... -
Page 14: Schematic Diagram -Audio, Power Supply Section
23/7/2013 XDR-S1 4-5. SCHEMATIC DIAGRAM — AUDIO, POWER SUPPLY SECTION — • Refer to page 9 for IC Block Diagram. C111 R211 R111 JW308 D202 D102 C211 C221 C317 C318 KH301 R201 CN301 C313 C121 R125 R124 R225 C307... - Page 15 23/7/2013 XDR-S1 • IC PIN DESCRIPTION • IC701 MB90F474HPFV-GE1 (SYSTEM CONTROL) (MICON BOARD) Pin No. Pin Name Pin Description Data for EEPROM (Not used) Clock for EEPROM (Not used) P24/BEEP BEEP output 4 to 8 P25 to 31 Not used —...
- Page 16 23/7/2013 XDR-S1 Pin No. Pin Name Pin Description P50/KEY_OFF KEY power control P51/LIGHT_ON1 Back light control P52/LIGHT_ON2 Back light control P53/LIGHT_ON3 Back light control P54/SHIMUKE_1 Destination selection P55/SHIMUKE_2 Destination selection P56/SHIFT_CLOCK Shift clock output Reset input Not used Cristal oscillator output (Sub) Cristal oscillator input (Sub) —...
-
Page 17: Exploded Views
23/7/2013 XDR-S1 SECTION 5 EXPLODED VIEWS NOTE: • The mechanical parts with no reference • Color Indication of Appearance Parts The components identified by mark 0 or dotted line with mark number in the exploded views are not supplied. -
Page 18: Cabinet Front Section
23/7/2013 XDR-S1 5-2. CABINET FRONT SECTION ANT501 SP101 not supplied SP201 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-918-696-11 SCREW (M3X6 LOCK ACE) 3-254-151-01 SCREW (B2.6), (+) P TAPPING 3-246-344-11 FOOT, RUBBER A-1065-106-A KEY BOARD, COMPLETE... -
Page 19: Chassis Section
23/7/2013 XDR-S1 5-3. CHASSIS SECTION L701 F901 Q905 T902 ANT502 supplied F902 T901 TU501 F903 CN501 not supplied C506 C525 L501 C520 LCD701 IC704 The components identified by mark 0 or dotted line with mark 0 are critical for safety. -
Page 20: Electrical Parts List
23/7/2013 XDR-S1 SECTION 6 AUDIO ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in • Items marked “*” are not stocked since The components identified by mark 0 or dotted line with mark the parts list may be different from the they are seldom required for routine service. - Page 21 23/7/2013 XDR-S1 AUDIO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < IC > R120 1-216-825-11 METAL CHIP 2.2K 1/10W R121 1-216-813-11 METAL CHIP 1/10W IC302 8-759-636-55 IC M5218AFP R122 1-216-789-11 METAL CHIP 1/10W IC303...
- Page 22 23/7/2013 XDR-S1 JACK MICON Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-1065-120-A JACK BOARD, COMPLETE S609 1-762-196-21 SWITCH, TACTILE (6) ********************* S610 1-762-196-21 SWITCH, TACTILE (5) S611 1-762-196-21 SWITCH, TACTILE (4) < CAPACITOR >...
- Page 23 23/7/2013 XDR-S1 MICON Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C737 1-162-964-11 CERAMIC CHIP 0.001uF D704 6-500-915-01 LED SLP-WH118A-51-SW (LCD BACK LIGHT) C738 1-107-826-11 CERAMIC CHIP 0.1uF D705 8-719-076-70 DIODE KV1520TL C739 1-165-908-11 CERAMIC CHIP...
- Page 24 23/7/2013 XDR-S1 MICON POWER Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R728 1-216-845-11 METAL CHIP 100K 1/10W R790 1-216-797-11 METAL CHIP 1/10W R729 1-216-845-11 METAL CHIP 100K 1/10W R791 1-216-845-11 METAL CHIP 100K 1/10W...
- Page 25 23/7/2013 XDR-S1 POWER TUNER Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 0 C906 1-126-768-11 ELECT 2200uF Q904 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR C907 1-104-665-11 ELECT 100uF Q906 8-729-028-99 TRANSISTOR DTC114YUA-T106 0 C908 1-126-382-11 ELECT 100uF Q908...
- Page 26 23/7/2013 XDR-S1 TUNER Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C524 1-162-927-11 CERAMIC CHIP 100PF MISCELLANEOUS C526 1-162-970-11 CERAMIC CHIP 0.01uF *************** C527 1-162-927-11 CERAMIC CHIP 100PF C528 1-162-927-11 CERAMIC CHIP 100PF 1-829-190-11 CABLE, FLEXIBLE FLAT (22 CORE)
- Page 27 23/7/2013 XDR-S1 MEMO World of free manuals...
- Page 28 23/7/2013 XDR-S1 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 2004.
