User Manual

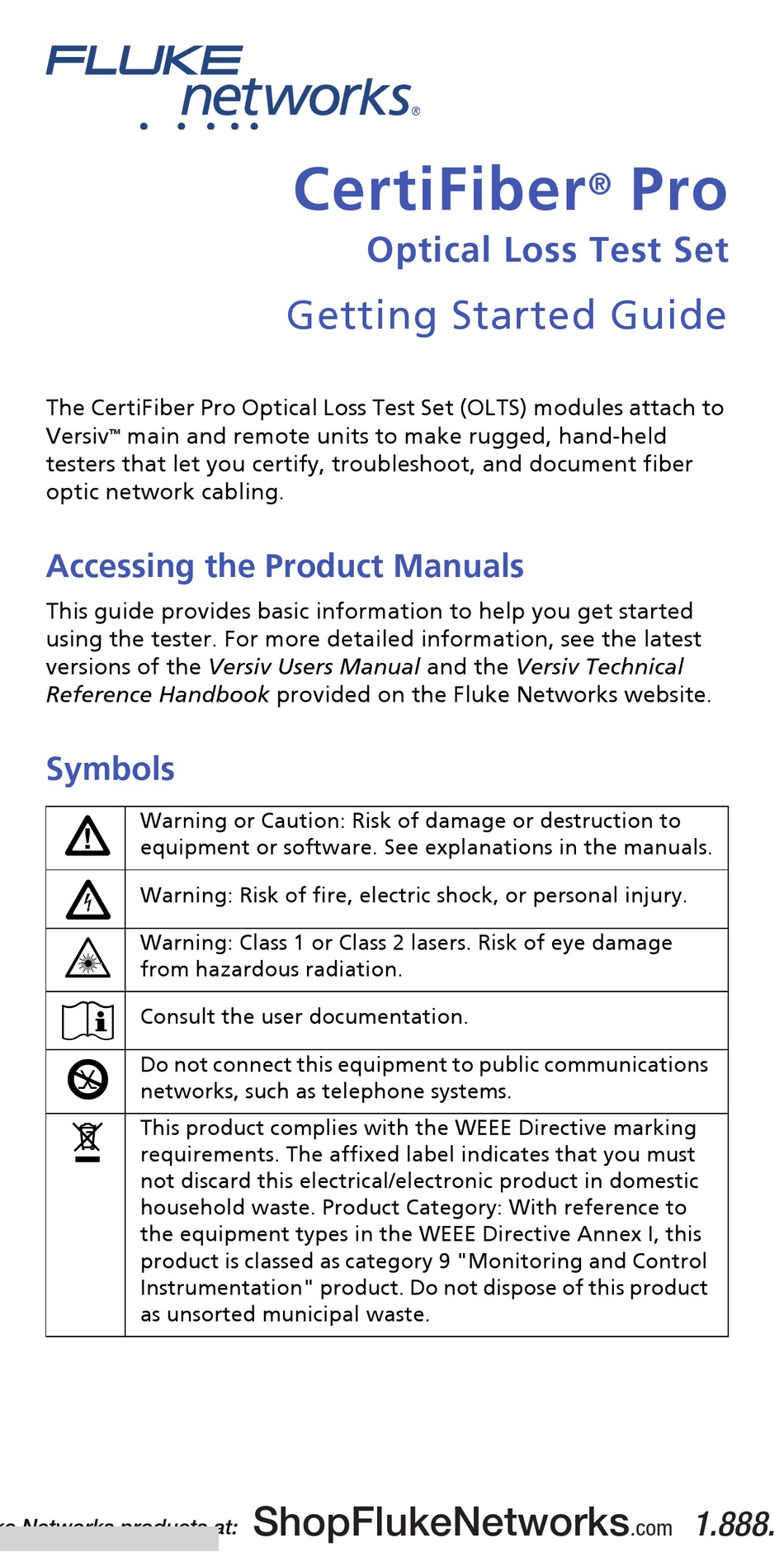

The CertiFiber Pro Optical Loss Test Set (OLTS) modules attach to
Versiv
main and remote units to make rugged, hand-held
™
testers that let you certify, troubleshoot, and document fiber
optic network cabling.
Accessing the Product Manuals
This guide provides basic information to help you get started
using the tester. For more detailed information, see the latest
versions of the Versiv Users Manual and the Versiv Technical
Reference Handbook provided on the Fluke Networks website.
Symbols
Warning or Caution: Risk of damage or destruction to
W
equipment or software. See explanations in the manuals.
X
Warning: Risk of fire, electric shock, or personal injury.
Warning: Class 1 or Class 2 lasers. Risk of eye damage
*
from hazardous radiation.
Consult the user documentation.
Do not connect this equipment to public communications
j
networks, such as telephone systems.
This product complies with the WEEE Directive marking
~
requirements. The affixed label indicates that you must
not discard this electrical/electronic product in domestic
household waste. Product Category: With reference to
the equipment types in the WEEE Directive Annex I, this
product is classed as category 9 "Monitoring and Control
Instrumentation" product. Do not dispose of this product
as unsorted municipal waste.
ke Networks products at:
CertiFiber
Optical Loss Test Set
Getting Started Guide
ShopFlukeNetworks
Pro
®
1.888.6
.com
Advertisement
Related Manuals for Fluke CertiFiber Pro
Summary of Contents for Fluke CertiFiber Pro
- Page 1 CertiFiber ® Optical Loss Test Set Getting Started Guide The CertiFiber Pro Optical Loss Test Set (OLTS) modules attach to Versiv main and remote units to make rugged, hand-held ™ testers that let you certify, troubleshoot, and document fiber optic network cabling.
- Page 2 • Do not modify the Product. • Use only replacement parts that are approved by Fluke Networks. • Do not touch voltages > 30 V AC rms, 42 V AC peak, or 60 V DC. •...
- Page 3 Have an approved technician repair the Product. • For Products with rechargeable batteries, use only AC adapters approved by Fluke Networks for use with the Product to supply power to the Product and charge the battery. Warning: Class 1 and Class 2...
-
Page 4: Connectors, Keys, And Leds
Caution To prevent damage to the Product or cables under test and to prevent data loss, read all safety information given in all documentation supplied with the Product. Connectors, Keys, and LEDs HGP00.EPS Figure 1. Connectors, Keys, and LEDs LCD display with touchscreen. ... - Page 5 Type A USB port: This USB host port lets you save test results on a USB flash drive connect the FI-1000 video probe to the tester, or connect a Wi-Fi adapter for access to Fluke Networks cloud services. Headset jack. ...
- Page 6 • Test Limit: Select General Fiber Optic. • Reference Method: Select 1 Jumper Reference. • No. of Connectors/Splices: These settings are only for test limits that use a calculated limit for loss. They are not applicable to the General Fiber Optic limit. 2-4 To save the settings, tap SAVE on the TEST SETUP screen.
- Page 7 3. Clean and Inspect All Connectors Caution Use proper cleaning procedures to clean all fiber connectors before every use. Neglecting this step or using improper procedures can cause unreliable test results and may permanently damage the connectors. See the Users Manual for instructions.
- Page 8 Caution Do not disconnect the outputs ( ) after you set the reference. When you use the EF-TRCs, DO NOT use other mandrels. Test reference cord Fiber link Test reference cord Reference TRC Verification Fiber Link Test * Use the EF-TRCs only with multimode modules. GPU122.EPS Figure 3.
-
Page 9: About Projects
6. Examine the Results The tester shows a summary of the test results for the fibers (Figure 4, left). To see more information (Figure 4, right), tap the window for a fiber. 7. Save the Results • If Auto Save is on, the tester uses the next two IDs to save the results for the two fibers. -
Page 10: General Specifications
About Fluke Networks Cloud Services With a Fluke Networks web account and a wired or wireless network connection, you can use the LinkWare ™ Live web application to store and manage projects in the cloud. Registration Registering your product with Fluke Networks gives you access to valuable information on product updates, troubleshooting tips, and other support services.
