Rough, Wall Mounted Single
Handle Lav Set

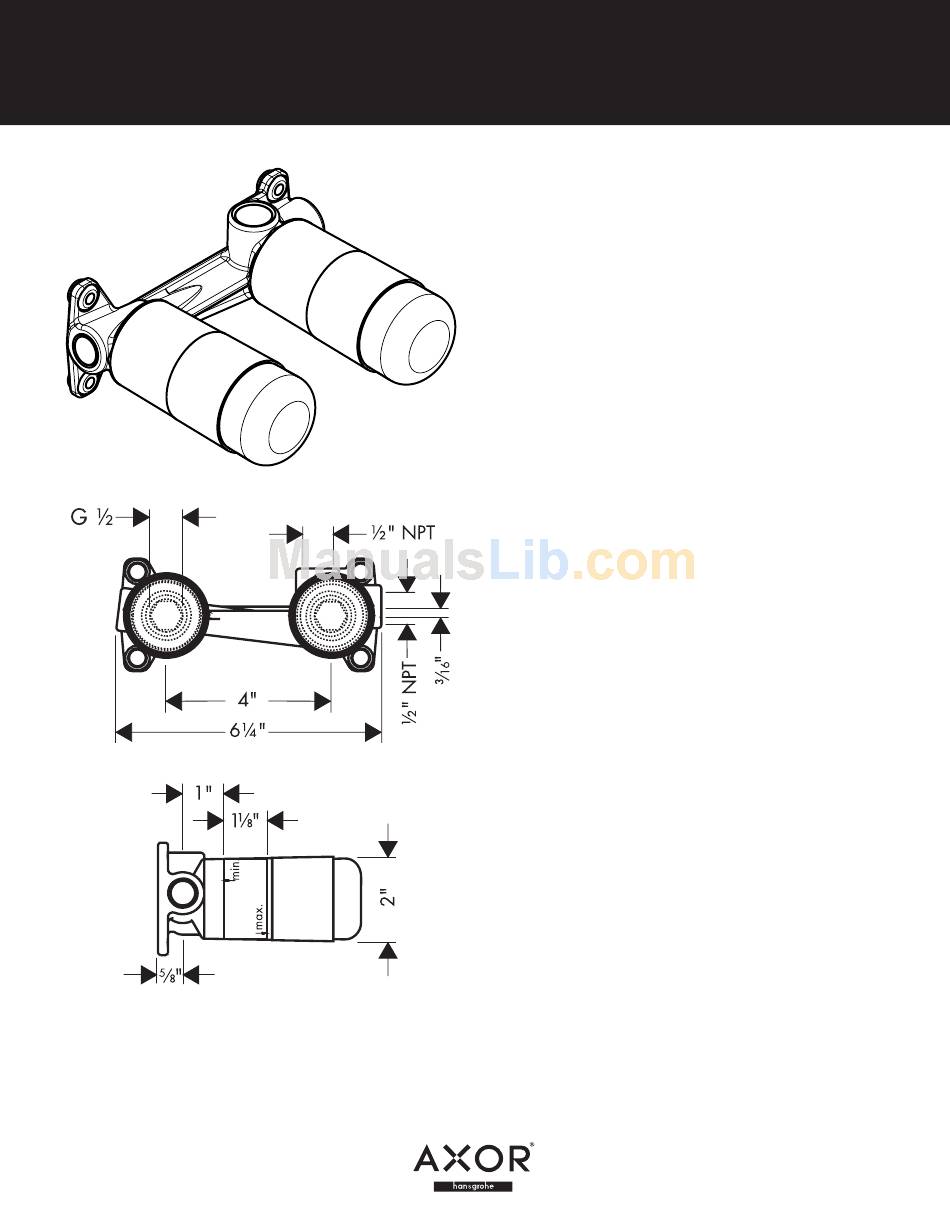

The measurements shown are for reference only.
Products and specifications shown are subject to
change without notice.
Specification sheet revised 5/2008
Product Features
•
½" NPT female inlets
•
Install valve either left or right
Required Accessories
Citterio M single handle lav set with baseplate
or
Citterio M single handle lav set
Optional Accessories
Grid drain
25 mm extension (deep rough-in) kit
Installation Notes
•
Valve for handle can be installed to the right or left -- must be
determined when rough is installed
34111181
34115XX1
34116XX1
06400XX0
34983000
