C. General Issues - continued
C.3. Identifying Models by PCB Layout or Belt Idler Assembly

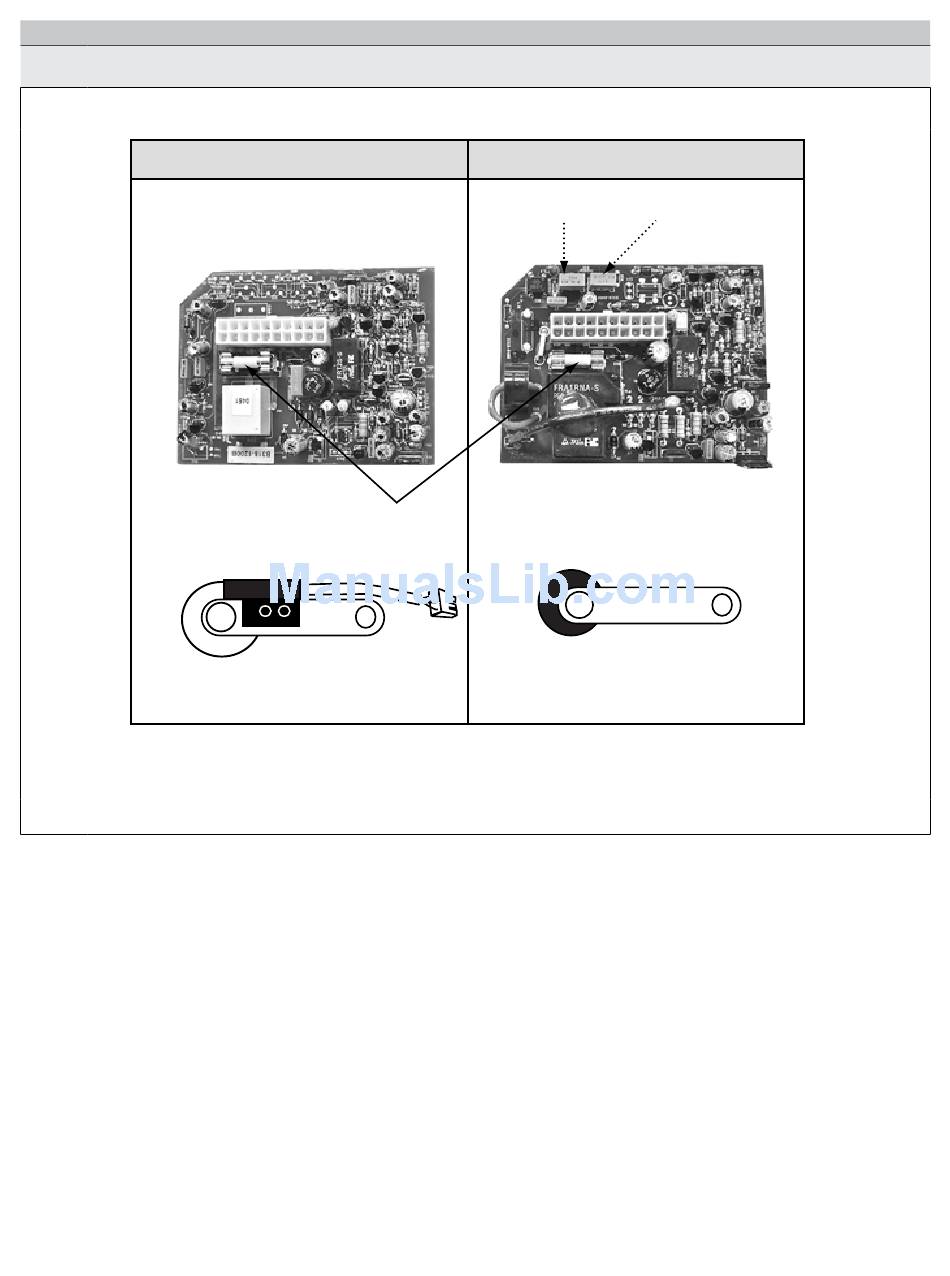

Figure B. PCB Layout and Belt Idler Assembly
.5 and .6 .4 and older
Brush Roll AFI
PC Board PC Board
Fuse
Belt Idler Assembly Belt Idler Assembly
NOTE: The PC Boards in the .5 and .6 do not have adjustment pods because they have a hall sensor on the belt idler assembly.
5
071807 I. Common Issues
