G. Replacing the Clean Air Motor
G. Step 1.
1. Remove the handle and the dust cover.
2. Place the vacuum face down on the bench.
3. Remove the base plate by removing the 2 (two) screws.
4. Remove the agitator/brushroll.
5. Remove the 5 (five) mounting screws on the underside of the nozzle base tray.
(See Figure C. Location of Nozzle Cover Screws)
G. Step 2.
Turn the vacuum over, depress handle release, and lay flat. Remove the nozzle cover.
G. Step 3.
WARNING - If the vacuum is not in the upright position before continuing
with the next step, injury may occur or vacuum may be damaged.
1. Set the vacuum in the upright position and remove the 2 (two) screws from the
spring assist bar.
2. Lay the vacuum flat. Remove the 3 (three) screws from the direct air motor inlet
duct cover, and 1 (one) screw from each of the wire strain relief (2 each).
3. Remove the belt.
4. Remove 3 (three) screws from the idler cover and spring.
5. Disconnect the light lead connector from the light board (disconnect the ground wire if necessary).
6. Remove the 2 (two) screws from each of the nozzle base tray pivot brackets.
G. Step 4.
1. Lift the dust compartment up out of the nozzle base tray assembly.
2. Remove the pivot bushings and the direct air motor inlet seal from the dust
compartment.
G. Step 5.
1. Remove the 4 (four) screws holding the motor cover on the dust compartment.
2. Lift up on the motor cover and set it aside.
G. Step 6.
To remove the clean air motor, grasp and lift it (located in the upper motor compartment) from the mount.
G. Step 7.
Note the orientation of the motor mount on the bracket end of the motor. The motor must be installed in the same manner with
the flat edge of the rubber mount against the flat walled structure on the dust compartment.
G. Step 8.
Attach the wires to the new motor as shown in Figure F. Clean Air Motor Wiring or Figure G. Ametek Clean Air Motor Wiring.
In the old style motor (Figure F. Clean Air Motor Wiring), notice that the blue wire should again be attached to the base of
the white wire connection with a zip tie.
G. Step 9.
Insert the motor into the motor compartment. (See Figure H. Clean Air Motor Placement)
G. Step 10.
Re-assemble the vacuum by continuing to section II. Maintenance Procedures, H. Installing the Motor Cover.
071807
11

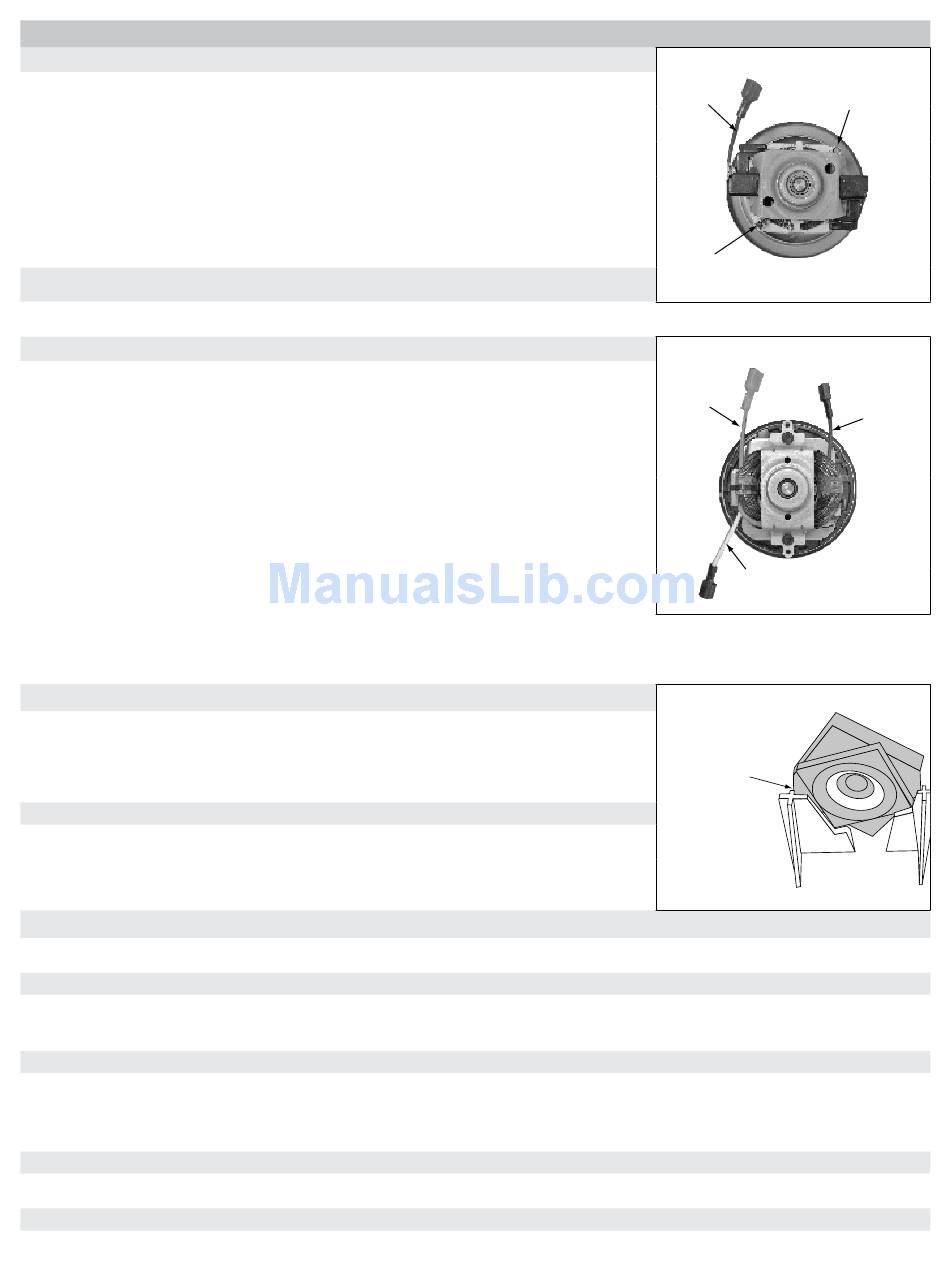

Figure F. Clean Air Motor Wiring
Blue Wire
White Wire
Black/White Wire
Figure G. Ametek Clean Air Motor Wiring
Yellow Wire
Black Wire
White Wire
Figure H. Clean Air Motor Placement
Side of
clean air motor
should line up
here in dust
compartment
II. Maintenance Procedures
