Summary of Contents for Bushnell 712060G

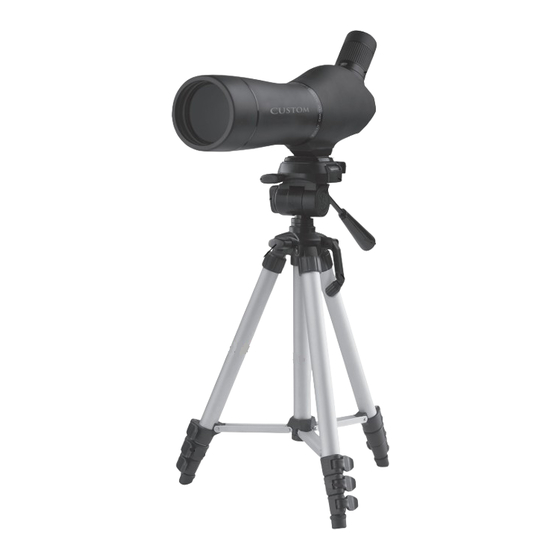

- Page 1 Spotting Scope inStruction Manual Model# : 712060g 02-14...
-
Page 2: Setup And Operation
SETUP and OPERATION Congratulations on the purchase of your Bushnell ® spotting scope, a versatile high-performance spotting scope offering a wide range of terrestrial viewing. Mounting tHe Scope anD Setting up tHe tripoD Remove the spotting scope from its case. Spread out the tripod legs and place the tripod on a level surface. - Page 3 OPERATION, CARE and CAUTIONS uSing tHe pan arM to MoVe tHe Scope To pan the scope side to side or up and down, first loosen the side and/or vertical lock. Then unlock the pan arm by rotating it counterclockwise and use it to move the scope as desired. To lock the scope in place, rotate the pan arm clockwise and tighten the side/vertical locks.
-
Page 4: Parts Guide
PARTS GUIDE Focus Knob Sunshade Zoom Ring Quick Mount Plate* Quick Mount Side Tilt Latch Lock Mounting Platform w/ bubble level Vertical Lock Pan Arm Elevation Height Lock Elevation Crank Handle Center Column Leg Lock Levers... -
Page 5: Specifications
SPECIFICATIONS Finish Rubber armor, black Lens Coating Fully coated Prism Type BK-7 Prism System Porro Objective Diameter 60 mm Exit Pupil (20x) 3.0 mm Exit Pupil (60x) 1.0 mm Field of View (20x) 115 ft @ 1000 yds Field of View (60x) 52 ft @ 1000 yds Eye Relief (20x) 16.5 mm... -
Page 6: Warranty
LIFETIME LIMITED WARRANTY We are so proud of our Bushnell® spotting scopes that their materials and workmanship are warranted to be free of defects for the life of the scope. In the event of a defect under this warranty, we will, at our option, repair or replace the product, provided that you return the product postage prepaid. - Page 7 NOTES...
- Page 8 ©2014 B.o.p. • BuSHnell, ®, tM DenoteS traDeMark oF B.o.p...
