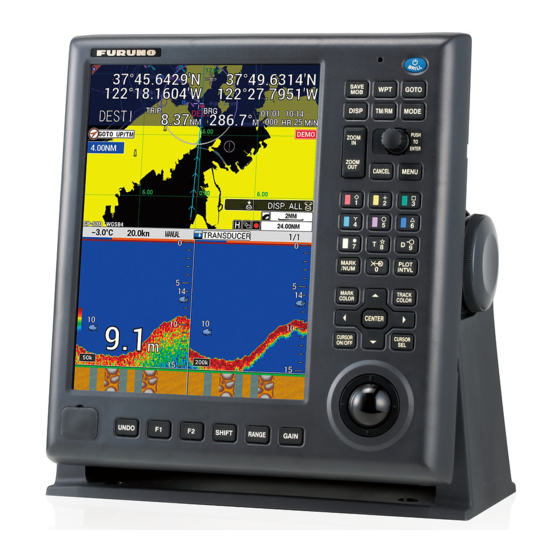

Gps/waas color chart plotter with fish finder
Hide thumbs Also See for GP-3700F:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
Installation Manual
GPS/WAAS COLOR CHART PLOTTER with FISH FINDER
GP-3700F
Model
(Product Name: GPS PLOTTER/SOUNDER)
SAFETY INSTRUCTIONS ................................................................................................ i
SYSTEM CONFIGURATION ........................................................................................... ii
EQUIPMENT LISTS........................................................................................................ iii
1. MOUNTING..............................................................................................................1-1
1.1 Display Unit........................................................................................................................1-1
1.2 Antenna Unit ......................................................................................................................1-5
1.3 Installation of Transducers (Option)...................................................................................1-6
1.4 Installation of Sensors (Option)........................................................................................1-16
1.5 Trackball Control Unit (Option) ........................................................................................1-17
1.6 External Monitor (Locally Supplied) .................................................................................1-19
2. WIRING....................................................................................................................2-1
2.1 How to Connect the Unit ....................................................................................................2-1
2.2 DIP Switch Settings .........................................................................................................2-11
2.3 Input/Output Data.............................................................................................................2-11
3. SETTING UP THE EQUIPMENT .............................................................................3-1
3.1 Language Setting...............................................................................................................3-2
3.2 Echo Sounder Setting ........................................................................................................3-3
3.3 Sensor and NMEA Equipment Setting...............................................................................3-4
3.4 Own Ship Information Setting ............................................................................................3-6
3.5 Event Switch Setting ..........................................................................................................3-8
3.6 Input/Output Port Setting ...................................................................................................3-9
3.7 DGPS Setting...................................................................................................................3-14
3.8 How to Control Charts......................................................................................................3-16
APPENDIX 1 JIS CABLE GUIDE .............................................................................AP-1
APPENDIX 3 INSTALLATION OF TEMPERATURE SENSORS .............................AP-6
PACKING LISTS ......................................................................................................... A-1
OUTLINE DRAWINGS ................................................................................................ D-1
INTERCONNECTION DIAGRAM ................................................................................ S-1
www.furuno.com
All brand and product names are trademarks, registered trademarks or service marks of their respective holders.

Advertisement

Table of Contents
loading

Related Manuals for Furuno GP-3700F

Summary of Contents for Furuno GP-3700F

  • Page 1: Table Of Contents

    Installation Manual GPS/WAAS COLOR CHART PLOTTER with FISH FINDER GP-3700F Model (Product Name: GPS PLOTTER/SOUNDER) SAFETY INSTRUCTIONS ....................i SYSTEM CONFIGURATION ................... ii EQUIPMENT LISTS......................iii 1. MOUNTING......................1-1 1.1 Display Unit........................1-1 1.2 Antenna Unit ........................1-5 1.3 Installation of Transducers (Option)...................1-6 1.4 Installation of Sensors (Option)..................1-16...
  • Page 2 7KH SDSHU XVHG LQ WKLV PDQXDO LV HOHPHQWDO FKORULQH IUHH )85812 $XWKRUL]HG 'LVWULEXWRU'HDOHU  $VKLKDUDFKR 1LVKLQRPL\D  -$3$1 $  $35  3ULQWHG LQ -DSDQ $OO ULJKWV UHVHUYHG %  129    3XE 1R ,0(% <27$ *3)           ...

  • Page 3: Safety Instructions

    The transducer can be damaged. the equipment is solely responsible for the proper installation of the equip- The transducer cable must handled ment. FURUNO will assume no carefully, following the guidelines responsibility for any damage associ- below. ated with improper installation.

  • Page 4: System Configuration

    Submerged or in continuous set to NAV mode, only one of either GP-3700 or contact with sea water GP-3700F can be connected. Other Units Protected from the weather : Turn the GP-3700F power off before connecting to the NMEA2000 network.

  • Page 5: Equipment Lists

    EQUIPMENT LISTS Standard Supply Name Type Code No. Remarks Display Unit GP-3700F With hard cover For GPS. Use when the display unit GPA-020S has no beacon receiver. Antenna Unit For DGPS. Use when the internal bea- GPA-021S con receiver is installed to the display unit.
  • Page 6 EQUIPMENT LISTS Name Type Code No. Remarks Transom mount, 600 W 525-5PWD plastic 10 m 50/200-1T Transducer 50B-6 10 m 1 kW 50B-6B 15 m 200B-5S 10 m Transom mount, 525T-PWD plastic Thru-hull mount, 525T-BSD metal Thru-hull mount, 525STID-MSD metal Transom mount, 525STID-PWD plastic...
  • Page 7 EQUIPMENT LISTS Name Type Code No. Remarks w/micro type con- M12-05BM+05BF-010 001-105-750-10 nectors, 1 m w/micro type con- M12-05BM+05BF-020 001-105-760-10 nectors, 2 m w/micro type con- M12-05BM+05BF-060 001-105-770-10 nectors, 6 m w/micro type con- M12-05BFFM-010 001-105-780-10 nector, 1 m w/micro type con- M12-05BFFM-020 001-105-790-10 nector, 2 m...
  • Page 8 EQUIPMENT LISTS This page is intentionally left blank.

  • Page 9: Mounting

    MOUNTING NOTICE Do not apply paint, anti-corrosive sealant or contact spray to coating or plastic parts of the equipment. Those items contain organic solvents that can damage coating and plastic parts, especially plastic connectors. Display Unit The display unit can be installed on a desktop, overhead or flush mounted in a console (option kit is required).
  • Page 10 1. MOUNTING 1.1.1 Desktop or overhead mounting 1. Unfasten the knob bolts and remove the display unit from the bracket. Knob bolt Bracket 2. Secure the bracket to the mounting location with four self-tapping screws (φ5×20, supplied). Self-tapping screw (Ø5×20, 4 pcs) 3.
  • Page 11 1. MOUNTING 3. Attach the F mount sponge TOP, F mount sponge SIDE and F mount sponge BOT, referring to the following figure. Note 1: Place the display unit face-down on a soft, clean surface to prevent dam- age to the LCD. Note 2: Take care not to cover the screw holes with the F mount sponges.
  • Page 12 1. MOUNTING 7. Attach the two flush mount fixtures to the unit, using flat washers (M8) and hexag- onal head slot bolts (M8×15). Use the knob bolt holes to fasten hexagonal head slot bolts. Flush mount fixture Flat washer (M8) Front fixing plate Hexagonal head slot bolt (M8×15)

  • Page 13: Antenna Unit

    1. MOUNTING Antenna Unit 1.2.1 Mounting Install the antenna unit referring to the "INSTALLATION PROCEDURE" at end of manual. Mounting considerations Select a mounting location, keeping in mind the following points: • Select a location out of the radar and inmarsat beams. Those beams will obstruct or prevent reception of the GPS satellite signal.

  • Page 14: Installation Of Transducers (Option)

    1. MOUNTING Installation of Transducers (Option) This equipment can use thru-hull, transom or inner hull mounted transducers. Select a transducer mounting type according to the ship’s type. The optional inner hull mounting kit (type: 22S0191) is required for inner hull mounting.
  • Page 15 1. MOUNTING 1.3.1 Thru-hull mount transducer The thru-hull mount transducer provides the best performance of all, since the transducer protrudes from the hull and the effect of air bubbles and turbulence near the hull skin is reduced. If your boat has a keel, the transducer should be at least 30 cm away from it.

  • Page 16: Transom Mount Transducer

    1. MOUNTING good contact with the water. Otherwise the time required for complete "saturation" will be lengthened and performance will be reduced. Note: DO NOT paint the transducer. Performance will be affected. 1.3.2 Transom mount transducer The transom mount transducer is very commonly employed, usually on relatively small outboard boats.

  • Page 17: Inside Hull Mount

    1. MOUNTING 4. Tape the location shown in the figure at step 3, then fill the gap between the wedge front of the transducer and transom with epoxy material to eliminate any air spaces. Bracket Transducer Hull 2 to 5° Epoxy material 5.
  • Page 18 1. MOUNTING Mounting location Select 2-3 locations considering the four points mentioned below. • Mount the transducer at a location 1/2 to 1/3 of the length of your boat from the stern. • The mounting location is between 15 to 50 cm from the centerline of the hull. •...
  • Page 19 1. MOUNTING 6. Select [TRANSMISSION OUTPUT]. 7. Press the appropriate numeric key to set the transmission power to a level of “02”. 8. Press the MENU key several times or press the DISP key to close the menu. 9. Press the DISP key several times to show the echo sounder display. Check if the bottom echo appears on the right side of the screen, in the display area.
  • Page 20 1. MOUNTING 1.3.4 Triducer Thru-hull mount triducer The optional triducer 525STID-MSD is designed for thru-hull mounting. See section 1.3.1 for how to install the 525STID-MSD. ø 79 133 2.00"-12 UN threads ø 51 Unit: mm Transom mount triducer Mounting location The optional transom mount triducer 525STID-PWD can be installed to the inboard or outboard boats.
  • Page 21 1. MOUNTING NOTICE NOTICE Do not mount the sensor in an area of Avoid mounting the sensor where the boat turbulence or bubbles: may be supported during trailering, launch- ing, hauling, and storage. - near water intake or discharge openings - behind strakes, struts, fittings, or hull irregularities - behind eroding paint (an indication of...
  • Page 22 1. MOUNTING 3. Using a 4 mm, #23, or 9/64” bit, drill three holes 22 mm (7/8”) deep at the locations indicated. To prevent drilling too deeply, wrap masking tape around the bit at 22 mm (7/8”) from the point. Fiberglass hull: Minimize surface cracking by chamfering the gelcoat.
  • Page 23 1. MOUNTING 9. Using the vertical adjustment space on the bracket slots, slide the sensor up or down to provide a projection of 3 mm Cable cover (1/8”). Tighten the screws. Cable 10. Fasten three self-tapping screws tightly. clamp 50 mm (2") Hull projection 3 mm (1/8") How to attach the sensor to the bracket 1.

  • Page 24: Installation Of Sensors (Option)

    1. MOUNTING 5. If a hole has been drilled in the transom, open the appropriate slot in the transom cable cover. Position the cover over the cable where it enters the hull. Mark the two mounting holes. 6. At each of the marked locations, use a 3 mm or 1/8” bit to drill a hole 10 mm (3/8”) deep.

  • Page 25: Trackball Control Unit (Option)

    1. MOUNTING Mounting procedure 1. Dry-dock the boat. Locknut 2. Make a hole of approx. 51 mm diame- ter in the mounting location. Face "notch" 3. Unfasten the locknut and remove the toward bow. sensor section. 4. Apply marine sealant to the flange of the sensor.
  • Page 26 1. MOUNTING 1.5.1 How to install the unit on a desktop 1. Secure the metal mounting plate to the bottom of the unit using two washer head screws (M4×10), both supplied with the trackball control unit, referring to the fol- lowing figure.

  • Page 27: External Monitor (Locally Supplied)

    1. MOUNTING 2. Set the unit to the mounting hole. 3. Attach the two FM fixture assemblies to the unit’s under side using four washer head screws (M4×10), both included in the kit. Console (Underside) FM fixture assembly Washer head screw (M4×10, 4 pcs) 4.
  • Page 28 1. MOUNTING Note 2: When the MU-150HD is used, the screen rotates 90° to the left as shown in the following figure. Install the monitor option as follows: 1. Unfasten four binding screws (M3×8) to remove the cable cover at the back of the display unit.
  • Page 29 1. MOUNTING 4. Secure the monitor option to the MAIN board, using the two screws removed at step 2. Connect the XHP-10 connector to J11. Monitor option Secure the monitor option here. 5. Reattach the cable cover with four binding screws (M3×8). Note: When attaching the cable cover, take care that the internal speaker cable is not pinched between the unit and the cable cover.
  • Page 30 1. MOUNTING This page is intentionally left blank. 1-22...

  • Page 31: Wiring

    WIRING How to Connect the Unit Connect the equipment, referring to the figure below and the interconnection diagram at the back this manual. Do not remove the waterproofing cap from unused connec- tors. Transducer cable (option) TNC-PS/PS-3D-L15M-R cable (supplied) XDR port ANT port To transducer, To antenna unit GPA-020S...
  • Page 32 2. WIRING 2.1.1 POWER port and grounding Connect the ship’s supply to the POWER port, using the supplied MJ-A3SPF0013- 035C cable (3.5 m, one end connector). Fasten the ground wire (locally supplied) to the ground terminal. The ground wire should be 1.25 sq or larger. Note: The fuse holder on the MJ-A3SPF0013-035C cable is not waterproof.
  • Page 33 2. WIRING How to extend the antenna cable Fabricate the end of the antenna cable and attach the coaxial connector, then connect the antenna cable as shown below. Antenna Unit GPA-020S GPA-021S 20 cm : Connector For CP20-02700, CP20-02710, CP20-02720 Adaptor cable assembly TNCP-NJ Antenna cable...
  • Page 34 2. WIRING How to attach the N-P-8DFB connector Outer sheath Inner sheath Armor Shield Remove outer sheath and armor by the dimensions shown left. Expose inner sheath and shield by the dimensions shown left. Cover with heat-shrink tubing and heat. Cut off insulator and core by 10 mm.
  • Page 35 2. WIRING 2.1.3 XDR port Connect the transducer to the XDR port on the rear of the display unit. If the optional speed/temperature sensor is connected, connect the transducer with the optional ca- ble assembly (type: 02S4147). Connect to XDR port on display unit. MJ-A10SPF MJ-A10SRMD MJ-A6SRMD...
  • Page 36 2. WIRING Fabricate the transducer cable to connect with the MB-1100, referring the following fig- ure. Vinyl sheath Crimp-on lug FV1.25-3 (LF) RED Shield Taping Shrink tubing Jumper block setting J2: No output reduction (default) J1: Output reduction Transducer 50 kHz 02P6348 50B-6/6B Green (shield)
  • Page 37 2. WIRING How to fabricate the LAN cable Fabricate the LAN cable (FR-FTPC-CY) as shown in the following figure. Wrap both edges of the armor with vinyl tape. Confirm that the shield of the cable touches to the shell of the modular plug. Cable jacket Armor Inner vinyl sheath...
  • Page 38 SC-30) Note 1: The CAN bus is NMEA2000 compliant. Therefore, CAN bus equipment is available for GP-3700F. Note 2: The NMEA2000 (CAN bus) network requires a dedicated power supply. Turn the NMEA2000 network power on before you turn this equipment on.
  • Page 39 2. WIRING How to fabricate the M12-05BFFM cable To connect the M12-05BFFM cable to FI-5002, fabricate the cable and attach the MC connector as shown in the following figure. • How to fabricate the cable • How to fabricate the cable Drain wire Drain wire Sheath...
  • Page 40 2. WIRING 1. Unfasten four binding screws (M3×8) to remove the cable cover at the back of the display unit. The internal speaker cable is connected between the MAIN board and cable cov- er. If the internal speaker cable prevents your work, disconnect the cable from the MAIN board.

  • Page 41: Dip Switch Settings

    2. WIRING terconnection diagram at the back this manual. Fabricate the MPYC-7 cable appropri- ately, according to the NH connector. USB1 port (J10) Connect the optional trackball control unit RCU-030 (w/2 m cable) to the USB1 port (J10). Note 1: There is USB2 port on the front on the display unit. Use the USB2 port to im- port/export data.
  • Page 42 GGA, RMC, GPS Buoy Location (CV, other than II, OM, LA, LC, and DE) RMA, GLL [CONNECTED DEVICE] is set to [AUTO PILOT] Sentence Data Furuno propri- Autopilot information etary sentence [CONNECTED DEVICE] is set to [RTCM] Sentence Data Receiver Interface Command...
  • Page 43 2. WIRING Output sentences [CONNECTED DEVICE] setting Sentence Data RADIO AUOT NORMAL RTCM EQUIPMENT BUOY PILOT Waypoint Arrival Alarm Autopilot Sen- tence B Bearing Origin to Destination Bearing & Dis- tance to Way- point-Great Circle Bearing & Dis- tance to Way- point - Rhumb Line Depth Below...
  • Page 44 Waypoint Loca- tion Cross-Track Er- ror, Measured Time and date Product informa- pidat* tion Sentence output drcmd* control command *: Furuno proprietary sentence 2.3.2 NMEA2000 format data Input PGN Data Remarks 059392 ISO Acknowledgement 059904 ISO Request 060928 ISO Address Claim...
  • Page 45 Vessel Heading 129538 GNSS Control Status 130577 Direction Data 130816 Self Test Report Proprietary PGN 130817 Furuno GNSS Control Group Function Proprietary PGN 130818 Heading & Attitude Sensor Control Status Proprietary PGN 130819 Motion Sensor Control Status Proprietary PGN 130820...
  • Page 46 • Receiving output requirement 129538 GNSS Control Status Receiving output requirement — 129539 GNSS DOPs 1000 Proprietary PGN Fast packet (For FURUNO Prod- 130822 Unit Division Code — uct) Receiving output requirement Proprietary PGN Fast packet (For FURUNO Prod- 130823 Browser Control Status —...

  • Page 47: Setting Up The Equipment

    SETTING UP THE EQUIPMENT This chapter shows you how to set up your system according to the equipment you have connected. Menu operation description The basic operations to use during the installation setup are as follows: 1. Press /BRILL key to turn the power on. 2.

  • Page 48: Language Setting

    3. SETTING UP THE EQUIPMENT Language Setting Select the language to use on your equipment as follows: 1. Press the MENU key to open the main menu. 2. Select [0. SYSTEM SETTING]. 0. SYSTEM SETTING 1. DISPLAY FORMAT 2. NAVIGATOR SETUP 3.

  • Page 49: Echo Sounder Setting

    3. SETTING UP THE EQUIPMENT Echo Sounder Setting 3.2.1 Transducer setting Setup the transducer connected to this equipment as follows: 1. Press the MENU key to open the main menu. 2. Select [0. SYSTEM SETTING]. 3. Select [8. ECHO SOUNDER INITIAL SETTING]. 0-8.

  • Page 50: Sensor And Nmea Equipment Setting

    3. SETTING UP THE EQUIPMENT 4. Select [1. ECHO SOUNDER SYSTEM SETTING]. The [ECHO SOUNDER SYSTEM SETTING] menu has two pages. When the page 2 is not displayed, press the 2 key (or ) to open page 2. ECHO SOUNDER SYSTEM SETTING SEL.
  • Page 51 3. SETTING UP THE EQUIPMENT • [NMEA FOR SOG]: Use the VTG, RMC or RMA sentence data from the NMEA0183 equipment. • [NMEA FOR STW]: Use the VHW sentence data from the NMEA0183 equip- ment. • [FISH FINDER]: Use the data from the triducer or speed/temperature sensor. 6.

  • Page 52: Own Ship Information Setting

    3. SETTING UP THE EQUIPMENT Priority Equipment Main heading sensor or autopilot set on the [SHOW (High priority) NMEA2000 DEVICES] menu (see section 3.6.3). Heading sensor or autopilot which is not set as main equip- ment on the [SHOW NMEA2000 DEVICES] menu. Heading sensor or autopilot connected to the NMEA1 port.
  • Page 53 3. SETTING UP THE EQUIPMENT 5. Press the appropriate numeric key to enter the ship’s length (“L” indicated in the figure shown to the right). 6. Select [SHIP’S WIDTH]. 7. Press the appropriate numeric key to enter the ship’s width (“W” indicated in the figure at step 5). 8.

  • Page 54: Event Switch Setting

    3. SETTING UP THE EQUIPMENT 6. Select [ANTENNA HEIGHT]. 7. Press the appropriate numeric key to enter the distance between the waterline and antenna position. 8. Press the DISP key to close the menu. Event Switch Setting When the event switch(es) is connected, assign the function for the event switch(es) as follows: 1.

  • Page 55: Input/Output Port Setting

    3. SETTING UP THE EQUIPMENT Input/Output Port Setting 3.6.1 Serial port setting When the NMEA 1 to NMEA 3 ports are used to connect external navigation equip- ment, set up the ports according to the equipment connected. Connected equipment setup 1.
  • Page 56 3. SETTING UP THE EQUIPMENT 8. Select the NMEA0183 version for output. Select the appropriate version according to the connected equipment. 9. Select [BAUD RATE]. 10. Select the output baud rate. 11. Select [ACCEPT TLL WITH NO.]. 12. Select [ON] to register the TLL mark or the waypoint when receiving the TLL data with the target number from the connected radar.
  • Page 57 3. SETTING UP THE EQUIPMENT 5. Select the sentence to be set. 6. Select [OUTPUT] or [NO OUTPUT]. 7. Repeat step 5 and step 6 to turn other sentences on or off. 8. Press the MENU key to go back to the [INPUT/OUTPUT PORT SETTING] menu. 9.
  • Page 58 3. SETTING UP THE EQUIPMENT 4. Select [9. SHOW NMEA2000 DEVICES]. SHOW NMEA2000 DEVICES SEL. PAGE _ 1/1 SA SET USE Model ID Serial Code SC-30 98765-43210 PG-700 12123434 LEN(ALL) : 14 ROTATE KNOB, ▲▼ : SELECT PUSH KNOB : SHOW DETAILS [MARK COLOR] : SET AS MAIN HEADING SENSOR [TRACK COLOR] : SET AS MAIN AUTO PILOT 5.
  • Page 59 12. Press the DISP key to close the menu. 3.6.5 FA-30 setting When a FURUNO FA-30 is connected to this equipment, you can set up the FA-30 from this equipment. 1. Press the MENU key to open the main menu.

  • Page 60: Dgps Setting

    3. SETTING UP THE EQUIPMENT DGPS Setting When the beacon receiver is installed in the display unit, do the DGPS setting as fol- lows: 3.7.1 DGPS station selection DGPS reference station can be searched for automatically (default) or manually. When the auto search takes more than five minutes to fix the DGPS position, use the manual search.
  • Page 61 3. SETTING UP THE EQUIPMENT 3.7.2 DGPS operation checking You can check the DGPS operation as follows: 1. Press the MENU key to open the main menu. 2. Select [8. PLOTTER DISPLAY SETTING]. 8. PLOTTER DISPLAY SETTING 1. SATELLITE STATUS/LOCATION 3.

  • Page 62: How To Control Charts

    3. SETTING UP THE EQUIPMENT How to Control Charts This section shows you how to install or update charts. 3.8.1 How to install charts Note: Save the chart data to a USB flash memory first. You do not need to create a folder.
  • Page 63 3. SETTING UP THE EQUIPMENT 3) Set the unlock code as described below. Rotate the ENTER knob to select a character, then push the knob to confirm selection. Repeat this step to select all other characters. Select [ENTER] then push the knob. The message "UNLOCK CODE VERIFIED."...
  • Page 64 3. SETTING UP THE EQUIPMENT This page is intentionally left blank. 3-18...

  • Page 65: Appendix 1 Jis Cable Guide

    EX: TTYCYSLA - 4 MPYC - 4 TTYCSLA-4 # of cores Designation type Designation type # of twisted pairs The following reference table lists gives the measurements of JIS cables commonly used with Furuno products: Cable Core Cable Core Diameter Diameter...
  • Page 66 APPENDIX 2 INSTALLATION FOR TRANSDUCER (THRU-HULL MOUNT) This appendix provides a copy of the installation instructions for AIRMAR transducer. 525T-LTD/12 and 525T-LTD/20 corresponds to B60, SS60-SLTD/12 and SS60-SLTD/20 to SS60. Thru-Hull Record the information found on the cable tag for future reference. Part No.

  • Page 67: Appendix 2 Installation For Transducer (Thru-Hull Mount

    APPENDIX 2 INSTALLATION FOR TRANSDUCER (THRU-HULL MOUNT) Mounting Location Identify Your Model CAUTION: Do not mount near water intake or discharge The model name is printed on the cable tag. openings or behind strakes, fittings, or other hull irregularities. Cored Fiberglass Hull Model Hull Outside Hull...
  • Page 68 APPENDIX 2 INSTALLATION FOR TRANSDUCER (THRU-HULL MOUNT) P19 housing B150M, B619, SS150M, or SS619 B60, B75H/M/L, or SS60 Wrench Wrench Housing flat (2) flat (2) Wrench Housing Housing flat (2) Hull nut Hull nut Hull nut Spacer Washer Washer Washer Hull Hull Hull...
  • Page 69 APPENDIX 2 INSTALLATION FOR TRANSDUCER (THRU-HULL MOUNT) 6. Sand and clean the area around the hole, inside and 9-12 mm outside, to ensure that the marine sealant will adhere (3/8-1/2") larger properly to the hull. If there is any petroleum residue inside than the hole Pour in the hull, remove it with either mild household detergent or...

  • Page 70: Appendix 3 Installation Of Temperature Sensors

    APPENDIX 3 INSTALLATION OF TEMPERATURE SENSORS The installation instructions in this chapter are copied from the manufacturer's (AIRMAR Technology Corporation) installation guide, which is included with your sensor. The model number mentioned within the documentation should be read as follows: T42 =>...
  • Page 71 APPENDIX 3 INSTALLATION OF TEMPERATURE SENSORS AP-7...
  • Page 72 APPENDIX 3 INSTALLATION OF TEMPERATURE SENSORS AP-8...
  • Page 80 17/May/2013 H.MAKI...
  • Page 81 12/Mar/2015 H.MAKI...
