Radio Shack 63-1124 Owner's Manual

6YQ"$GNN"9KTGNGUU"&QQT"%JKOG
63-1124
# #
"+/2146#06"
If an icon appears at the end of a paragraph,
go to the box on that page with the
corresponding icon for pertinent information.
Rý ° ° ° °
— Warning — Hint
. . . .
±
— Caution — Note
#
— Important
. .
"%#76+10"
• Use only fresh batteries of the required size
and type. Always remove old or weak
batteries. They can leak chemicals that
destroy electronic circuits
• Do not mix old and new batteries, different
types of batteries (standard, alkaline, or
rechargeable), or rechargeable batteries of
different capacities.

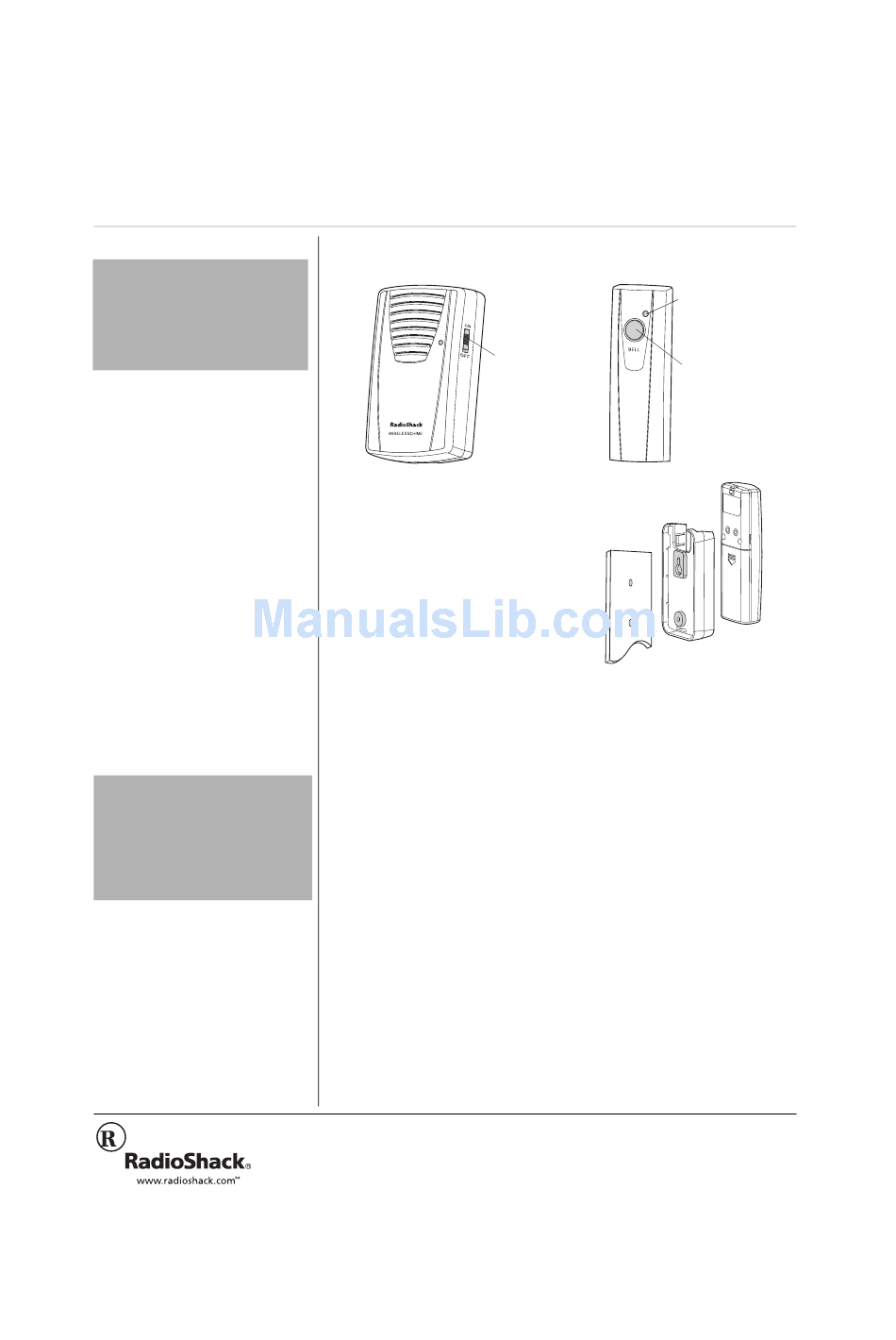

Receiver
Thank you for purchasing the RadioShack
Two Bell Wireless Door Chime. It works as a
doorbell, a remote pager, or an alert. You
can add an optional external sensor to have
a chime that alerts you when someone
walks into a room. The wireless door
chime's three-position channel switch
prevents other transmitters or radio devices
from sounding the chime.
/1706+0)"6*'"
4'%'+8'4
1 " "( "5
0 # .#6 74(#%'
Pull out the wire stand on the back of the
receiver and set it on a table or other flat
surface.
1 " "9
0 # #..
1. Drill one 3 / -inch diameter hole and
16
insert one of the supplied anchors.
2. Drive the supplied M3.5 screw into the
hole until the screw's head extends
about 1 / inch from the wall.
8
3. Align the keyhole slot on the bottom of
the receiver with the screw in the wall,
then slide it down to secure it.
/1706+0)"6*'"
64#05/+66'4
1. Remove the transmitter from the holder.
2. Use the holder as a template to mark
two screw holes on the wall.
3. Remove the holder from the mounting
3
surface and drill two / inch diameter
16
holes. Insert one of the supplied
anchors into each hole.
©
2002 RadioShack Corporation.
All Rights Reserved.
RadioShack and RadioShack.com are trademarks
used by RadioShack Corporation.
OWNER'S MANUAL — Please read before using this equipment.
Transmitter (two included)
Slide ON/OFF to
ON so that when
BELL is pressed
on one of the
transmitters, a
door chime
sounds.
4. Drive a screw through the holders.
5. The transmitter can be slid in and out of
the holder. To lock the transmitter in the
holder, fix it with a size M2.6 screw at
the bottom of the holder.
+056#..+0)"
$#66'4+'5"#0&"
5'.'%6+0)"%*#00'.5
The wireless door chime requires three AAA
size batteries in both transmitters and three
C size batteries in the receiver. For best
performance and longest life, we
recommend RadioShack alkaline batteries.
. . . .
+ " "6
0 6*' 4#05/+66'4
1. Slide the transmitter's battery
compartment door in the direction of the
arrow to remove it.
2. Use a small flat-blade screwdriver to
slide the switch inside the battery
compartment to the desired channel for
the transmitter.
Indicator — Lights
when BELL is
pressed.
BELL — Press
BELL to hear the
door chime.
