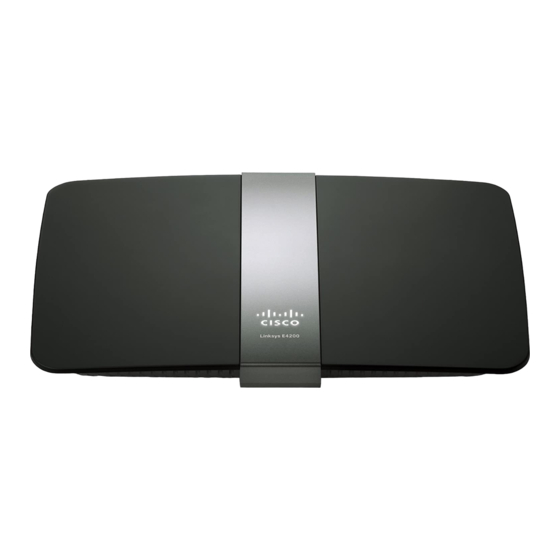

Cisco Linksys E4200 Supplemental Information

Maximum performance wireless-n router
Hide thumbs Also See for Linksys E4200:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Supplemental Information
Linksys E4200
Linksys E3000
Maximum Performance Wireless-N Router
High Performance Wireless-N Router

Advertisement

Table of Contents
loading

Related Manuals for Cisco Linksys E4200

Summary of Contents for Cisco Linksys E4200

  • Page 1 Supplemental Information Linksys E4200 Linksys E3000 Maximum Performance Wireless-N Router High Performance Wireless-N Router...

  • Page 2: Product Overview

    1 Product Overview The Simultaneous Dual-Band Wireless-N Router is really four devices in one box. First, there's the dual- band Wireless Access Point, which lets you connect to the network without wires. There's also a built-in 4-port full-duplex 10/100/1000 Switch to connect your wired-Ethernet devices together at up to gigabit speeds.

  • Page 3: System Features

    2 System Features Hardware 1 Gigabit WAN Ethernet port and 4 Gigabit LAN Ethernet Switch ports with auto-sensing MDIX Both 2.4GHz and 5GHz wireless work simultaneously Two spatial streams (2TX and 2RX) in 2.4GHz radio with High power PA Two spatial streams (2TX and 3RX) in 2.4GHz radio with High power PA Three spatial streams (3TX and 3RX) in 5GHz radio Push button for Wi-Fi protected setup USB2.0 port that supports up to 1000mA...

  • Page 4: Other Features

    Other features Auto Internet detection (DHCP, PPPoE and physical link) DDNS and Internet MAC address clone NTP (Network Time Protocol) that will synchronize with a Real-Time Server Static and Dynamic Routing (RIP1 and 2) IGMP Proxy v1 and v2 Parental Control Internet Access Control (QoS) Remote management and firmware upgrade Universal Plug and Play (UPnP)
  • Page 5 5GHz (DFS) US/CA: UNII-1, 2, 2 extended disabled 5600 – 5650, 3, and ISM Note: The number of available wireless channels may vary, depending on the regulations of each country. Operating Temp. 0ºC to 40ºC (32ºF to 104ºF) Storage Temp. -20ºC to 60DºC (-4ºF to 140ºF) Operation Requirement Operating Humidity 10% to 80% relative humidity and Non-Condensing Storage Humidity 5% to 90% Non-Condensing...

  • Page 6: Led Status

    Buttons, Ports and Label 3.2.1 Buttons Reset button to be recessed and located on the back of the unit Wi-Fi Protected Setup button to be recessed and located on the back of the unit 3.2.2 Ports One power port One Gigabit Internet port Four Gigabit switch Ethernet LAN ports One USB port Power switch...

  • Page 7: Power Supply Specification

    Design 3.6 Power Supply Specification Characteristic Specification Approved Vendor Leader and HongKwang Input voltage 100-240V Input Frequency Range 50-60Hz Output voltage Switching DC 12V/2 or 2.5A Barrel Jack 9.5mm CEC Compliant CEC Level 5 Energy Star Compliant RoHS Regional variations will be available, supporting 100V/60Hz, 120V/60Hz, and 240V/50Hz with connectors for North America, UK, continental Europe, and Australia.
  • Page 8 North America Model UL or cUL, CEC Level 5 European Model LVD or CB Japanese Model Singapore Model Australian Model C-tick, MPES China Model Requirement Will Comply Support drop-out of one AC cycle with impact to customer Non-volitle Memory Will not be corrupted do to power fluctuation Return to normal when AC voltage return to normal without user intervention Deploy a current limiting device that will not generate open flame in an...

  • Page 9: Warranty Information

    Your exclusive remedy and Cisco’s entire liability under DAMAGED DATA (INCLUDING, WITHOUT LIMITATION, ANY this limited warranty will be for Cisco, at its option, to (a) DATA ERASED BY CISCO IN CONNECTION WITH THE REPAIR replace the software media, or (b) refund the purchase OR REPLACEMENT OF A PRODUCT), REVENUE OR PROFIT, price of the software media.

  • Page 10: Technical Support

    RMA number and a copy of your dated To the extent permitted by law, Cisco excludes liability for proof of original purchase when returning your product. any lost or damaged data (including, without limitation,...

  • Page 11: Regulatory Information

    Linksys E4200 Regulatory Information Regulatory Information Safety Notices WARNING: Do not use this product near water, FCC Statement for example, in a wet basement or near a This device complies with Part 15 of the FCC Rules. swimming pool. Operation is subject to the following two conditions: (1)

  • Page 12: Wireless Disclaimer

    Linksys E4200 Regulatory Information Because high power radars are allocated as primary users Wireless Disclaimer (meaning they have priority) in 5250-5350 MHz and The maximum performance for wireless is derived from 5650-5850 MHz, these radars could cause interference IEEE Standard 802.11 specifications. Actual performance and/or damage to licensed exempt LAN devices.

  • Page 13: User Information For Consumer Products Covered By Eu Directive 2002/96/Ec On Waste Electric And Electronic Equipment (Weee)

    This document contains important information for users responsabilité de jeter ce matériel ainsi que tout autre matériel with regards to the proper disposal and recycling of Cisco électrique ou électronique par les moyens de collecte indiqués home networking products. Consumers are required to par le gouvernement et les pouvoirs publics des collectivités...

  • Page 14: End User License Agreement

    Agreement, you will be responsible for reimbursing Cisco Software or otherwise try to reduce the Software to for the amount of its loss, as well as any amount Cisco a human-readable form, except where such activity is incurs in lawyers’ fees, expenses and court costs.
  • Page 15 Your exclusive remedy and Cisco’s entire liability under OR AGENTS IN RELATION TO DEATH OR BODILY INJURIES this limited warranty will be for Cisco, at its option, to (a) CAUSED BY THEIR NEGLIGENCE. IN ADDITION, THESE replace the Software media, or (b) refund the purchase LIMITATIONS SHALL NOT APPLY TO (I) EITHER YOUR OR price of the Software media.
  • Page 16 Cisco for breach of the condition or warranty is limited to one or more of the following, at Cisco’s option: (a) in the case of goods, the replacement of the goods or the supply of...
  • Page 17 Cisco, the Cisco logo, and Linksys are trademarks or registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries. All other trademarks mentioned in this document or website are the property of their respective owners.
