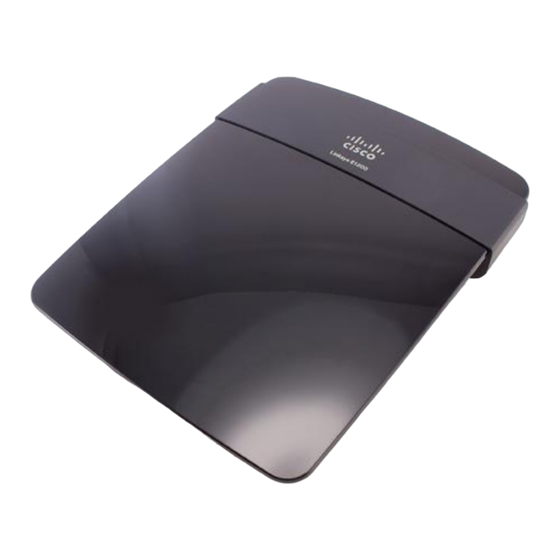

- Page 1 Setting up a Cisco Wireless Router E1200 © Satellite Solutions Worldwide Ltd 2013...
-
Page 2: Initial Setup
3. Power the E1200 and wait for approx 2min for the E1200 to start up. 4. Make sure you computer is set up for DHCP to receive an IP address from the E1200. (If you are not sure if the computer is setup for DHCP, please refer to manual “Checking if your computer is setup for DHCP”) - Page 3 2. Once open enter the following IP address in the URL bar; 192.168.1.1 and press enter. 3. Before connection to the setup pages can be established the E1200 will request a username and password. Both of these will be “admin” and click on the Log in Button.
- Page 4 6. Once the previous steps have been performed click on the Wireless Tab on the top of the page. Under Basic Wireless Settings select the Manual option. Select all options as shown in attached illustration. Network Name (SSID), will be the name of the wireless network. Once this step has been performed click on the save settings button on the bottom of the page.
- Page 5 Once the passphrase is entered click the generate button and a Key will be generated. Make a note of this key and passphrase for later. 9.2 Once the above settings have been completed the E1200 should be setup up for your wireless network.
- Page 6 11. Remove the Ethernet cable from port 1 on the E1200 and from the computer. Connect the Tooway Modem to the internet port of the E1200 via the provided Ethernet cable and connect to the E1200 Wirelessly. An internet connection should be established through the wireless connection after approx 30sec, if this does not happen automatically, please restart the Tooway modem and router.
