Siemens SIMATIC S7-1500 Manual

Siemens SIMATIC S7-1500 Manual

Digital output module dq 16x24vdc/0.5a ba (6es7522-1bh10-0aa0)
Hide thumbs Also See for SIMATIC S7-1500:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual, Manual

Advertisement

Table of Contents
loading

Related Manuals for Siemens SIMATIC S7-1500

Summary of Contents for Siemens SIMATIC S7-1500

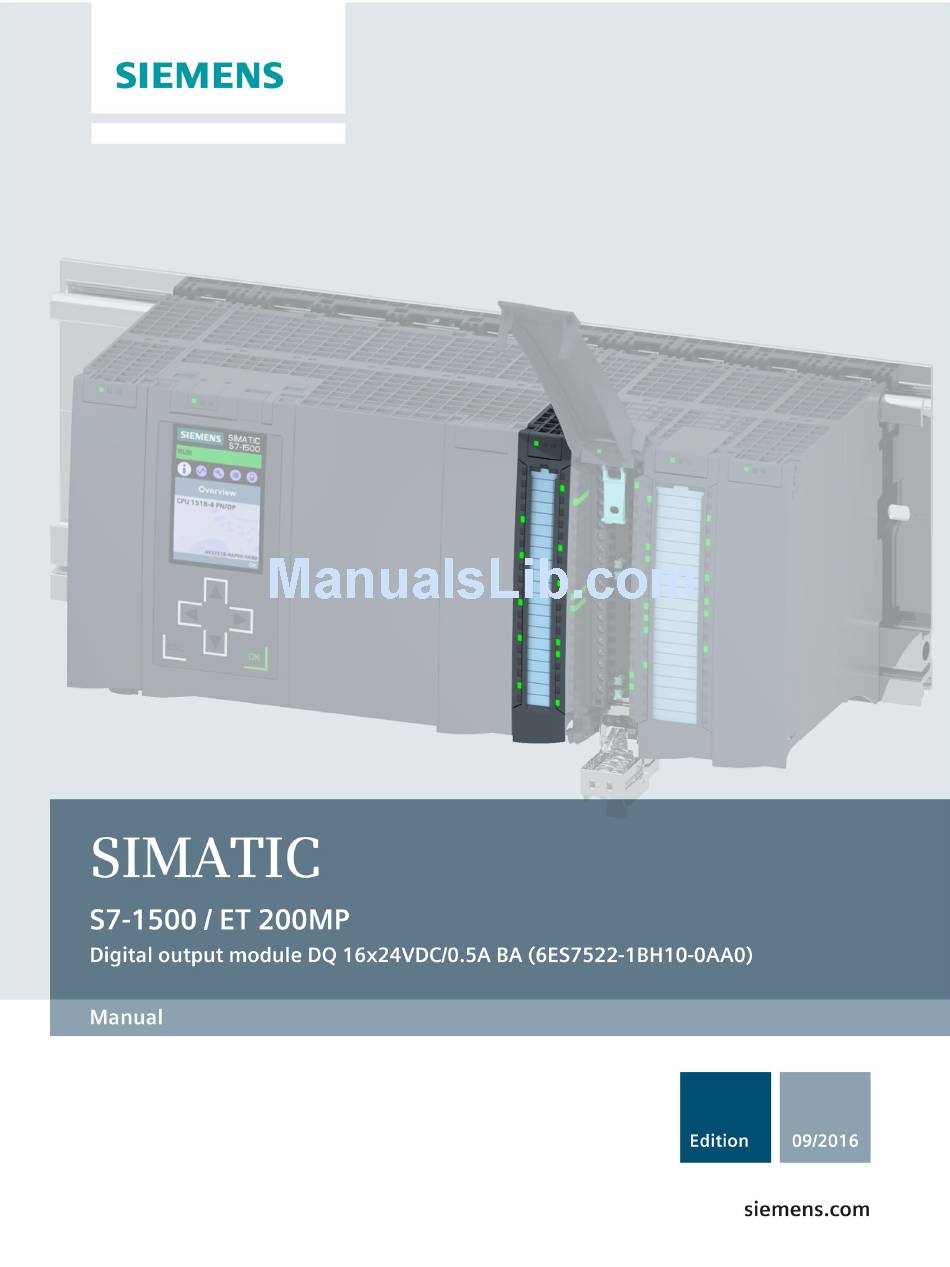

  • Page 2 ___________________ Preface ___________________ Documentation guide ___________________ SIMATIC Product overview ___________________ Wiring S7-1500/ET 200MP Digital output module ___________________ DQ 16x24VDC/0.5A BA Address space (6ES7522-1BH10-0AA0) ___________________ Diagnostics alarms Manual ___________________ Technical specifications ___________________ Dimensional drawing 09/2016 A5E32364017-AC...
  • Page 3 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 4: Preface

    Purpose of the documentation This manual supplements the system manual S7-1500/ET 200MP (https://support.industry.siemens.com/cs/ww/en/view/59191792). Functions that relate in general to the systems are described in this system manual. The information provided in this manual and in the system/function manuals supports you in commissioning the systems.
  • Page 5 In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial security concept. Siemens’ products and solutions only form one element of such a concept. Customer is responsible to prevent unauthorized access to its plants, systems, machines and networks.

  • Page 6: Table Of Contents

    Table of contents Preface ..............................4 Documentation guide ..........................7 Product overview ..........................11 Properties ..........................11 Wiring ..............................13 Address space ............................15 Address space ........................15 Diagnostics alarms ..........................19 Status and error displays ....................... 19 Technical specifications ........................21 Dimensional drawing ..........................

  • Page 7: Documentation Guide

    Documentation guide The documentation for the SIMATIC S7-1500 automation system, the CPU 1516pro-2 PN based on SIMATIC S7-1500 and the SIMATIC ET 200MP distributed I/O system is arranged into three areas. This arrangement enables you to access the specific content you require.
  • Page 8 You can download the product information free of charge from the Internet (https://support.industry.siemens.com/cs/us/en/view/68052815). Manual Collection S7-1500/ET 200MP The Manual Collection contains the complete documentation on the SIMATIC S7-1500 automation system and the ET 200MP distributed I/O system gathered together in one file. You can find the Manual Collection on the Internet (https://support.industry.siemens.com/cs/ww/en/view/86140384).
  • Page 9 ● Manuals, characteristics, operating manuals, certificates ● Product master data You can find "mySupport" - CAx data on the Internet (http://support.industry.siemens.com/my/ww/en/CAxOnline). Application examples The application examples support you with various tools and examples for solving your automation tasks. Solutions are shown in interplay with multiple components in the system - separated from the focus on individual products.
  • Page 10 You can find the SIMATIC Automation Tool on the Internet (https://support.industry.siemens.com/cs/ww/en/view/98161300). PRONETA With SIEMENS PRONETA (PROFINET network analysis), you analyze the PROFINET network during commissioning. PRONETA features two core functions: ● The topology overview independently scans PROFINET and all connected components.

  • Page 11: Product Overview

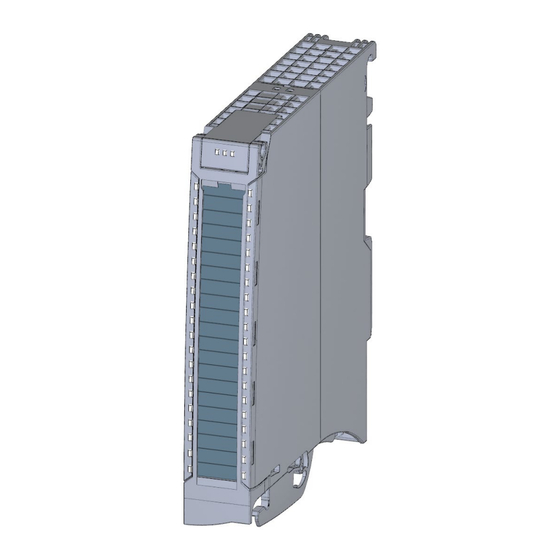

    Product overview Properties Article number 6ES7522-1BH10-0AA0 View of the module Figure 2-1 View of the DQ 16x24VDC/0.5A BA module Properties The digital module has the following technical properties: ● 16 digital outputs, electrically isolated in groups of 8 ● Rated output voltage 24 V DC ●...
  • Page 12 ● Front connector (push-in terminals) including cable tie ● Labeling strips ● U connector ● Universal front door You can find additional information on accessories in the system manual S7-1500/ET 200MP (https://support.industry.siemens.com/cs/ww/en/view/59191792). Digital output module DQ 16x24VDC/0.5A BA (6ES7522-1BH10-0AA0) Manual, 09/2016, A5E32364017-AC...

  • Page 13: Wiring

    This section contains the block diagram of the module and outlines various wiring options. You can find information on wiring the front connector, creating a cable shield, etc. in the Wiring section of the S7-1500/ET 200MP (https://support.industry.siemens.com/cs/ww/en/view/59191792) system manual. Digital output module DQ 16x24VDC/0.5A BA (6ES7522-1BH10-0AA0) Manual, 09/2016, A5E32364017-AC...
  • Page 14 Wiring Wiring and block diagram The example in the following figure shows the terminal assignment and the assignment of the channels to the addresses (output byte a and output byte b). ① Backplane bus interface Channel or channel status LED (green) Supply voltage 24 V DC Status display LED (green) Ground...

  • Page 15: Address Space

    Address space Address space The module can be configured in various ways in STEP 7. Depending on the configuration, additional/different addresses are assigned in the process image output/input. Configuration options of DQ 16x24VDC/0.5A BA You can configure the module with STEP 7 (TIA Portal) or with a GSD file. When you configure the module by means of the GSD file, the configurations are available under different short designations/module names.
  • Page 16 Address space 4.1 Address space Address space for configuration as 1 x 16-channel DQ 16x24VDC/0.5A BA The figure below shows the address space assignment for configuration as a 1 x 16-channel module. You can freely assign the start address for the module. The addresses of the channels are derived from the start address.
  • Page 17 Address space 4.1 Address space Value status (Quality Information, QI) The meaning of the value status depends on the submodule involved. For the 1st submodule (=basic submodule), the value status 1 indicates that the output value specified by the user program is actually output at the module terminal. Possible causes for value status = 0: ●...
  • Page 18 Reference You can find information on the Shared Input/Output (MSI/MSO) function in the section Module-Internal Shared Input/Output (MSI/MSO) of the PROFINET with STEP 7 V13 (https://support.industry.siemens.com/cs/ww/en/view/49948856) function manual. Digital output module DQ 16x24VDC/0.5A BA (6ES7522-1BH10-0AA0) Manual, 09/2016, A5E32364017-AC...

  • Page 19: Diagnostics Alarms

    Diagnostics alarms The module has no selectable diagnostics. Diagnostics alarms, for example, cannot be output with STEP 7 (TIA Portal). Status and error displays LED displays The figure below shows you the LED displays (status and error displays) of the DQ 16x24VDC/0.5A BA.
  • Page 20 Diagnostics alarms 5.1 Status and error displays Meaning of the LED displays The tables below explain the meaning of the status and error displays. LED RUN/ERROR Table 5- 1 RUN/ERROR status and error displays Meaning Remedy ERROR Voltage missing or too low at backplane bus. Switch on the CPU and/or the system pow- •...

  • Page 21: Technical Specifications

    Technical specifications Technical specifications of the DQ 16x24VDC/0.5A BA 6ES7522-1BH10-0AA0 General information Product type designation DQ 16x24VDC/0,5A BA Hardware functional status FS01 Firmware version V1.0.0 FW update possible • Product function I&M data Yes; I&M0 to I&M3 Engineering with STEP 7 TIA Portal can be configured/integrated V13 / V13 as of version STEP 7 can be configured/integrated as of version V5.5 SP3 / -...
  • Page 22 Technical specifications 6ES7522-1BH10-0AA0 Digital outputs Number of outputs Sourcing output Short-circuit protection Response threshold, typ. • Limitation of inductive shutdown voltage to L+ (-53 V) Control of a digital input Switching capacity of outputs With resistive load, max. 0.5 A With lamp load, max.
  • Page 23 Technical specifications 6ES7522-1BH10-0AA0 Interrupts Diagnostic interrupt Diagnostics alarms Monitoring of supply voltage Wire break Short-circuit Group error Diagnostics indicator LED RUN LED Yes; green LED ERROR LED Yes; red LED Monitoring of supply voltage (PWR LED) Yes; green LED Channel status display Yes;...
  • Page 24 Technical specifications Power reduction (derating) to aggregate current of outputs (per group) The following derating graphs show the loading capacity of the outputs in relation to the mounting position of the S71500 automation system/ET 200MP distributed I/O system and the ambient temperature. ①...

  • Page 25: Dimensional Drawing

    Dimensional drawing The dimensional drawing of the module on the mounting rail, as well as a dimensional drawing with open front cover, are provided in this appendix. Always observe the specified dimensions for installation in cabinets, control rooms, etc. Figure A-1 Dimensional drawing of the DQ 16x24VDC/0.5A BA module Digital output module DQ 16x24VDC/0.5A BA (6ES7522-1BH10-0AA0) Manual, 09/2016, A5E32364017-AC...
  • Page 26 Dimensional drawing Figure A-2 Dimensional drawing of the DQ 16x24VDC/0.5A BA module, side view with open front cover Digital output module DQ 16x24VDC/0.5A BA (6ES7522-1BH10-0AA0) Manual, 09/2016, A5E32364017-AC...
