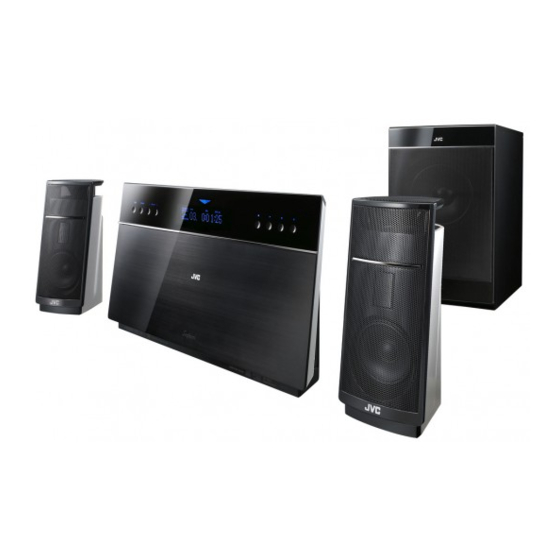

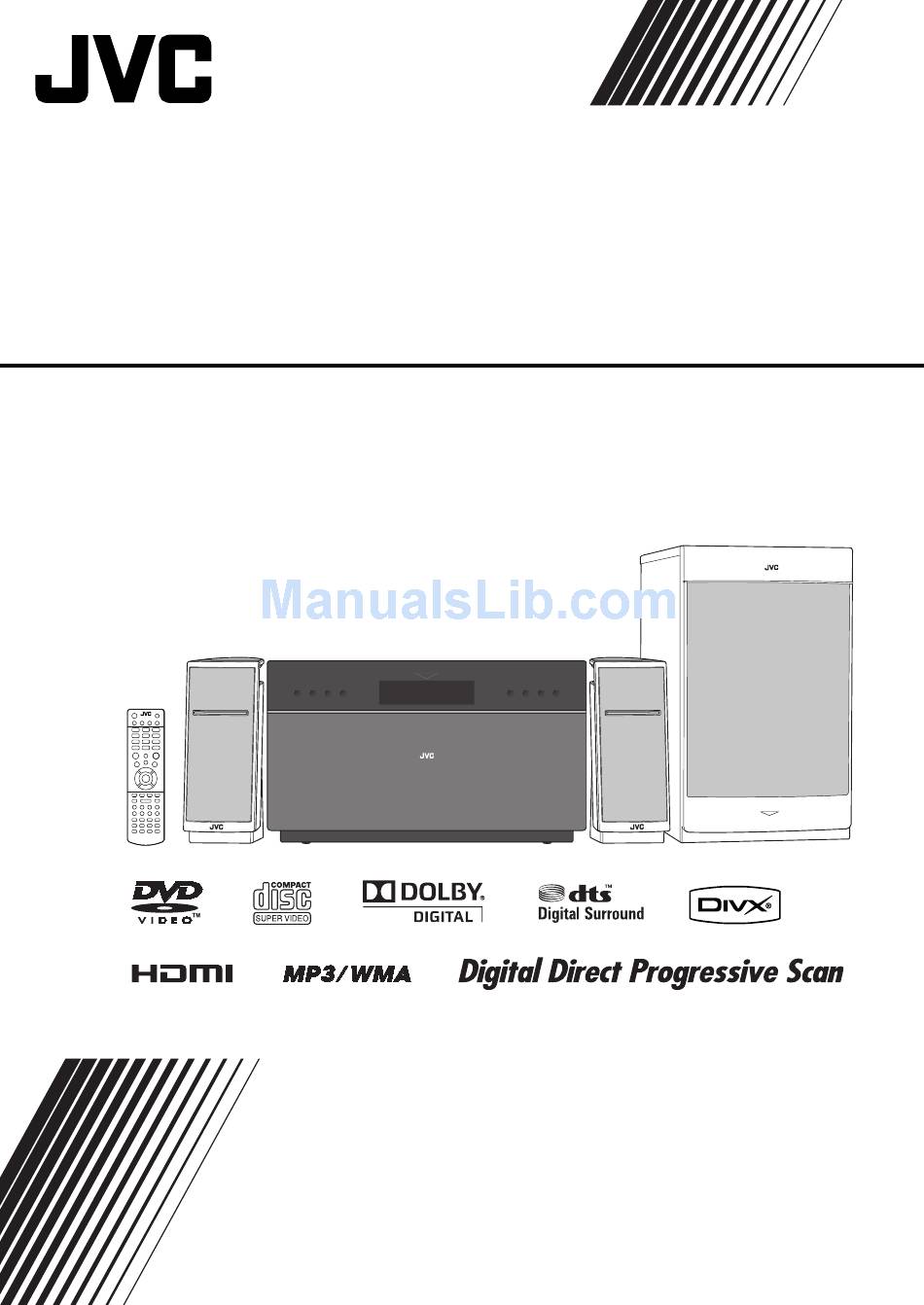

- Page 1 COMPACT COMPONENT SYSTEM NX-T10 —Consists of CA-NXT10, SP-NXT10F, and SP-NXT10W INSTRUCTIONS LVT2022-010A [UG]...
- Page 2 Warnings, Cautions and Others CAUTION CAUTION button in any position does not disconnect the mains • Do not block the ventilation openings or holes. line. (If the ventilation openings or holes are blocked by a Disconnect the mains plug of SP-NXT10W (subwoofer) to shut newspaper or cloth, etc., the heat may not be able to get the power off completely (the lamp on CA-NXT10 and...
- Page 3 Caution: Proper Ventilation To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows: 1. Front: No obstructions and open spacing. 2. Sides/Top/ Back: No obstructions should be placed in the areas shown by the dimensions below. 3.
-
Page 4: Introduction
Introduction Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the System. Precautions How to Read This Manual • Button and control operations are explained in the table Installation below. -
Page 5: Table Of Contents
Contents Introduction ............1 Advanced Disc/File Playback Operations ....27 Precautions ................1 Programming the Playing Order—Program Play ... 27 How to Read This Manual ..........1 Playing at Random—Random Play ........28 Playable Disc/File Types ............. 3 Playing Repeatedly .............. 28 Prohibiting Disc Ejection—Child Lock ...... -
Page 6: Playable Disc/File Types
Note on Region Code Playable Disc/File Types DVD players and DVDs have their own Region Code numbers. This System can play back only DVDs with an appropriate Region Code number. • “WRONG REGION” appears on the TV if DVD with another Region Code is loaded. -
Page 7: Preparations
Preparations Placing the Main Unit Vertically or Horizontally You can place the main unit either vertically or horizontally. Set the DISPLAY MODE switch according to the way the main unit is placed. • The position of the remote sensor also changes according to the setting of the DISPLAY MODE switch (see page 14). This manual explains operations using the illustrations of the main unit placed vertically as examples. -
Page 8: Connections
Connections INFO Do not connect the power cord until all other connections have been made. Detach the connector cover from the main unit and connect the cords by passing them through the hole of the connector cover. How to detach the connector cover When placing the main unit vertically When placing the main unit horizontally... - Page 9 ~ Blu-ray device or Digital Set Top Box Ÿ TV/monitor Connect an HDMI cable, a component video cord, or a HDMI cable Optical digital cord composite video cord. (not supplied) (not supplied) • After connecting a TV, select the appropriate video signal output according to the TV.
- Page 10 FM antenna System cable From the subwoofer Arrow FM antenna (supplied) System cable (supplied) Extend it so that you can obtain the best reception. Connect the system cable with the arrow side facing up. For better FM reception FM outdoor antenna (not supplied) After connections on the rear of the main unit have been completed, connect speakers and the system cable to the...
- Page 11 • The supplied speakers are manufactured exclusively Connect the speakers to the subwoofer by connecting the for use with the NX-T10 System. Do not connect colored connectors to the same color terminals on the rear the supplied speakers to any devices other than the of the subwoofer.
-
Page 12: Power Cord
Speaker layout System cable Arrow Main unit Subwoofer Left speaker Right speaker System cable (supplied) From the main unit Core filter (supplied) Connect the system cable with the arrow side facing up. How to attach the core filter Attach the provided core filter to the system cable, then the core filter reduces interference. - Page 13 • You can connect a USB mass storage class device such as a USB flash memory device, hard disk drive, multimedia card reader, etc. to this System. • You cannot connect a computer or JVC Everio camcorder to the USB MEMORY REC/PLAY terminal ( ) of the System.
-
Page 14: When Installing The Main Unit On A Wall
When Installing the Main Unit Example of attachment The procedure below is an example of how to attach the on a Wall main unit to a wall. It does not make any guarantee for safety while using the You can install the main unit on a wall. main unit on the wall. - Page 15 Attach the board to the wall. Hook the main unit onto the mounted screws and Anchor the board securely in at least four places to the slide the main unit down. supports inside the wall. Make sure that the main unit is installed securely. The diameter of the screws must be more than 4 mm •...
-
Page 16: Preparing The Remote Control
They will be damaged if the main unit should fall. • JVC bears no responsibility for any accidents or damage resulting from inadequate assembly or mounting, • If the range or effectiveness of the remote control insufficient strength of attachment, misuse or abuse, or decreases, replace both batteries. -
Page 17: Changing The Scanning Mode
When using the remote control Changing the Scanning Mode INFO Point the top of the remote control towards the remote Select the video signal output according to sensor as directly as possible. If you operate it from a Remote ONLY the type of your TV after connecting the main diagonal position, the operating range (approx. - Page 18 • This setting works only for the video signals played with Select the scanning mode. the built-in disc player on the main unit. Signals coming through the HDMI IN 1/2 terminal are not affected. When connecting the TV to the HDMI MONITOR OUT •...
-
Page 19: Display Indicators
Display Indicators The indications on the display tell you a lot of things while you are operating the System. Before operating the System, be familiar with when and how the indicators light on the display. 1 FM reception indicators p Microphone indicator •... -
Page 20: Daily Operations-Playback
Daily Operations— Playback In this manual, operations using the remote control Remote control are mainly explained; however, you can use the buttons and controls on the main unit if they have the same (or similar) name and marks. Turn on the power. Number buttons lamp on the main unit lights blue. -
Page 21: Listening To The Fm Radio
Remote For private listening If the FM reception is poor ONLY Connect a pair of headphones to the PHONES jack on the main unit (see page 10). The sound will no longer come out of the speakers. Be sure to turn down the volume before connecting or putting on the headphones. -
Page 22: Playing Back A Disc/Usb Mass Storage Class Device
Playing Back a Disc/USB Mass Storage Class If different types of playable files (audio/still Remote ONLY picture/moving picture) are recorded Device INFO Select a file type on the control screen (on the TV). • For still/moving picture files, it appears while playback is To insert a disc stopped. - Page 23 Remote Remote To select a folder/group To locate an item directly ONLY ONLY You can select a folder/group by using the control screen. You can select a title/chapter/track/file directly and start For details, see page 35. playback. • For DVD Video, you can select a title before starting Remote playback, while you can select a chapter after starting To select a chapter/track/file...
-
Page 24: Playing Back Other Equipment
For SVCD/VCD with PBC Playing Back Other Equipment When a disc menu appears on the TV, select an item on the You can listen to other equipment connected to the System. menu. Playback of the selected item starts. • Make sure to turn down the volume on the System to •... -
Page 25: Daily Operations-Sound & Other Adjustments
Daily Operations— Sound & Other Adjustments For other audio signals than 5.1 channels Remote control NATURAL The System reproduces the sound as follows: • Left channel sound: From the speaker units on the top and front of the left speaker •... -
Page 26: Changing The Display Brightness
To adjust the tone Changing the Display Remote You can adjust the bass and treble level from –10 to +10 (by Information ONLY 2 step). You can change the display information of Disc/File To adjust the bass playback. Elapsed playing time* Source Disc/file type Title and chapter... -
Page 27: Unique Video Disc/File Operations
Unique Video Disc/File Operations Remote Selecting the Audio Track ONLY INFO Remote control For DVD Video: While playing back a chapter/file containing several audio languages, you can select the language to listen to. For DVD-VR/SVCD/VCD: While playing back a track, you can select the audio channel to listen to. -
Page 28: Selecting The Subtitle Language
Selecting the Subtitle Language Selecting the View Angle Remote Remote ONLY ONLY For DVD Video: While playing back a chapter/file For DVD Video only: While playing back a chapter containing subtitles in different languages, you can select containing multi-view angles, you can view the same scene the subtitle language to display on the TV. -
Page 29: Special Effect Playback
Special Effect Playback To replay the previous scenes INFO Remote ONLY (One-Touch Replay) Still picture playback • This function is only used while playing DVD Video/ DVD-VR. To display the still picture: While playing... While playing..The playback position moves back about 10 seconds before the current position (only within the same title for DVD Video). -
Page 30: Advanced Disc/File Playback Operations
Advanced Disc/File Playback Operations Programming the Playing Order— Remote control Remote Program Play ONLY INFO You can arrange the playing order of the chapters/tracks/ files (up to 32) before you start playback. • Program Play cannot be used for DVD-VR and JPEG/ Number MPEG-1/MPEG-2/DivX files. -
Page 31: Playing At Random-Random Play
Playing at Random— Remote Playing Repeatedly INFO ONLY Remote Random Play ONLY For DVD Video You can play all chapters or tracks at random. While playing... • Random Play cannot be used for DVD-VR and JPEG/ MPEG-1/MPEG-2/DivX files. Before starting playback, activate Random Play. (Canceled) RANDOM:[ON] For CD/SVCD/VCD... -
Page 32: Prohibiting Disc Ejection-Child Lock
Prohibiting Disc Ejection— Remote A-B Repeat ONLY Main Unit ONLY You can repeat playback of a desired portion by specifying Child Lock the beginning (point A) and the ending (point B). You can lock the disc ejection so that no one can eject the •... -
Page 33: Recording Operations
Recording Operations INFO Before You Start Recording Remote control • It may be unlawful to record or play back copyrighted material without the consent of the copyright owner. • The recording level is not affected by the volume. • Surround mode effect, tone adjustment, and the speaker level settings (see pages 22, 23, and 42) do not affect recordings. -
Page 34: Recording From A Disc
• The System will automatically create the new group as Remote Recording from a Disc ONLY “JVC_A01.” If “JVC_A01” already exists or the number of tracks recorded for one group is more than 99 tracks, You can record tracks in digital recording from a CD onto “JVC_A02,”... -
Page 35: On-Screen Operations
On-Screen Operations To change the indication of the on-screen bar Remote control Each time you press and hold DISPLAY for more than 3 seconds, the on-screen bar changes as follows: Ex.: For DVD Video D V D 1 / 7 3 / 6 0 0 : 0 0 : 4 1 Elapsed playing time of the... - Page 36 Remote To select the position to play Enter the number. ONLY Using the on-screen bar, you can select the title/chapter/ track to play. You can also select a particular point by specifying the elapsed playback time from the beginning using the on-screen bar. •...
-
Page 37: Control Screen Operations
To select an item in the list and start playback Remote Control Screen Operations ONLY You can search for and play the desired items through the control screen for DVD-VR and MP3/WMA/JPEG/MPEG- 1/MPEG-2/DivX files. Control screen for DVD-VR The control screen is superimposed onto the TV screen when you call up Original Program (PG) or Play List (PL). - Page 38 Control screen for MP3/WMA/JPEG/MPEG-1/ MPEG-2/DivX files The control screen appears on the TV when the System [ S u m m e r ] R a i n . m p 3 detects MP3/WMA/JPEG/MPEG-1/MPEG-2/DivX files on the loaded disc or connected USB mass storage class device. 0 1 .
- Page 39 To move the highlight bar between group list and file list To start playback For JPEG: The selected file (still picture) is Moves the bar to the file list. displayed until you change it. Moves the bar to the group list. Slide-show playback starts.
-
Page 40: Karaoke Operations
Karaoke Operations INFO Basic Procedure for Karaoke Remote ONLY Remote control • Always set “MIC VOL” to “00” when connecting or disconnecting the microphone. • Do not keep the microphones connected while they are not in use. • Set “MIC SETUP” in the Setup menu to “AUTO” before starting Karaoke operations. - Page 41 Remote Selecting the Audio Channel ONLY The audio channel can be selected with most of the Karaoke discs. Each time you press AUDIO, the audio channel changes (see also page 24). Applying an Echo to Your Voice—Echo You can apply the echo effect to your voice and adjust the effect level.
-
Page 42: Setup Menu Operations
Setup Menu Operations INFO Setting Up Playback of Discs/ Remote control Remote USB Devices/HDMI Devices ONLY You can change the settings of playback of discs/USB mass storage class device/HDMI devices connected to HDMI IN 1 or 2 with the Setup menu on the TV. Number •... - Page 43 Menu Item Contents You can select the on-screen language. OSD LANGUAGE You can select the initial audio language AUDIO LANG “ENGLISH,” “CHINESE,” “SPANISH” for DVD Video. • For “SUBTITLE LANG,” you can SUBTITLE LANG You can select the initial subtitle deactivate the subtitle by selecting language for DVD Video.
-
Page 44: Setting Up The Sound And Hdmi Functions
Setting Up the Sound and To exit from the menu Press CANCEL. Remote HDMI Functions ONLY • The menu for settings of sound and HDMI functions You can change the settings of sound and HDMI functions goes off if any operation is not performed for about 5 with the menu on the display. - Page 45 • The CEC function may not work depending on the settings or status of the System. • When connecting the System to a TV with an HDMI cable for the first time after purchase, confirm that “JVC” (the initial screen) appears.
-
Page 46: Additional Information
Playing Back a Disc/USB Mass Storage Class Device: – MP3/WMA discs require a longer readout time than JVC bears no responsibility for any loss of data in the regular CDs. (It depends on the complexity of the USB mass storage class device while using this System. - Page 47 * <.mod> is an extension code used for the MPEG-2 files • When using the headphones: recorded by JVC Everio camcorders. The MPEG-2 files – The bass/treble adjustment affects the sound through with the <.mod> extension code cannot be played back the headphones.
-
Page 48: Maintenance
Setup Menu Operations (see pages 39 to 42) Maintenance General: To get the best performance of the System, keep your discs • If the upper and lower parts of the menu are cut off, and mechanism clean. adjust the picture size control of the TV. Handling Discs menu—TV TYPE: •... -
Page 49: Troubleshooting
Troubleshooting FM Radio Operations Hard to hear broadcasts because of noise. General ] Antenna connections are incorrect or loose. ] The FM antenna is not properly extended and Adjustments or settings are suddenly canceled before you finish. positioned. ] There is a time limit. Repeat the procedure again. Disc/USB Mass Storage Class Device Playback Operations are disabled. - Page 50 The HDMI CEC function does not work. The disc sound is discontinuous. ] The connected TV is not compatible with the HDMI ] The disc is scratched or dirty. CEC function. Refer to the operation manual of the TV. ] “OFF” is selected for the “HDMI CEC” setting. Select Audio language is different from the one you have selected as the initial audio language.
-
Page 51: Display Messages For Recording Operations
Display Messages for Recording Operations NO USB SCMS VLT (violation) • No USB device is connected or the connected USB device • You have tried to copy from a duplicated disc to the USB is not compatible with this System. device. -
Page 52: Specifications
HDMI Specifications DC 5 V 55 mA Output power: Main unit—CA-NXT10 (HDMI MONITOR OUT) Input/output General HDMI input: HDMI IN 1, HDMI IN 2 Mass (approx.): 2.3 kg (without the stand) HDMI output: HDMI MONITOR OUT Dimensions (approx.): • Placed vertically USB terminal: USB MEMORY REC/PLAY 1: 240 mm 2: 420 mm 3: 64 mm 4: 70 mm... - Page 53 Subwoofer—SP-NXT10W Supplied Accessories See page 1. Output power Front: 160 W (80 W + 80 W) at 4 Ω (10% Design and specifications are subject to change without THD) notice. Surround: 160 W (80 W + 80 W) at 4 Ω (10% THD) 200 W at 6 Ω...
- Page 54 • Manufactured under license from Dolby Laboratories. • HDMI, the HDMI logo and High-Definition Multimedia “Dolby”, “Pro Logic”, and the double-D symbol are Interface are trademarks or registered trademarks of trademarks of Dolby Laboratories. HDMI Licensing LLC. • Manufactured under license under U.S. Patent numbers: •...
-
Page 55: Parts Index
Parts Index Remote control Remote control Name Page 17, 19, 27, 28, 36 19, 26 – 28, 36 19, 27, 28, 31 1, ¡ 4, ¢ 20, 21, 27, 28 5, ∞, 2, 3 19 – 21, 23, 27, 33, 34, 36, 39, 41 ENTER 18, 20, 27, 33, 36, 39, 41 (One Touch Replay) - Page 56 © 2009 Victor Company of Japan, Limited 1209DUMMDWCDT...
