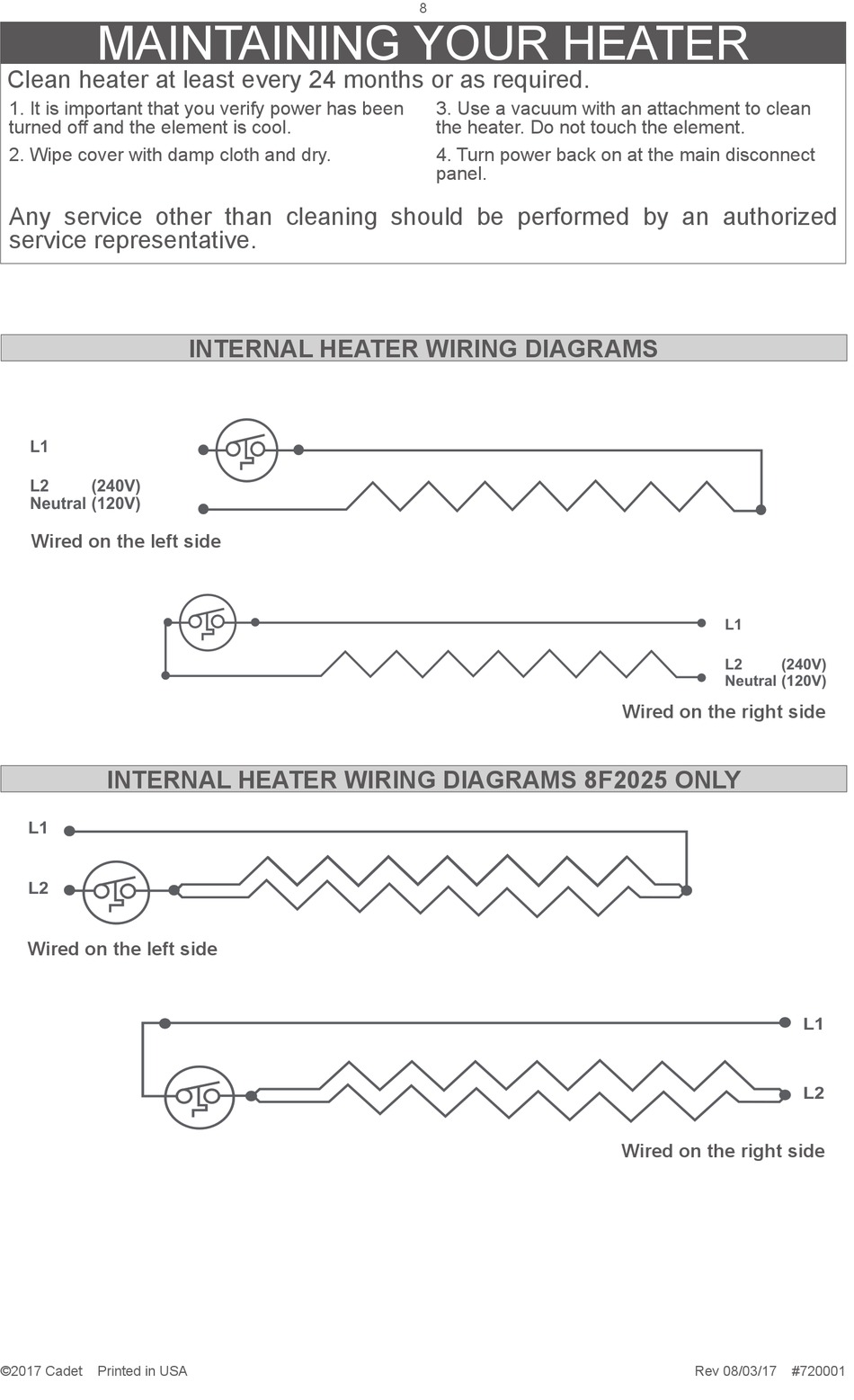

MAINTAINING YOUR HEATER

Clean heater at least every 24 months or as required.
1. It is important that you verify power has been
turned off and the element is cool.
2. Wipe cover with damp cloth and dry.
Any service other than cleaning should be performed by an authorized
service representative.
L1
L2 (240V)
Neutral (120V)
Wired on the left side
INTERNAL HEATER WIRING DIAGRAMS 8F2025 ONLY
L1
L1
L2
L2
Wired on the left side
©2017 Cadet Printed in USA
INTERNAL HEATER WIRING DIAGRAMS
All except 8F2025
Connected to Left
8F2025
Connected to Left
8
3. Use a vacuum with an attachment to clean
the heater. Do not touch the element.
4. Turn power back on at the main disconnect
panel.
All except 8F2025
Connected to Left
All except 8F2025
All except 8F2025
Connected to Right
Connected to Right
8F2025
Connected to Left
8F2025
Connected to Right
8F2025
Connected to Right
L1
L2 (240V)
Neutral (120V)
Wired on the right side
L1
L2
Wired on the right side
Rev 08/03/17
L1
L2 (
Neutral (
L1
L2
#720001
