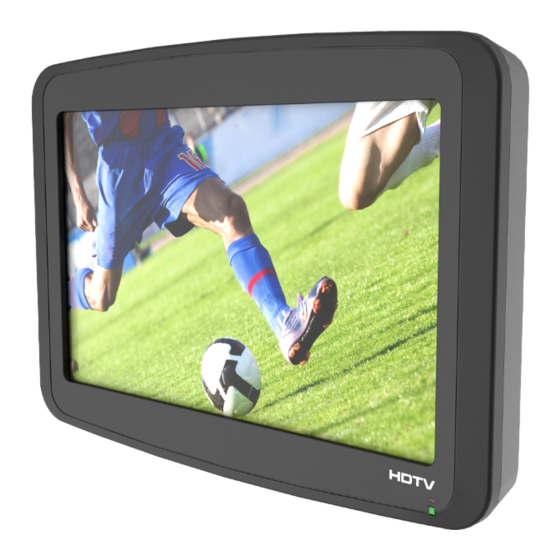

- Page 1 15 ATTACHABLE TV (PAL/DVB-T2/DVB-C) Owner's Manual ATV15-XXXD-02 1009362-0001 REV AA...
- Page 3 EUROPE, MIDDLE EAST, & AFRICA Spain Hong Kong (EMEA)Netherlands & Luxemburg Life Fitness IBERIA Life Fitness Asia Pacific LTD Life Fitness Atlantic BV C/Frederic Mompou 5,1º1ª 32/F, Global Trade Square Bijdorpplein 25-31 08960 Sant Just Desvern Barcelona 21 Wong Chuk Hang Road...
-
Page 4: Table Of Contents
Effects of State Laws....................39 Our Pledge To You....................39 © Copyright 2018, Life Fitness, a division of Brunswick Corporation. All Rights Reserved. Columbia Center III - 9525 West Bryn Mawr Ave., Rosemont, IL 60018 847-288-3300 www.lifefitness.com 1009362-0001 AA 2018 Page 4 of 39... -
Page 5: Getting Started Safety Instructions
Services. Do not use this product outdoors, near swimming pools or in areas of high humidity. Do not expose this product to dripping or splashing liquids. If the product should be exposed to liquid, contact Life Fitness Customer Support Services. -
Page 6: Media Connections
Description Antenna lead in wire Antenna discharge unit (NEC Section 810-20) Grounding conductors (NEC Section 810-21) Ground clamp Power service grounding electrode system (NEC Article 250,Part H) Ground clamp Electric service equipment Media Connections Description Connector Type Power In 12 Volt DC Power In Power Jack USB Input USB Type A... -
Page 7: Specifications Dvb-S2 Tv
Specifications DVB-S2 TV 15.6” Diagonal Wide Screen Format Aspect Ratio 16:9 Viewing Angle 160 degrees horizontal x 160 degrees vertical HD Channel Ready High-definition television will accept content up to 1080p Visible Screen Size 13.5" L x 7.6" H (34.4 cm L x 19.4 cm H) Brightness 250 nits (cd/m2) Display Color... -
Page 8: Select Input Source
Select Input Source 1. Press INPUT button to display the input source list. 2. Press or OK button to select the input source you want to. 3. Press OK button to enter the input source. 4. Press EXIT button to quit. First Time Installation Connect an RF cable from the “RF-IN”... - Page 9 Auto Tuning 1. First tuning ATV, press Menu and left arrow button to skip ATV tuning. 2. Second tuning DTV, press Menu and left arrow button to skip DTV tuning. Page 9 of 39...
-
Page 10: Operation
Quick Reference - TV Menu Access LIFE FITNESS recommends programming the 15” Attachable TV by using an IR TV Remote. The TV can also be programmed by using an attachable TV REMOTE if on the order (for Achieve consoles) and through an Integrity, Inspire, or Discover SI console. - Page 11 Use the CC key (6) as the ENTER function when selecting channels. Note: The Achieve™ console with Attachable TV includes the TV Remote. The Attachable TV System for new or previously purchased silver/gray commercial cardio machines includes the TV Remote. ON / OFF key RIGHT VOLUME key LEFT VOLUME key...
-
Page 12: Basic Functions - Ir Tv Remote
Basic Functions - IR TV Remote IR TV Remote Programming is easier with the optional IR TV Remote. Contact Life Fitness to order one or more IR TV Remote controls if desired. Power Press to turn TV On / Off. - Page 13 Input Press to cycle through the available input sources (TV, AV, S-Video, PC, HDMI). PMODE Press repeatedly to cycle through available picture modes (Dynamic, Standard, Mild, Personal). SMODE Press to cycle through available sound settings (Standard, Music, Movie, Sports, Personal). Sleep Select the amount of time in minutes before your TV automatically turns off.
-
Page 14: Tv Menu Access-Console Controls
Note: Put the used batteries into the recycle bin since it can negatively affect the environment. TV Menu Access-Console Controls Discover SI TV Controls Discover SI TV controls include: • TV Off • Channel Up / Down • Numeric Keypad •... -
Page 15: Configuration Channel Menu Atv/Dtv
3. Configuration Channel Menu ATV/DTV For Satellite Source see Channel Menu Satellite Source on page 18. ATV/DTV Source 1. Press MENU button to display the main menu. 2. Press button to select CHANNEL in the main menu. 3. Press button to select the option that you want to adjust in the CHANNEL menu. 4. - Page 16 ATV Manual Tuning Current CH Set the channel number. Select the color system Color System (Available System: AUTO,PAL , SECAM) Sound System Select the Sound system Adjust the frequency of the Fine-Tune channel finely. Search Start searching channel. DTV Manual Tuning 1.
- Page 17 Signal Information 1. Press button to select Signal Information. 2. Press the Enter button to see the detail information about the signal. Only available when there is signal in DTV. Page 17 of 39...
-
Page 18: Channel Menu Satellite Source
Channel Menu Satellite Source For ATV/DTV see Channel Menu ATV/DTV on page 15. Auto Tuning 1. Press button to select Auto Tuning, then press Enter / button to enter. 2. Press MENU button to call out the main menu. 3. Highlight Channel using navigation buttons and press OK to enter. 4. - Page 19 A. When the Satellite (Left) column is highlighted: 1. Press Yellow button to enter Add menu. Press RIGHT navigation button to enter rename Satellite Name page. Use navigation buttons to complete a new name. Press LEFT/RIGHT Longitude Direction navigation button to select desired option.
- Page 20 B. When the Transponder (Middle) column is highlighted: 1. Press Yellow button to enter Add menu. Press LEFT/RIGHT navigation button to move the cursor and press Frequency number buttons on remote control to input desired value. Press LEFT/RIGHT navigation button to move the cursor and press Symbol (ks/s) number buttons on remote...
- Page 21 C. When the Ku_ASTRA… (Right) column is highlighted: Press LEFT/RIGHT navigation button to enter submenu. LNB (Low Noise Block) Type Then use UP/DOWN navigation button to select desired option. Press LEFT/RIGHT navigation button to select desired LNB Power option. Press LEFT/RIGHT navigation button to select desired 22 kHz option.
-
Page 22: Picture Menu
Picture Menu 1. Press MENU button to display the main menu. 2. Press button to select PICTURE in the main menu. 3. Press button to select the option that you want to adjust in the PICTURE menu. 4. Press OK button to adjust. 5. - Page 23 Color Temp Change the overall color cast of the picture. 1. Press button to select Color Temperature , then press OK button to enter sub-menu. 2. Press button to select. (Available Picture mode: Cold, Normal, Warm). Cold Increase the blue tone for the white. Normal Default color temperature.
-
Page 24: Sound Menu
Sound Menu 1. Press MENU button to display the main menu. 2. Press button to select SOUND in the main menu. 3. Press button to select the option that you want to adjust in the SOUND menu. 4. Press Enter button to adjust. 5. -
Page 25: Time Menu
Time Menu 1. Press MENU button to display the main menu. 2. Press button to select TIME in the main menu. 3. Press button to select the option that you want to adjust in the TIME menu. 4. Press Enter button l to adjust. 5. - Page 26 Auto Standby 1. Press button to select Auto Standby, then press Enter button to enter sub-menu. 2. Press button to select. Tip: The remote control does not make any operation in the hypothesis time, it will close down automatically. If you do any operation, it will reset the time.
-
Page 27: Lock Menu
Lock Menu 1. Press MENU button to display the main menu. 2. Press button to select Lock in the main menu. 3. Press button to select the option that you want to adjust in the LOCK SYSTEM menu. 4. Press Enter / button to adjust. - Page 28 Channel Lock 1. Press button to select Channel Lock. 2. Press Enter button to enter sub-menu to select. 3. Press Green button lock or unlock the channel. Parental Guidance 1. Press button to select Parental Guidance. 2. Press Enter button to enter sub-menu to select the number of age which is suitable for your children. Key Lock 1.
-
Page 29: Hotel Mode
Hotel Mode 1. Press button on the remote control to select hotel mode in the Lock menu. 2. Press Enter button on the remote control to enter the sub-menu. 3. After finishing your adjustment, Press MENU button to save and return back to the previous menu. Hotel Mode Press button to select Hotel Mode, then press... -
Page 30: Setup Menu
Setup Menu 1. Press MENU button to display the main menu. 2. Press button to select SETUP in the main menu. 3. Press button to select the option that you want to adjust in the SETUP menu. 4. Press Enter button to adjust. 5. - Page 31 Audio Languages 1. Press button to select Audio Languages, then press Enter button to enter sub-menu. 2. Press button to select the primary of Audio Languages. 3. Press button to select the Audio Languages. Subtitle Language 1. Press button to select Subtitle Language, then press Enter button to enter sub-menu. 2.
- Page 32 Blue Screen Press button to select Blue Screen, then press Enter button to select On or Off. First Time Installation Press button to select First time Installation, then press Enter button to enter. Reset Press button to select Reset, then press Enter button to enter sub-menu. Software Update (USB) 1.
-
Page 33: Electronic Programming Guide (Epg)
Electronic Programming Guide (EPG) EPG Menu 1. Press EPG button on remote control to enter EPG menu page. 2. Press UP / DOWN navigation button to select preferred program. 3. Press LEFT / RIGHT navigation button to switch between left column and right column. When a program is highlighted (cursor moved to Right column): Press Red button to record program. - Page 34 Quick select When viewing an available channel, press OK button on remote control to enter Channel List menu page. 1. Press UP or DOWN navigation buttons to select preferred channel. 2. Press LEFT / RIGHT navigation buttons to select a channel group. 3.
-
Page 35: Maintenance And Troubleshooting
Troubleshooting If you are having a problem with your TV, try the suggestions below and on the next several pages. If the problem persists, contact Life Fitness Customer Support Services as outlined in the front of this manual. Problem Possible Solutions Reset the TV to factory Refer to the Setup Menu for instruction on how to access the Reset option. -
Page 36: Advanced Troubleshooting
Problem Possible Solutions Confirm the correct Air/Cable option is selected. Refer to the Channel Menu. Unable to switch to a Perform a Scan Channel or add a channel manually. Refer to the Channel Menu. particular Check the power supply for 12 volts DC and replace if faulty. Remove the remote and test it against a working unit. -
Page 37: Replace Headphone Jack On The Wired Remote Control
Returning Equipment to Life Fitness To return equipment to Life Fitness for any reason, you must contact Life Fitness to obtain a return maintenance authorization (RMA) number (see page one for contact information).When you request an RMA number, please explain why you are returning the equipment. -
Page 38: Warranty What Is Covered
Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, Life Fitness, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charge after the first year. -
Page 39: Changes In Warranty Not Authorized
Changes in Warranty Not Authorized No one is authorized to change, modify or extend the terms of this limited warranty. Effects of State Laws This warranty gives you specific legal rights, and you may have other rights which vary from state to state and country by country.
