3.3.2 WPA/WPA2: Setting the Network Key (Network Security)
This section gives instruction on how to correctly set up WPA/WPA2 security on your HP
PC. If you are currently running a WEP enabled device, return to Section 3.3.1, WEP:
Setting the Network Key (Network Security).
In order to set up your Network Key (WPA/WPA2 security feature) you will need to do the
following:
1. Open the Wireless Network Connection Properties dialog box:
•
Right click on the Wireless Networks icon in the system tray.
Select View Available Wireless Networks from the Wireless Networks
•
icon menu.
The Wireless Network Connection dialog box appears.
Select Change advanced settings on the left side of the dialog box.
•
The Wireless Network Connection Properties dialog box appears.
•
Select the Wireless Networks tab as shown in figure 12 below.

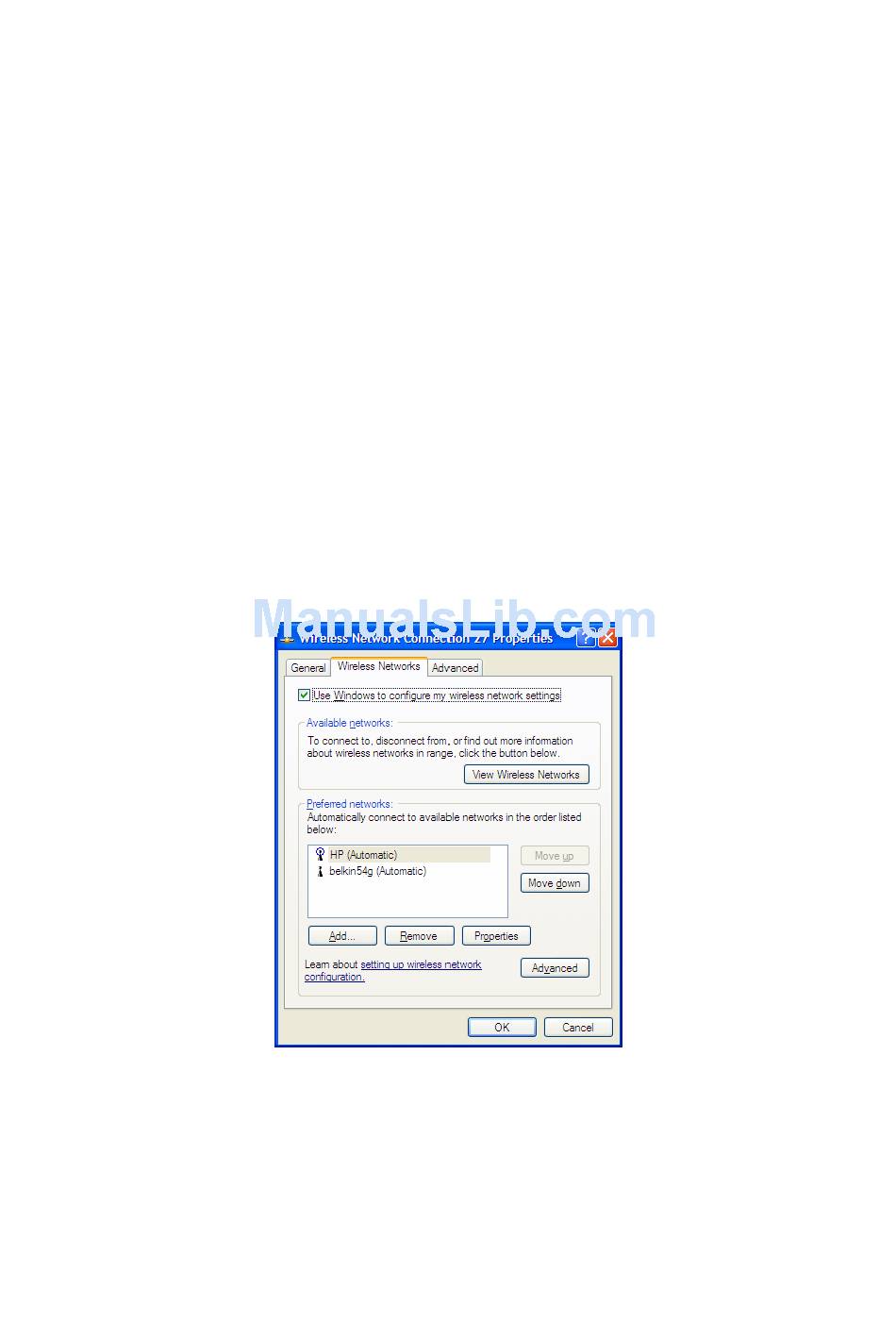

Figure 12: Wireless Network Connection Properties dialog box
3Com Wireless 11g PCI Adapter
16
