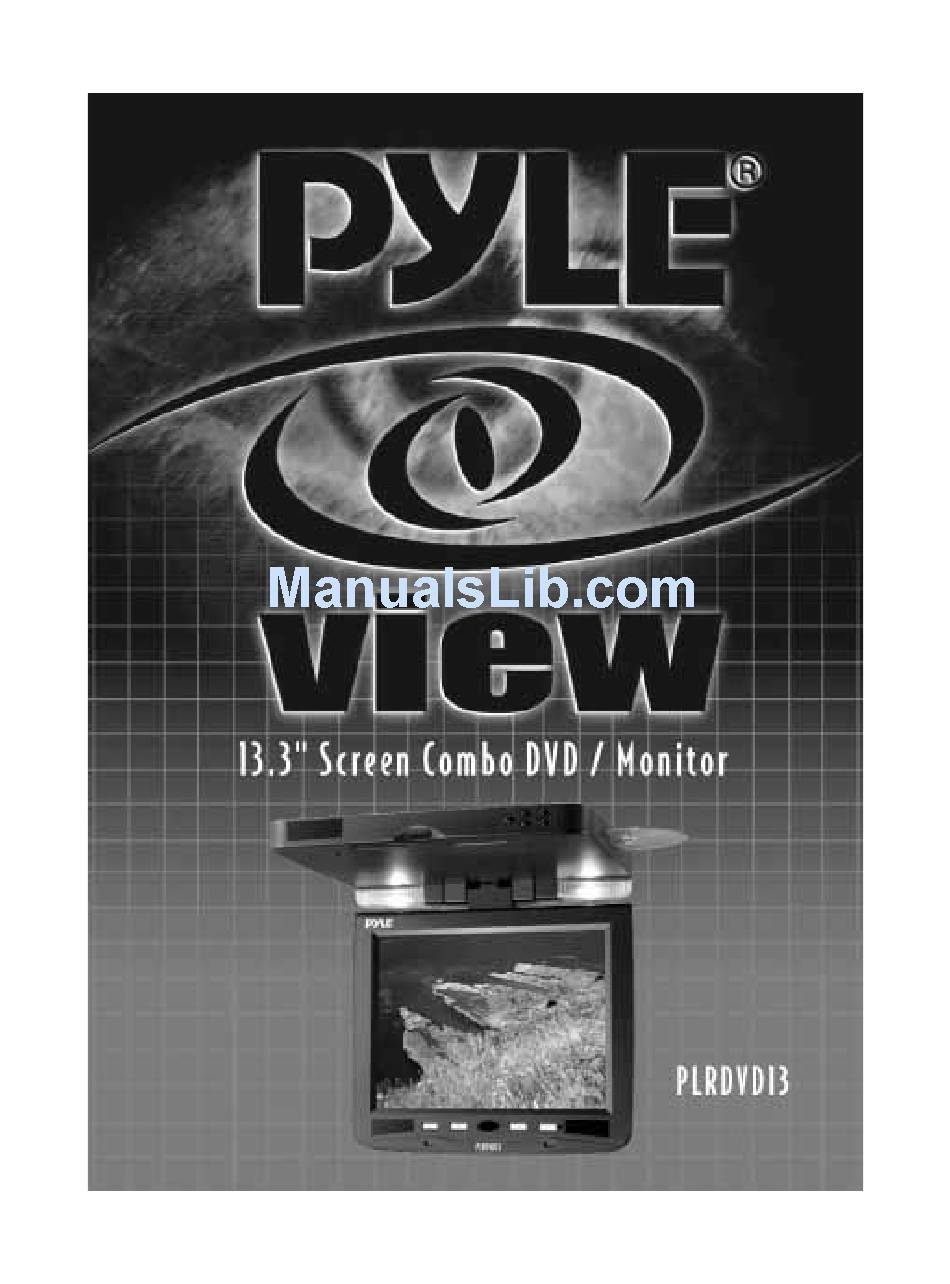

Pyle view VIEW PLRDVD13 User Manual

13.3" screen combo dvd/monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Pyle view VIEW PLRDVD13

Summary of Contents for Pyle view VIEW PLRDVD13

  • Page 2: Table Of Contents

    TABLE OF CONTENT 1. INSTALLATION GUIDE ... 3 2. FUNCTION KEYS ... 4 2.1 FRONT PANEL OF FUNCTIONS ... 4 3. MONITOR TROUBLE SHOOTING ... 4 3.1 NO POWER ... 4 3.2 REMOTE CONTROL NOT FUNCTIONING ... 4 3.3 NO DISPLAY OR PICTURE NOT CLEAR ... 4 4.

  • Page 3: Installation Guide

    1. INSTALLATION GUIDE 1. On a towel or soft cloth, gently place the monitor unit "facedown" on a stable work surface. 2. Locate the pigtail with the DIN connector. 3. Connect the DIN connector to the interface cable provided. 4. Connect the RED wire to the positive (+) battery terminal. 5.

  • Page 4: Function Keys

    2. FUNCTION KEYS 2.1 FRONT PANEL FUNCTIONS POWER: Press the "POWER" button once, To "POWER ON." Press it again, to "POWER OFF." MENU: Press MENU to Display OSD. Press again to exit MENU. When in sub-menus, press "MENU" to return to the main MENU UP/DN: Use to make item selection in OSD menus and to increase/decrease selection parameters.

  • Page 5: Specifications

    4. SPECIFICATIONS ITEM LCD Panel: 13.3" TFT Active Area 270.3 (W) x 202.8 (H) mm Resolution: 1024(H) x 3(RGB) x 768(V) Display Colors: 262,144 colors Pixel Pitch (mm): 0.264 (H) x 0.264 (V) mm Backlight Unit CCFL Side-light type (single lamp) Contrast Ratio: 200:1 Brightness (cd/m2):...

  • Page 6: Types Of Discs Playable On This Player

    6. TYPES OF DISCS PLAYABLE ON THIS PLAYER • The discs listed on the table below can be played on this player without an adapter. • The marks shown on the table below are indicated on the disc’s label, package or jacket Types of playable Diameter/playable sides...

  • Page 7: Part Names And Functions

    7. PART NAMES AND FUNCTIONS 7.1 Remote Control Unit - Main Buttons 1. POWER Button The power turns on or off when this button is pressed. 2. PRE/NEXT Buttons Use these buttons to search for the beginnings of tracks or chapters. 3.

  • Page 8: Remote Control Unit - Other Buttons

    7.2 Remote Control Unit - Other Buttons 1. AUDIO Button Press this button to switch the audio Languages. 2. ANGLE Button Press it to switch the picture’s angle. 3. SUBTITLE Button Press it to switch the program’s subtitle languages. 4. DISPLAY Button Press it to display the disc Information.

  • Page 9: Playback Functions

    8. PLAYBACK FUNCTIONS 8.1 Loading Disc 1. Push to insert the disc 2. If no power supply, the disc will not be inhaled. Notes: • Do not use cracked or warped discs. Doing so could result in damage. • Set the disc securely. Failure to set it securely could result in damage.

  • Page 10: Pausing The Disc

    8.6 PAUSING THE DISC Press the PLAY/PAUSE button. Press the button again to resume playback. 8.7 Scanning Forward And Backward During playback, press the PRE or NEXT button. Reverse direction. Forward direction 8.8 RETURNING TO THE PREVIOUS CHAPTER OR TRACK OF DVDS, VIDEO CDS AND CDS Press the PRE button during playback.

  • Page 11: Various Language And Subtitle Settings

    9. VARIOUS LANGUAGE AND SUBTITLE SETTINGS Disc Setting Select "DISC SETTING" by using the " press ‘ENTER’ button to enter the DISC SETTING menu. Disc Setting Menu 10. SETTING THE PARENTAL LOCK LEVEL Select ‘Parental’ by using " / " button on the remote control unit, then press ‘ENTER’...

  • Page 12: Other Setting

    11. OTHER SETTING 11.1 Video Setting Select "VIDEO SETTING" by using " press ENTER button to enter the VIDEO SETTING screen. Disc Setting Menu 11.2 Dolby Digital Setting a) Select "DOLBY DIGITAL" by using " then press ENTER to enter the submenu. b) Select the desired Dolby Digital Playing Mode either PCM or BITSTREAM to your choice by using "...

  • Page 13: Advanced Functions

    Display Setting Menu 12. ADVANCED FUNCTIONS 12.1 Search For A Specific Scene 1. Press the SEARCH button. 2. Press the numeral button to select specific time or title/chapter. 3. Press the ENTER button and playback starts from the specific chapter number. 12.2 Viewing In Slow Motion DVDs And Video CDs Press the SLOW button during playback, the playback speed becomes 1/2, 1/4, or 1/6 of the normal speed each time you press the SLOW button.

  • Page 14: Cautions On Use

    13. CAUTIONS ON USE 13.1 Handing When holding with both hands • Do not use damaged (cracked or warped) discs. • Do not scratch signal surface or let it get dirty. 13.2 Storing discs • Always place discs in their case and store them vertically.

  • Page 15: Trouble Shooting

    14. TROUBLE SHOOTING Picture Disturbed When A DVD Is Recoded On A VCR Or Played Via A VCR ➔ This player is compatible with analog copy protect type copy guard. Some discs include copy prohibit signals. Such discs will not play properly when played via a VCR when recoded on a VCR.
