PLD144
OWNER'S MANUAL
Audio/Video System
• Slot load DVD player
• ISO Din Mounting or portable
• Audio CD/CD-R/CD-RW/MP3 compatible
• DVD/CD resume function
• Default regional code
• On-screen user friendly setup menu
• Parental lock with security lock
• Full function remote control
• Included cigarette lighter plug
• Audio/Video out x 2
• Front AV In x 1
• Rear Audio/Video IN x 1
• Digital / S-Video Out
• DC In & DC out
• Digital LCD display
• Remote repeater for monitor to control DVD unit
www.pyleaudio.com
Advertisement
Table of Contents
Related Manuals for Pyle PLD144
Summary of Contents for Pyle PLD144

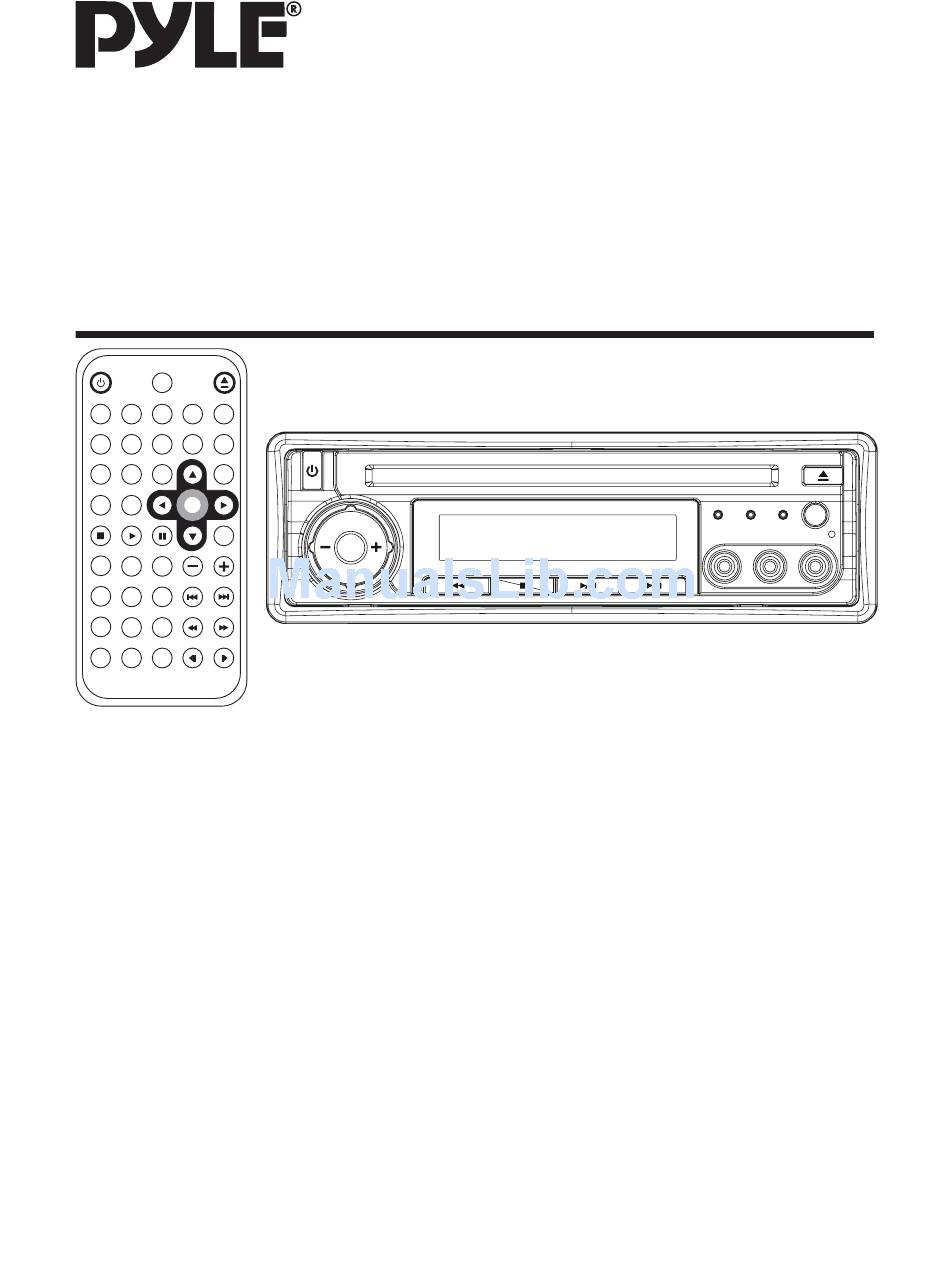

- Page 1 PLD144 OWNER’S MANUAL Audio/Video System • Slot load DVD player • ISO Din Mounting or portable • Audio CD/CD-R/CD-RW/MP3 compatible • DVD/CD resume function • Default regional code • On-screen user friendly setup menu • Parental lock with security lock •...
-
Page 2: Use This Product Safely
FEATURES Compatible with PAL DVD (Video CD) and NTSC DVD (Video CD) This player can play discs recorded in either PAL or NTSC format. • A single LSI chip now integrates all major DVD playback circuit functions including MPEG2 decoder, video D/A converter, and audio decoders. -
Page 3: Table Of Contents
CONTENTS Safety Information ...4 Disc Notes...5 The Player ...6 Front View...6 Back View ...7 Remote Control ...8 Location and Function of Keys...8 Preparing the Remote Control...10 General Operation ...11 Turn the unit On/Off ...11 Basic Play ...11 Mode Selection...11 Last Play Memory ...11 Menu function...12 Advanced Operation ...13 Repeat Play/Paragraph Repeat Play ...13... -
Page 4: Safety Information
SAFETY INFORMATION CAUTION: MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS MOBILE DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE MOBILE DVD PLAYER CORRECTLY AS INSTRUCTED. -
Page 5: Disc Notes
DISC NOTES Disc formats supported by this player 12 cm disc Video CD 12 cm disc 12 cm disc 12 cm disc Handling and Cleaning • Dirt, dust, scratches and warping disc will cause misoperation. • Do not place stickers or make scratches on discs. -
Page 6: The Player
THE PLAYER FRONT VIEW (POWER) (Eject Button) 3. MODE 4. AUDIO 5. Reset Button 6. Disc Slot (PLAY/PAUSE) (Stop) 9. PREVIOUS ( 10. NEXT ( 11. VOL- 12. VOL+ 13. AUDIO IN R 14. IR 15. Indicator Light for DVD 16. -
Page 7: Back View
THE PLAYER BACK VIEW 21. DC 12V INPUT Socket 22. DC 12V OUTPUT Socket 23. AV OUTPUT TYPE Switch 24. REMOTE Socket 25. AUDIO/VIDEO OUTPUT 1 26. AUDIO/VIDEO OUTPUT 2 27. AUDIO/VIDEO INPUT 2 AUDIO/VIDEO OUTPUT... -
Page 8: Remote Control
REMOTE CONTROL Location and Function of Keys... - Page 9 REMOTE CONTROL POWER Press POWER to turn the unit ON or OFF. MUTE Press to mute the sound. SUB-T Changing of the SUBTITLE language on multi-subtitle language DVD disc. ANGLE Changing of the view angle on multi-angle DVD disc. DISPLAY Display statistical disc information during playback.
-
Page 10: Preparing The Remote Control
REMOTE CONTROL Preparing the Remote Control Inserting the Batteries 1. Open the battery compartment cover. 2. Insert the new battery. Make sure that the positive and negative terminals of the battery are oriented as indicated. 3. Close the cover. • Battery: a button cell lithium battery (CR2025 3V) Note: There’s also another type Remote control... -
Page 11: General Operation
GENERAL OPERATION TURNING THE UNIT ON/OFF Turning on the Player After all connections are completed correctly, Press power button on the front panel to turn on the power. When the unit is on, it will search the disc automatically. If there is a disc in the disc slot, the unit will start playback automatically. -
Page 12: Mode Selection
GENERAL OPERATION DVD VIDEO MENU PLAY When playing a DVD disc in the DVD player: 1) The disc will be played automatically and stop at menu picture. 2) Use cursor buttons on the remote control to move between the highlight bars in the menu. 3) Press OK button on the remote control to confirm the selected item. -
Page 13: Advanced Operation
ADVANCED OPERATION REPEAT PLAY/ PARAGRAPH REPEAT PLAY Repeat play: When you want to repeat playing the whole disc or a track or a chapter in the disc. 1) Press REPEAT button repeatedly to select different repeat modes. 2) For different kinds of disc, pressing REPEAT button has different effects. -
Page 14: Goto Function
ADVANCED OPERATION The meaning of the menu is the same with the DVD menu above. PAL/NTSC SYSTEM SELECTION Press the P/N button to switch between PAL, NTSC and AUTO three modes. Note: The function is only effective when the LOGO is shown. That is to say, when no disc in, ejecting a disc and in stop mode or pre-stop mode when playing DVD/VCD, pressing PAL/NTSC is effective. - Page 15 ADVANCED OPERATION requires entering 4 characters password, why? It is because that the current disc has “Parental Control” level, and the player’s parental level is set below the level of the disc, you should enter the correct password to play the disc normally. NOTE: For how to set the “Parental Control”...
-
Page 16: Special Function For Vcd And Cd
ADVANCED OPERATION SPECIAL FUNCTIONS FOR VCD AND For VCD and CD discs, there is one special function “Program Play” which makes it different from DVD discs. • The function is effective in PBC OFF mode.Press PROGRAM button can activate program edit interface. Prog- 1 [ ] 5[ ]... -
Page 17: Setup
SETUP In DVD mode, when the disc is playing or in the stop mode, press SETUP on the remote control to enter setup menu. • When the cursor is on the topside, use buttons to move between the different pages. •... -
Page 18: Trouble Shooting
TROUBLE SHOOTING If it appears that your DVD unit is faulty, first consult this checklist. It may be that something simple has been overlooked. Under no circumstances should you try to repair the player yourself, as this will invalidate the warranty. Only qualified service personnel can remove the cover or service this player. -
Page 19: Specifications
SPECIFICATIONS Supply Voltage Current Consumption Battery Charge Voltage Signal System Discs Played Audio Output Level Audio Signal Output Characteristics Note: Specifications and design are subject to modification, without notice, due to improvements in technology. This product incorporates copyright protection technology that is protected by method claims of certain U.S.
