INSTALLATION INSTRUCTIONS

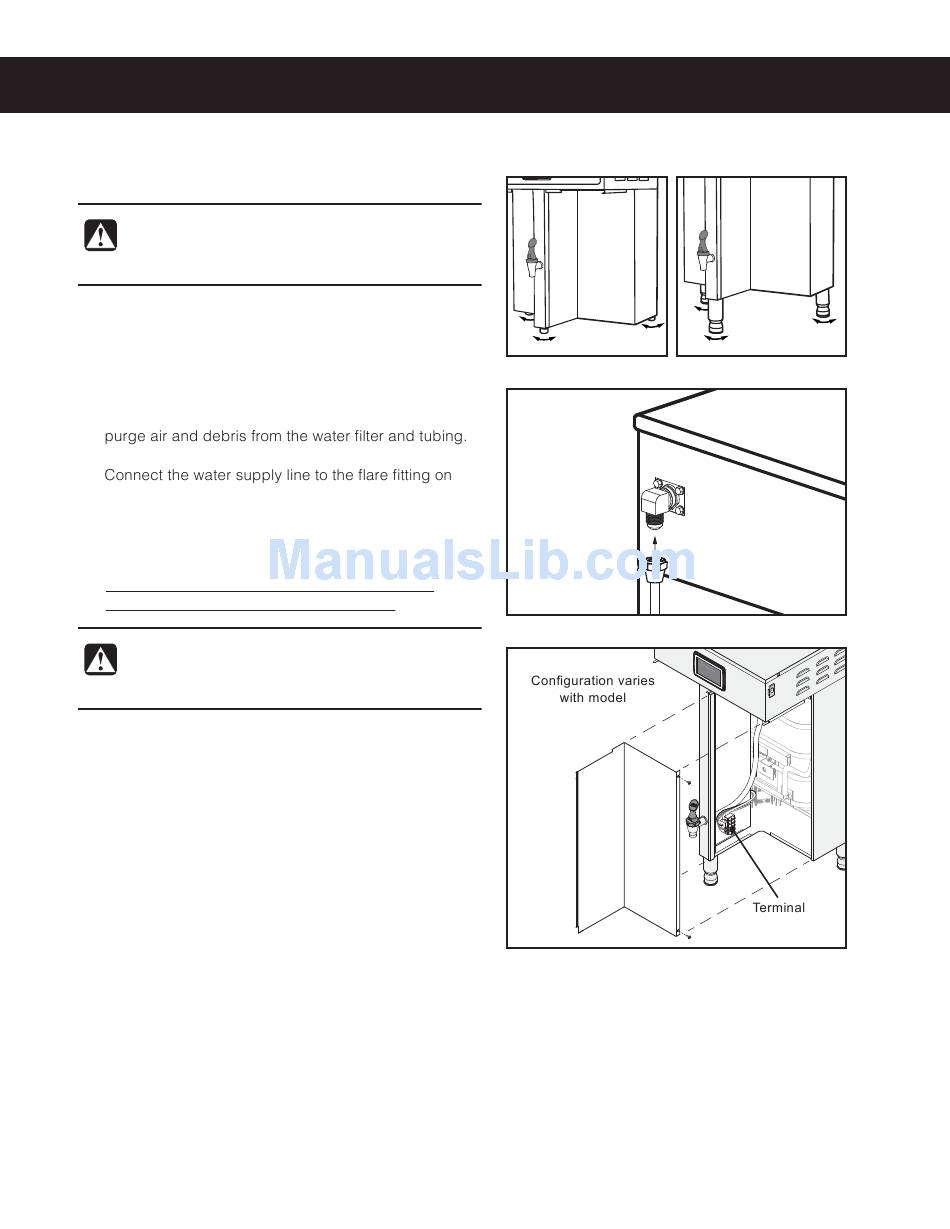

Installation
Leveling
WARNING: Use the leveling legs to level the
brewer only. Do not use them to adjust brewer
height. Do not extend them higher than necessary.
1 Position the brewer on the counter top. Level it left to
right and front to back by turning the bottom of the
legs.
Connect the Water Supply
2 Flush the water supply line prior to installation to
3
the back of the brewer. Leave the water supply valve
closed until the power is connected.
Connect the Brewer Wiring
Brewers Without A Cord Set Attached and Dual
Voltage Brewers to be Operated 220 Volts
WARNING: Turn off power to the junction box at
the circuit breaker panel before connecting the
power cable to the brewer.
4 Remove the screws that hold the front panel in place
and remove.
5 On dual voltage units being operated at 220 Volts,
disconnect and cap the jumper wire between the "C"
and "N" terminals on the terminal block.
6 Loosen the strain relief on the back of the brewer.
7 Feed the 220 Volt power cable into the brewer.
8 Connect the wires on the power cable to the terminal
block inside the brewer.
9 Tighten the strain relief and replace the front panel.
10 Connect the power cable wires to the terminals in the
junction box. See the ELECTRICAL SCHEMATIC for
the power supply requirements.
G4 THERMOPRO, INSTALLATION INSTRUCTIONS
Front
panel
block

II9

011917NC
