ILLUSTRATED PARTS LIST
WC-62031 - Tank Assembly
WC-62031 - Tank Assembly - Parts List
ITEM # PART # DESCRIPTION
1 WC-62032 TANK, COMPLETE TP2S ULTEM FITTNGS
2 WC-5853-102 COVER, TOP HEATING TANK GEN USE
3 WC-43062 GASKET, TANK LID
4 WC-5527K KIT, PROBE WATER LEVEL O-RING & NUT
KIT,ELEMENT, HEATING 1.6KW120V W/ JAM
5 WC-904-04
NUT & SILICONE O-RING
6 WC-1438-101 SENSOR, TEMPERATURE TANK
GUARD, SHOCK/HEATING ELEMENT FOR SIN-
7 WC-4394
GLE HEATING ELEMENT
WC-62031 - Recommended Parts to Stock
ITEM # PART # DESCRIPTION
3 WC-43062 GASKET, TANK LID
4 WC-5527K KIT, PROBE WATER LEVEL O-RING & NUT
6 WC-1438-101 SENSOR, TEMPERATURE TANK
GUARD, SHOCK/HEATING ELEMENT FOR SIN-
7 WC-4394
GLE HEATING ELEMENT
THERMOSTAT, HI LIMIT HEATER CONTROL
8 WC-522
DPST 277V 40A

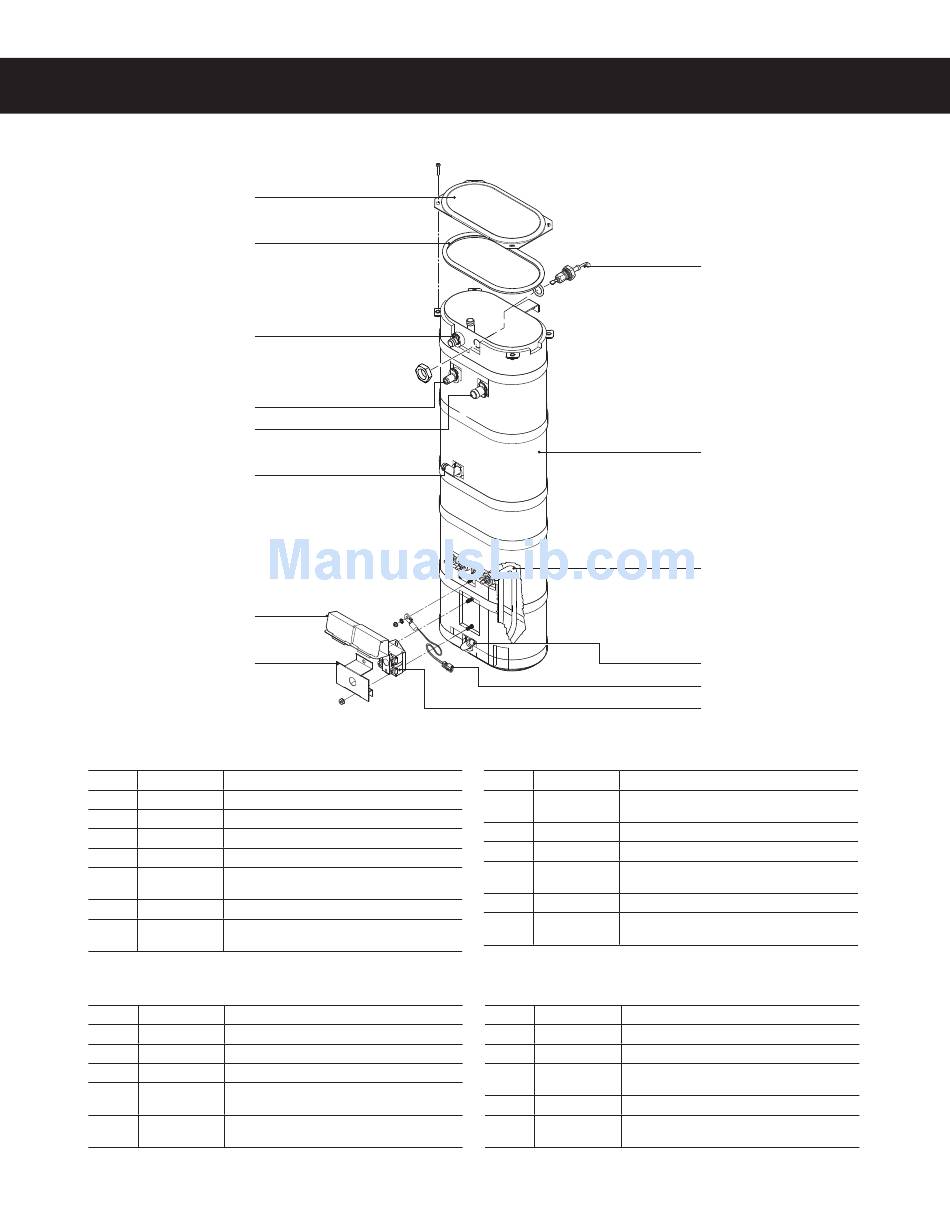

WC-62031 TANK ASSEMBLY, ILLUSTRATED PARTS/RECOMMENDED PARTS
2
3
10
11
13
12
7
9
ITEM # PART # DESCRIPTION
THERMOSTAT, HI LIMIT HEATER CONTROL
8 WC-522
DPST 277V 40A
9 WC-43055 GUARD, SHOCK RESET THERMOSTAT (WC-522)
10 WC-37266 KIT, FITTING TANK OVERFLOW
KIT, STRAIGHT FITTING & BUSHNG 8mm GEN
11 WC-37317
USE
12 WC-37365 KIT, FITTING TANK INLET
KIT, STRAIGHT PLASTIC FITTING AND BUSHING
13 WC-37357
12MM
ITEM # PART # DESCRIPTION
9 WC-43055 GUARD, SHOCK RESET THERMOSTAT (WC-522)
10 WC-37266 KIT, FITTING TANK OVERFLOW
KIT, STRAIGHT FITTING & BUSHNG 8mm GEN
11 WC-37317
USE
12 WC-37365 KIT, FITTING TANK INLET
KIT, STRAIGHT PLASTIC FITTING AND BUSHING
13 WC-37357
12MM

IP44

4
1
5
12
6
8
011917NC
