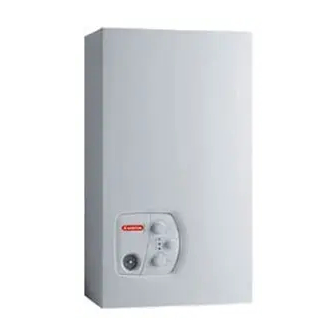

Page 1: Combination Boiler
Installation Instructions Wall-hung combination boiler Type C Boilers G.C.N: LEAVE THESE INSTRUCTIONS WITH THE END-USER Country of destination: GB... -
Page 2: Table Of Contents
3.7 Boiler Safety Systems 3.8 Draining the System GAS ADJUSTMENTS Gas Adjustment Table 4.1 Changing the Type of Gas MAINTENANCE MISCELLANEOUS 6.1 Wiring Diagram for Two Heating Zones 6.2 Wiring Diagram for Connection to an Ariston Unvented Cylinder Technical Information... -
Page 3: General Information
This manual is an integral and essential part of the product. It should be kept GENERAL with the appliance so that it can be consulted by the user and our authorised INFORMATION personnel. Please carefully read the instructions and notices about the unit contained in this manual, as they provide impor tant information regarding the safe installation, use and maintenance of the product. -
Page 4: Overall View
7 - Visual check of the primary heat exchanger: check for overheating in the blade assembly; clean the exhaust fan if needed. 8 - Adjustment of the gas pressures: ignition pressure, partial load and full load. 9 - Check the heating safety systems: - safety device for maximum temperature;... -
Page 5: Installation
The technical information and instructions provided herein below are INSTALLATION intended for the installer so that the unit may be installed correctly and safely. The installation and initial start up of the boiler must be by a CORGI EFERENCE TANDARDS Approved Installer in compliance with the installation standards currently in effect, as well as with any and all local health and safety standards i.e.. -
Page 6: Overall Dimensions
VERALL IMENSIONS EGEND 123,5 123,5 A = Central Heating Flow (3/4”) B = Domestic Hot Water Outlet (1/2”) C = Gas Inlet (3/4”) D = Domestic Cold Water Inlet (1/2”) E = Central Heating Return (3/4”) LEARANCES In order to allow for access to the interior of the boiler for maintenance pur poses, the boiler must be installed in compliance with the minimum clearances indicated in F . -
Page 7: Gas Connection
External wiring to the appliance must be carried out by a qualified technician and be in accordance with the current I.E.E. Regulations and applicable local regulations. The UNO range of boilers are supplied for connection to a 230 V 50 Hz supply. - Page 8 Jointing should be either with capillary soldered or compression fittings. Where possible pipes should have a gradient to ensure air is carried naturally to air release points and water flows naturally to drain taps. The appliance has a built-in automatic air release valve, however it should be ensured as far as possible that the appliance heat exchanger is not a natural collecting point for air.
-
Page 9: Flue Connection
YSTEM ONNECTIONS The provision for satisfactory flue termination must be made as described in BS 5440-1. The appliance must be installed so that the flue terminal is exposed to outdoor air. The terminal must not discharge into another room or space such as an outhouse or lean-to. - Page 10 In addition, it is also possible to use a split (twin pipe) system by fitting a special adaptor to the flue connector and using the aperture for the air vent intake located on the top part of the combustion chamber. To utilise the air intake it is necessary to: 1.
- Page 11 ABLE Exhaust Restrictor Maximum Risk of Condensation Forming Type ø 42 mm Restrictor Extension Piping insulated Piping not insulated Exhaust/Air ø 42 ø 42 restrictor restrictor C12 (xx) Coaxial L min = 0.5 m L min = 1 m L = 3 m NONE NONE NONE...
-
Page 12: Room Thermostat Connection
In calculating the lengths of the pipes, the maximum length “L” must also take into consideration values YSTEMS exhaust/air intake end terminals, as well as 90° elbows for coaxial systems. The C52 types must comply with the following requirements: 1 - The exhaust/ air intake pipes must have the same diameter of 80 mm. - Page 13 2.11 LECTRICAL IAGRAM EGEND A01 = A02 = Gas Valve Supply = Central Heating Selection (Winter) and A03 = Motorised Diverter Valve Temperature Adjustment A04 = Circulation Pump = Domestic Hot Water Temperature Adjustment A05 = Spark Generator = On/Off/Reset Switch A06 = Main Circuit Temperature Probe (Flow Sensor) = Ignition Failure (Lockout) L.E.D.
-
Page 14: Water Circuit Diagrams
2.12 ATER IRCUIT IAGRAM EGEND . 2.15 Air Pressure Switch Main Heat Exchanger Main Circuit Temperature Probe (Flow Sensor) Burner Detection Electrode Ignition Electrode Pressure Gauge Safety Valve 10. Secondary Heat Exchanger 11. Gas Valve 12. D.H.W. Flow Switch 14. Boiler drain valve 15. -
Page 15: Commissioning
COMMISSIONING MTS (GB) Limited support the initiative. Within the information pack NITIAL REPARATION you will find a copy of the Log Book. It is important that this is completed in the presence of your customer, they are shown how to use it, and it is signed by them. -
Page 16: Control Panel
ONTROL ANEL EGEND A - Central heating selection (winter) and temperature adjustment knob B - Ignition failure (lockout) L.E.D. (red) C - On/Off/ Reset knob D - Fume sensor L.E.D. (yellow) E - Domestic hot water temperature adjustment knob F - On/Off L.E.D. (green) G - Heating system pressure gauge In the event that the red L.E.D. - Page 17 Check the system pressure and, if it has dropped, open the filling loop again to bring the pressure back up to 0.7 bar. 2. Check the exhaust flue for the fumes produced by combustion. 3. Make sure that all gate valves are open; 4.
