ProForm PFTL49392 User Manual

P.a.c.e.r. console
Hide thumbs

Advertisement

Table of Contents

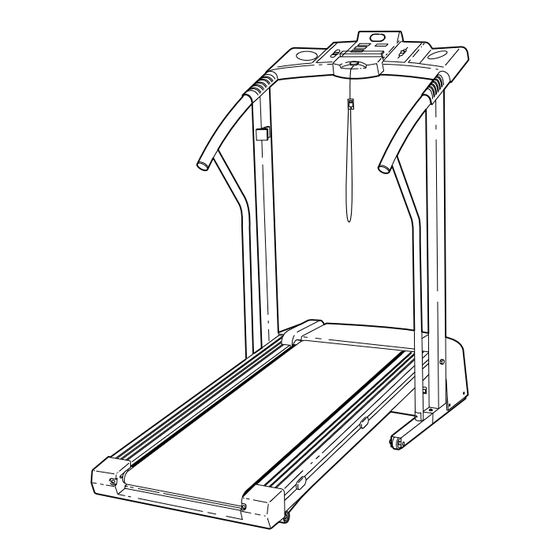

Model No. PFTL49392
Serial No.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satis-
faction through direct assistance
from our factory.
TO AVOID UNNECESSARY DE-
LAYS, PLEASE CALL DIRECT TO
OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our Customer Hot Line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
®

Advertisement

Table of Contents
loading

Related Manuals for ProForm PFTL49392

Summary of Contents for ProForm PFTL49392

  • Page 1 Model No. PFTL49392 Serial No. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, we will guarantee complete satis- faction through direct assistance from our factory.

  • Page 2: Table Of Contents

    HOW TO FOLD AND MOVE THE TREADMILL ........
  • Page 3 SAVE THESE INSTRUCTIONS The decal shown has been placed on your treadmill. If the decal is missing, or if it is not legible, please call our Customer Service Department, toll-free, to order a free replacement decal (see ORDERING REPLACEMENT PARTS on the back cover of this manual).

  • Page 4: Before You Begin

    The model number of the treadmill is PFTL49392. The serial num- ber can be found on a decal attached to the treadmill (see the front cover of this manual for the location).

  • Page 5: Assembly

    This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
  • Page 6 Handrail (1) is aligned with the hole in the bracket on the Extension Leg (34). If the holes are not aligned, rotate the Handrail away from the treadmill and slide the upper end of the Handrail out of the Upright (11) slightly. Then, ro- tate the lower end of the Handrail back to the position shown by the dotted line in drawing 3.

  • Page 7: Operation And Adjustment

    OPERATION AND ADJUSTMENT THE PERFORMANT LUBE WALKING BELT Your treadmill features a walking belt coated with PERFORMANT LUBE , a high-performance lubricant. IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking plat- form. They will deteriorate the walking belt and cause excessive wear.
  • Page 8 • Do not stand on the walking belt when turning on the power. • Always wear the clip (see the drawing at the lower right) while using the treadmill. When the key is removed from the console, the walking belt will stop.
  • Page 9 To stop the walking belt, step onto the foot rails and slide the speed control to the RESET position. Adjust the incline of the treadmill as desired. To change the incline of the treadmill, press the...

  • Page 10: How To Fold And Move The Treadmill

    1. Hold the upper ends of the handrails. Place one foot on the base as shown. 2. Tilt the treadmill back until it rolls freely on the front wheels. Carefully move the treadmill to the desired loca- tion. To reduce the risk of injury, use extreme caution while moving the treadmill.
  • Page 11 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand as shown. Using your left thumb, press the storage latch and hold it. Pivot the treadmill until the frame and foot rail are past the storage latch.

  • Page 12: Trouble-Shooting

    2. SYMPTOM: THE POWER TURNS OFF DURING USE a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.
  • Page 13 2 to 3 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

  • Page 14: Conditioning Guidelines

    If your goal is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near one of the lower two numbers in your training zone.
  • Page 15 Training Zone Exercise After warming up, increase the intensity of your exer- cise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exer- cise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.

  • Page 16: Ordering Replacement Parts

    Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give the following information: • The MODEL NUMBER OF THE PRODUCT (PFTL49392) • The NAME OF THE PRODUCT (PROFORM • The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual) •...
  • Page 17 REMOVE THIS EXPLODED DRAWING AND PART LIST FROM THE MANUAL Save this EXPLODED DRAWING and PART LIST for future reference. Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of the User’s Manual.
  • Page 18 PART LIST—Model No. PFTL49392 Key No. Qty. Description Handrail Key/Clip Screw Battery Cover Foot Rail Lift Motor Frame Guide Speed Potentiometer Speed Control Knob Console Assembly Upright Base Motor Belt Small Screw Storage Latch 4” Cable Tie 8” Cable Tie...
  • Page 19 EXPLODED DRAWING—Model No. PFTL49392 R0300A...

This manual is also suitable for:
