Model No. PFTL49707.0
USER'S MANUAL

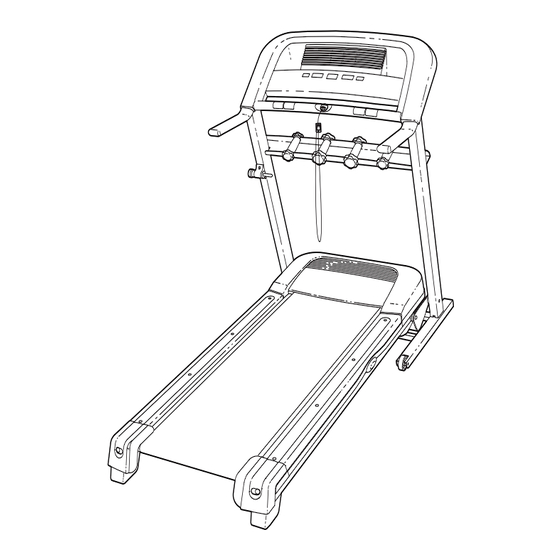

Serial No.
Write the serial number in the space
above for future reference.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete cus-
tomer satisfaction. If you have
questions, or if parts are missing,
PLEASE DO NOT CONTACT
THE STORE; please contact
Customer Care.
IMPORTANT: You must note
the product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.proformservice.com
CAUTION
Visit our website at
Read all precautions and instruc-
tions in this manual before using
www.proform.com
this equipment. Save this manual
new products, prizes,
for future reference.
fitness tips, and much more!
Advertisement
Table of Contents
Related Manuals for ProForm PFTL49707.0
Summary of Contents for ProForm PFTL49707.0
- Page 1 Model No. PFTL49707.0 USER'S MANUAL Serial No. Write the serial number in the space above for future reference. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete cus- tomer satisfaction. If you have questions, or if parts are missing, PLEASE DO NOT CONTACT THE STORE;...
-
Page 2: Table Of Contents
HOW TO FOLD AND MOVE THE TREADMILL ........ -
Page 3: Important Precautions
To reduce the risk of serious injury, read all important precautions and in- structions in this manual and all warnings on your treadmill before using your treadmill. ICON as- sumes no responsibility for personal injury or property damage sustained by or through the use of this product. - Page 4 Always remove the key, unplug the power cord, and switch the reset/off cir- cuit breaker to the off position when the treadmill is not in use. (See the drawing on page 5 for the location of the circuit breaker.) 21.
-
Page 5: Before You Begin
BEFORE YOU BEGIN Thank you for selecting the new PROFORM treadmill. The 515 TR treadmill combines advanced technology with innovative design to help you get the most from your exercise in the convenience of your home. And when you’re not exercising, the 515 TR treadmill can be folded up, requiring less than half the floor space of other treadmills. -
Page 6: Assembly
To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480. Assembly requires two persons. Set the treadmill in a cleared area and remove the packing materials; do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. - Page 7 2. Orient the Left Upright (31) as shown, and attach it to the Base (48) with two 3/8" x 2 1/4" Bolts (40) and two 3/8" Star Washers (39); do not tighten the Bolts yet. 3. Attach a Wheel (45) to each side of the Base (48) with a 3/8"...
- Page 8 5. See the left inset drawing. Identify the two Frame Spacers (34). Open the included packet of grease, and apply grease to both sides of both Frame Spacers. Then, identify the outer side of each Frame Spacer. Hold a Frame Spacer (34) between the Right Upright (36) and the Lift Frame (59), with the outer side of the Frame Spacer facing the Right Upright.
- Page 9 7. Route the Upright Wire (28) through one of the Handrails (18) as shown, and remove the wire tie from the Upright Wire. Attach the Handrail (18) to the Right Upright (36) with two 5/16" X 2 1/4" Bolts (20) and two 5/16" Star Washers (19).
- Page 10 36) with two 1/4" X 1/2" Bolts (22). 11. Lower the Uprights (31, 36) as shown. See the inset drawing. Position the Uprights (31, 36) so that the treadmill Frame (74) is cen- tered between the Uprights. Firmly tighten the 3/8" x 2 3/4" Bolts (32) and then the 3/8"...
- Page 11 (30), and tighten the knob onto the pin. 14. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may be included. Keep the included hex keys in a secure place; the large hex key is used to adjust the walking belt (see page 22).
-
Page 12: Operation And Adjustment
(see drawing 1 at the right). To purchase a surge suppressor, see your local PROFORM dealer or call the telephone number on the front cover of this manual and order part number 146148, or see your local electronics store. - Page 13 In addition, the console features ten trainer workouts. Each workout automatically controls the speed and in- cline of the treadmill as it guides you through an effec- tive workout. You can even create your own custom workouts and store them in memory for future use.
- Page 14 THE INFORMATION MODE on page 19 to turn off the demo mode. Next, stand on the foot rails of the treadmill. Find the clip attached to the key (see the drawing on page 13) and slide the clip onto the waistband of your clothes.
- Page 15 Step onto the foot rails, press the Stop button, and adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting when you fold the treadmill to the storage posi- tion, or you may damage the treadmill.
- Page 16 3. Press the Start button or the Speed increase button to start the workout. A moment after you press the button, the treadmill will automatically adjust to the first speed and in- cline settings of the workout. Hold the handrails and begin walking.
- Page 17 Speed and Incline buttons. Every few times you press a Speed button, an ad- ditional indicator will appear or disappear in the Current Segment column.
- Page 18 CUSTOM PROGRAM on page 17. 3. Press the Start button or the Speed increase button to start the program. A moment after you press the button, the treadmill will automatically adjust to the first speed and in- cline settings that you programmed previously.
- Page 19 The information mode also allows you to select miles or kilometers as the unit of measurement and to turn on and turn off the demo mode.
-
Page 20: How To Fold And Move The Treadmill
HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand. Pull the latch knob to the left and hold it. Pivot the frame downward past the latch pin and slowly release the latch knob. -
Page 21: Troubleshooting
PROBLEM: The power turns off during use SOLUTION: a. Check the reset/off circuit breaker located on the treadmill frame near the power cord (see the drawing above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in. - Page 22 PROBLEM: The console displays remain lit when you remove the key from the console SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off the demo mode, hold down the Stop button for a few seconds.
-
Page 23: Exercise Guidelines
EXERCISE GUIDELINES WARNING: Before beginning any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems. The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. -
Page 24: Part List
PART LIST—Model No. PFTL49707.0 Key No. Qty. Description Hood 3/4" Screw Left Foot Rail Foot Rail Screw Motor Tension Bolt U-nut Wire Tie Motor Bolt Drive Motor Motor Bracket 1/2" Ground Screw Filter Wire Power Cord Reset/Off Circuit Breaker Foot Rail Decal... -
Page 25: Exploded Drawing
EXPLODED DRAWING A—Model No. PFTL49707.0 R0707A... - Page 26 EXPLODED DRAWING B—Model No. PFTL49707.0 R0707A...
- Page 27 EXPLODED DRAWING C—Model No. PFTL49707.0 R0707A...
-
Page 28: Ordering Replacement Parts
ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro- vide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
