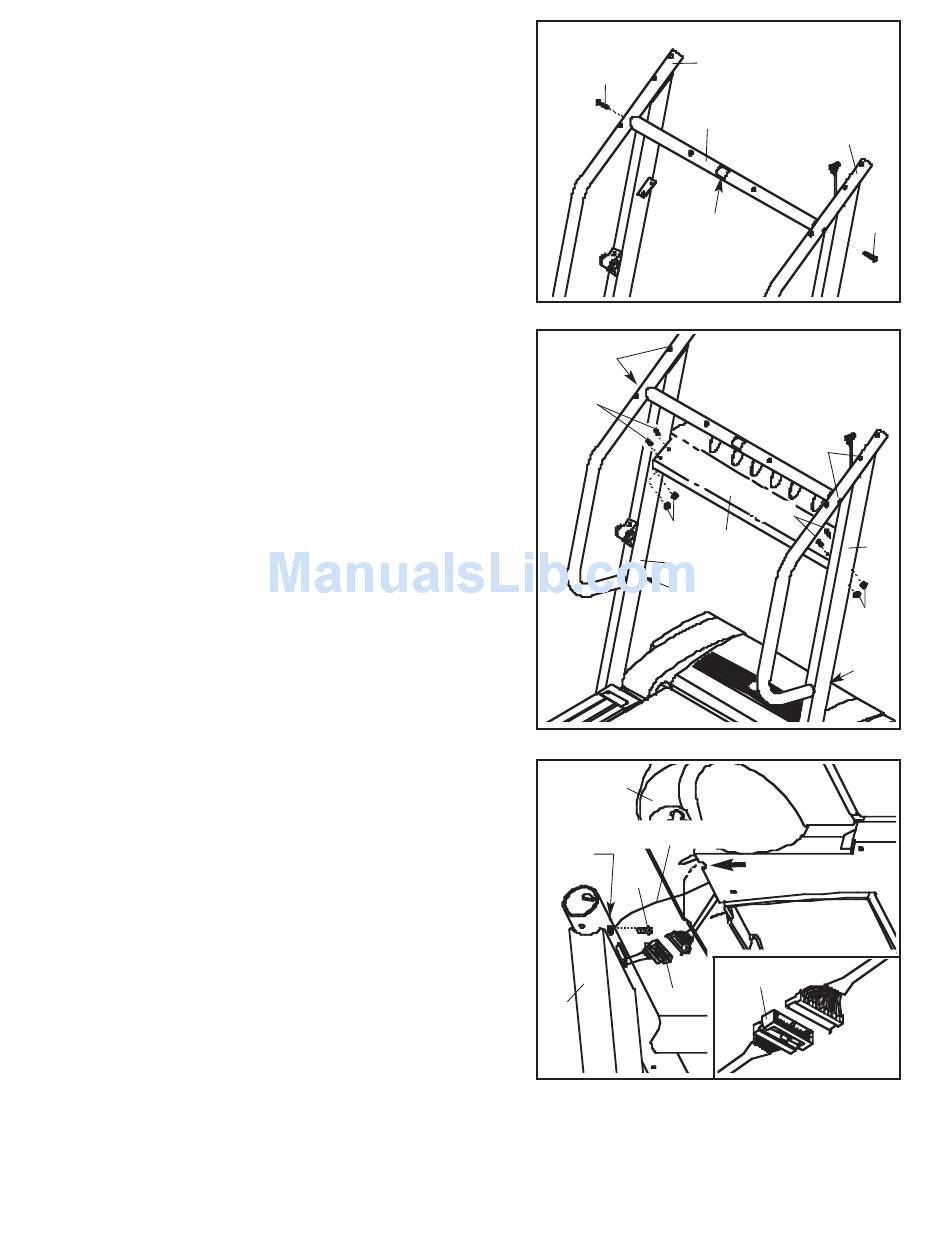

4. Hold the Console Crossbar (88) between the Handrails
(123, 124). Make sure that the square hole in the
Crossbar is on top as shown. Attach the Crossbar with
two 2 1/2" Bolts (56). Do not tighten the Crossbar
Bolts yet.
5. Attach the Weight Rack (125) to the brackets on the Left
and Right Uprights (9, 10) with four Weight Rack Bolts
(121) and four Nuts (122). Attach all of the Weight
Rack Bolts and Nuts before tightening any of them.
Firmly tighten the four 2 1/2" Bolts (56). Next, firmly
tighten the two 4" Bolts (120).
6. Have a second person hold the Console (78) near the
Right Upright (10). Attach the ground wire from the
Console to the Right Upright with the 1/2" Silver Screw
(107). Note: There may be two small holes in the Right
Upright. Be sure to attach the ground wire to the
lower hole and not to the higher hole.
Connect the Upright Wire Harness (17) to the wire har-
ness on the Console (78). Make sure to connect the
connectors properly (see the inset drawing). The
connectors should slide together easily and snap
into place. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER IS TURNED ON. Insert the
connectors into the Console
4
56
5
56
121
6
78
Ground Wire
Higher
Hole
107
10
8
123
88
124
Square
Hole
56
121
122
125
9
120
17
17
56
10
122
120
