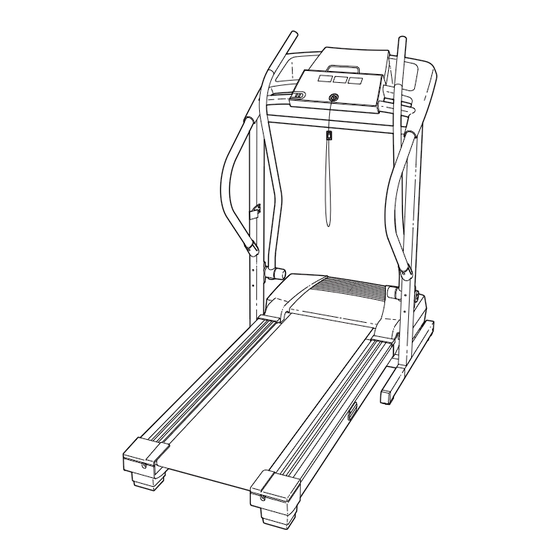

ProForm TREADMILL DTL32951 User Manual

Proform user's manual treadmill dtl32951
Hide thumbs
Table of Contents

Advertisement

Quick Links

Model No. DTL32951
USER'S MANUAL
Serial No.
Serial Number
Decal
QUESTIONS?
If you have questions, or if there
are missing or damaged parts,
we will guarantee complete sat-
isfaction through direct assis-
tance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Visit our website at
Read all precautions and instruc-
tions in this manual before using
www.proform.com
this equipment. Save this manual
new products, prizes,
for future reference.
fitness tips, and much more!

Advertisement

Table of Contents
loading

Related Manuals for ProForm TREADMILL DTL32951

Summary of Contents for ProForm TREADMILL DTL32951

  • Page 1 CUSTOMER HOT LINE: 1-888-533-1333 Mon.–Fri., 6 a.m.–6 p.m. MST CAUTION Visit our website at Read all precautions and instruc- tions in this manual before using www.proform.com this equipment. Save this manual new products, prizes, for future reference. fitness tips, and much more!

  • Page 2: Table Of Contents

    HOW TO FOLD AND MOVE THE TREADMILL ........

  • Page 3: Important Precautions

    11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 10. To purchase a surge suppressor, see your local PROFORM dealer or call 1-888-533- 1333 and order part number 146148, or see your local electronics store.
  • Page 4 SAVE THESE INSTRUCTIONS The decals shown here have been placed on your treadmill. If a decal is missing, or if it is not legible, call toll-free 1-888-533-1333 and order a free replacement decal.

  • Page 5: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the new PROFORM WALK PERFORMANCE X treadmill. The CROSSWALK PERFORMANCE X treadmill combines advanced tech- nology with innovative design to help you get the most from your exercise in the convenience of your home.

  • Page 6: Assembly

    This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
  • Page 7 With the help of another person, carefully raise the Uprights (69) to the vertical position. 3. With the help of a second person, tip the treadmill so the Base (not shown) is flat on the floor. Insert the tab on one of the Handrail Brackets (40) into the slot in the right Upright (69).
  • Page 8 5. Attach the Left Upper Body Arm (24) to the left Upright (69) with two 3 1/2” Bolts (45), two Washers (38), and two Star Washers (106) as shown. Make sure that the Left Upper Body Arm is on the indicated side of the crossbar.
  • Page 9 Do not overtighten the Screws. 11.Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the walking belt (see page 17).

  • Page 10: Operation And Adjustment

    (see drawing 1 at the right). To purchase a surge suppressor, see your local PROFORM dealer or call 1-888-533-1333 and order part number 146148, or see your local electronics store.
  • Page 11 Displays Clip Next, stand on the foot rails of the treadmill. Find the clip attached to the key (see the drawing above), and slide the clip onto the waistband of your clothes. Insert the key into the console. A tone will sound and the three displays will light.
  • Page 12 To stop the walking belt, press the Stop button. The Time/Distance display will begin to flash. Note: During the first few minutes that the treadmill is used, inspect the alignment of the walking belt, and align it if necessary (see page 17).
  • Page 13 HOW TO USE THE UPPER BODY ARMS As you walk on the treadmill, you can either hold the handrails or use the upper body arms. To exercise your arms, shoulders, and back for a total body workout, move the upper body arms forward and back as you walk on the treadmill.

  • Page 14: How To Fold And Move The Treadmill

    1. Hold the upper ends of the handrails. Place one foot on the base as shown. 2. Tilt the treadmill back until it rolls freely on the front wheels. Carefully move the treadmill to the desired location. To re- duce the risk of injury, use extreme caution while mov- ing the treadmill.

  • Page 15: How To Lower Treadmill For Use

    HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand. Press the storage latch to the left. Pivot the treadmill down until the frame and foot rail are past the storage latch.

  • Page 16: Troubleshooting

    PROBLEM: The power turns off during use SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.
  • Page 17 3 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, in- sert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened. c. If the walking belt still slows when walked on, please call our Customer Service Department.

  • Page 18: Conditioning Guidelines

    For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone. Aerobic Exercise If your goal is to strengthen your cardiovascular sys- tem, your exercise must be “aerobic.”...
  • Page 19 SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.
  • Page 20 PART LIST—Model No. DTL32951 No. Qty. Description Hood 3/4” Screw Motor Belt Motor Tension Bolt 3/8” Washer Motor Star Washer Flywheel Motor Motor Assembly Reed Switch Latch Warning Decal Frame Spacer Frame Pivot Nut/Motor Nut Frame Pivot Bolt Walking Platform Screw Handrail Cap Front Roller/Pulley...

  • Page 22: How To Order Replacement Parts

    • The MODEL NUMBER of the product (DTL32951) • The NAME of the product (PROFORM CROSSWALK PERFORMANCE X treadmill) • The SERIAL NUMBER of the product (see the front cover of this manual) • The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and the PART LIST attached in the center of this manual) ICON Health &...

This manual is also suitable for:

Crosswalk performance x
