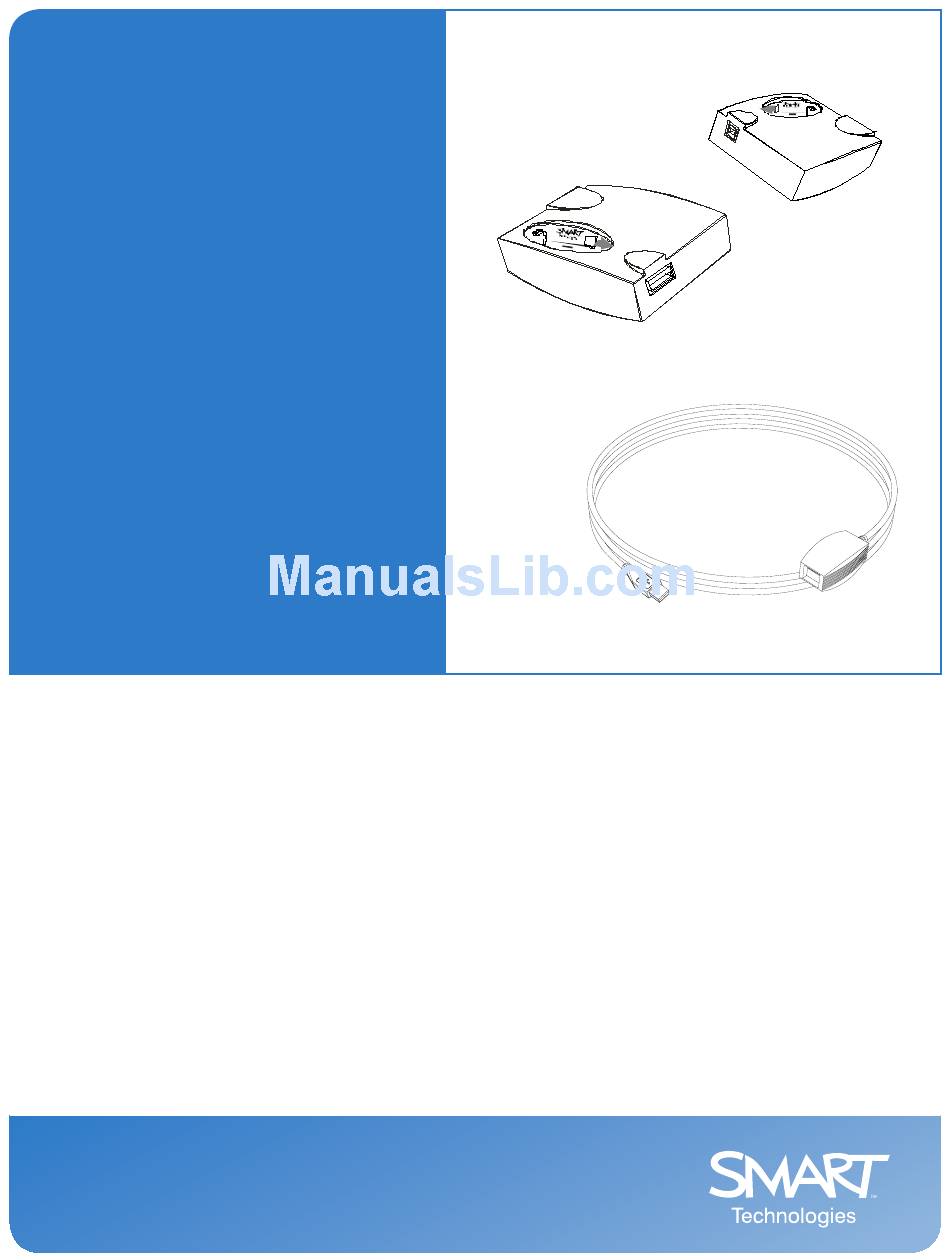

- Page 1 Extending USB Connections SMART Board 600 and 600i Series ™ Interactive Whiteboards...
- Page 2 SMART Technologies Inc. Information in this manual is subject to change without notice and does not represent a commitment on the part of SMART.
- Page 3 Table of Contents 600 Series Interactive Whiteboard Extending the USB with a Bus-Powered (Active) Extension Cable (USB-XT)........ 1 Basic Application – Single USB-XT Extension Cable ............... 1 Complex Application – Multiple USB-XT Extension Cables ............. 1 Extending the USB with a Cat 5 Bus-Powered (Active) Extender (CAT5-XT) ........ 2 Basic Application –...
- Page 4 Table of Contents...
-
Page 5: Series Interactive Whiteboard
600 Series Interactive Whiteboard Extending the USB with a Bus-Powered (Active) Extension Cable (USB-XT) Basic Application – Single USB-XT Extension Cable Computer with Internal USB Hub 16' (5 m) Bus-Powered USB Standard 16' (5 m) Extension Cable (USB-XT) USB Cable Complex Application –... -
Page 6: Extending The Usb With A Cat 5 Bus-Powered (Active) Extender (Cat5-Xt)
Prohibited Cable Assemblies on page 19. • The computer’s USB port must provide sufficient power for the bus-powered CAT5-XT extenders and the SMART Board 600 series interactive whiteboard. Laptops may not provide sufficient power while running on batteries. 600 Series Interactive Whiteboard... -
Page 7: Complex Application 1 – Cat5-Xt Extender And Self-Powered Usb Hub
Complex Application 1 – CAT5-XT Extender and Self-Powered USB Hub If you need to extend the cable from CAT5-XT extender Unit A to the interactive whiteboard, you must use a self-powered hub. CAT5-XT extenders don’t provide sufficient power for both the interactive whiteboard and a bus-powered USB extender. -
Page 8: Complex Application 2 – Usb-Xt Extension Cable(S), Cat5-Xt Extender And Self-Powered Usb Hub
Complex Application 2 – USB-XT Extension Cable(s), CAT5-XT Extender and Self- Powered USB Hub You can extend the USB connection from the computer to CAT5-XT extender Unit B using one or two USB-XT extension cables. You can substitute the GoWire™ SMART Board software auto- launch cable in place of the USB-XT extension cable. -
Page 9: Series Interactive Whiteboard With Speakers (Sba)
600 Series Interactive Whiteboard with Speakers (SBA) Extending the USB with a Bus-Powered (Active) Extension Cable (USB-XT) Basic Application – Single USB-XT Extension Cable Interactive Whiteboard and SBA Speakers with Self- Powered Internal USB Hub 16' (5 m) Bus-Powered USB Standard 16' (5 m) Extension Cable (USB-XT) USB Cable... -
Page 10: Complex Application – Multiple Usb-Xt Extension Cables
Complex Application – Multiple USB-XT Extension Cables Interactive Whiteboard and SBA Speakers with Self- Powered Internal USB Hub Computer with Internal USB Hub ..Up to Three 16' (5 m) Bus-Powered Standard 16' (5 m) USB Extension Cables (USB-XT) USB Cable NOTES •... -
Page 11: Extending The Usb With A Cat 5 Bus-Powered (Active) Extender (Cat5-Xt)
Extending the USB with a Cat 5 Bus-Powered (Active) Extender (CAT5-XT) Basic Application – CAT5-XT Extender Interactive Whiteboard and SBA Speakers with Self- Powered Internal USB Hub Computer with Internal USB Hub Cat 5 Cable (not included) 6' (1.8 m) USB Extender Unit B Extender Unit A 6' (1.8 m) USB... -
Page 12: Complex Application 1 – Cat5-Xt Extender And Self-Powered Hub
Complex Application 1 – CAT5-XT Extender and Self-Powered Hub You can extend the USB connection from the computer to the interactive whiteboard with speaker option (SBA) using the Cat 5 extenders (CAT5-XT) and a self-powered USB hub. The self- powered USB hub allows you to extend the included 6' (1.8 m) USB cable with a standard 16' (5 m) USB cable. -
Page 13: Complex Application 2 – Usb-Xt Extension Cable(S), Cat5-Xt Extender And Self-Powered Usb Hub
Complex Application 2 – USB-XT Extension Cable(s), CAT5-XT Extender and Self- Powered USB Hub You can extend the USB connection from the computer to CAT5-XT extender Unit B using a USB-XT extension cable. NOTE: You can’t use this configuration with Mac computers. Interactive Whiteboard and SBA Speakers with Self-Powered Internal... - Page 14 600 Series Interactive Whiteboard with Speakers (SBA)
-
Page 15: I Series Interactive Whiteboard System
600i Series Interactive Whiteboard System Basic Application – Connecting to the Extended Connection Panel (ECP) USB Receptacle Extended Connection Panel (ECP) Computer with Internal USB Hub 6' (1.8 m) USB Cable (included) • Only use 6' (1.8 m) USB cables (included) to connect the computer to the extended connection panel (ECP). -
Page 16: Extending The Usb With A Bus-Powered (Active) Extension Cable (Usb-Xt)
Extending the USB with a Bus-Powered (Active) Extension Cable (USB-XT) Basic Application – Single Extension Cable Unifi 35 Projector with Self-Powered Internal USB Hub Computer with Internal USB Hub Extended Connection Panel (ECP) 16' (5 m) Bus-Powered USB 6' (1.8 m) USB Extension Cable (USB-XT) Cable (included) or GoWire Auto-Launch Cable... -
Page 17: Complex Application – Multiple Usb-Xt Extension Cables
Complex Application – Multiple USB-XT Extension Cables Unifi 35 Projector with Self-Powered Internal USB Hub Computer with Internal USB Hub Extended Connection Panel (ECP) ..6' (1.8 m) USB Up to Three 16' (5 m) Bus-Powered Cable (included) USB Extension Cables (USB-XT) NOTES •... -
Page 18: Extending The Usb With A Cat 5 Bus-Powered (Active) Extender (Cat5-Xt)
Extending the USB with a Cat 5 Bus-Powered (Active) Extender (CAT5-XT) Basic Application – CAT5-XT Extender Unifi 35 Projector with Self-Powered Internal Computer with USB Hub Internal USB Hub 6' (1.8 m) USB Cable (included) Cat 5 Cable (not included) 6' (1.8 m) USB Extender Unit B Extender Unit A... -
Page 19: Complex Application 1 – Cat5-Xt Extender And Self-Powered Hub
Complex Application 1 – CAT5-XT Extender and Self-Powered Hub You can extend the USB connection from the computer to the 600i interactive whiteboard system using Cat 5 extenders (CAT5-XT) and a self-powered USB hub. The self-powered USB hub allows you to extend the 6' (1.8 m) cable with a standard 16' (5 m) USB cable. Unifi 35 Projector with Self-Powered Internal USB Hub... -
Page 20: Complex Application 2 – Usb-Xt Extension Cable(S), Cat5-Xt Extender And Self-Powered Usb Hub
Complex Application 2 – USB-XT Extension Cable(s), CAT5-XT Extender and Self- Powered USB Hub You can extend the USB connection from the computer to CAT5-XT extender Unit B using a USB-XT extension cable. NOTE: You can’t use this configuration with Mac computers. Unifi 35 Projector with Self-Powered Internal Computer with... -
Page 21: Usb 2.0 Specification Primer
USB 2.0 Specification Primer You can use this section as a reference to common Universal Serial Bus 2.0 (USB 2.0) terms, rules and conventions. USB Terminology These definitions are derived from the Universal Serial Bus Specification, Version 2.0, and are used within this document. -
Page 22: Usb Topology
USB Topology The USB physical network is a tiered star topology. A hub is at the center of each star. Each wire segment is a point-to-point connection between the host and a hub or function, or a hub connected to another hub or function. This figure illustrates the topology of a USB network. Host Host (Tier 1) Root... -
Page 23: Usb Connectors And Cables
USB Connectors and Cables USB Connectors There are two types of full-size USB connectors: Series-A and Series-B. Either connector type can be a receptacle or a plug. • Series-A receptacles are used as outputs from host systems and hubs. • Series-B receptacles are used as inputs to hubs or devices. -
Page 24: Usb Cable Length
+ 16' (5 m) 16' (5 m) = 80' (25 m) NOTE: SMART Board 600i interactive whiteboard systems and SMART Board 600 series interactive whiteboards with the speaker option (SBA) are compound devices. Connecting a compound device and a host with an internal non-root hub further limits the maximum distance to: 4 ×... - Page 26 SMART Technologies Inc. Corporate Headquarters 1207 – 11 Avenue SW, Suite 300 Calgary, AB T3C 0M5 CANADA www.smarttech.com/support www.smarttech.com/contactsupport Support +1.403.228.5940 Toll Free 1.866.518.6791 (Canada/U.S.)
