TI
BOARD IDENTIFICATION:
BOARD TYPE:
LAMINATE TYPE:
LAMINATE THICKNESS:
COPPER THICKNESS:
COPPER PLATING OF HOLES:
MINIMUM HOLE DIAMETER
SILKSCREEN COMPONENT SIDE:
SILKSCREEN SOLDER SIDE:
SOLDER MASK COMPONENT SIDE:
SOLDER MASK SOLDER SIDE:
PROTECTIVE COATING:
ELECTRICAL TEST:
MANUFACTURED TO:
APERTURE TABLE:
BOARD SIZE:
COMMENTS:

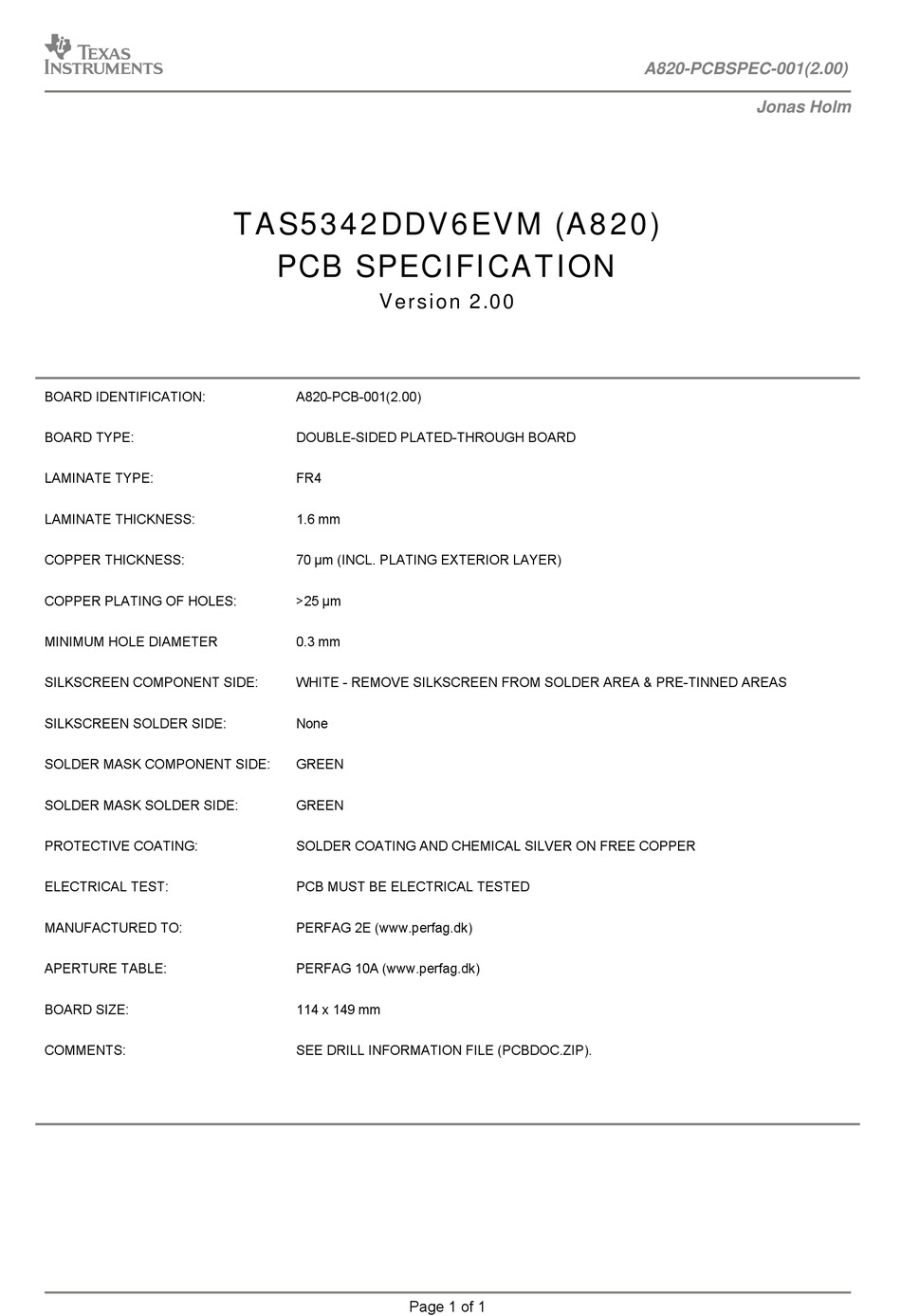

TAS5342DDV6EVM (A820)
PCB SPECIFICATION
Version 2.00
A820-PCB-001(2.00)
DOUBLE-SIDED PLATED-THROUGH BOARD
FR4
1.6 mm
70 μm (INCL. PLATING EXTERIOR LAYER)
>25 μm
0.3 mm
WHITE - REMOVE SILKSCREEN FROM SOLDER AREA & PRE-TINNED AREAS
None
GREEN
GREEN
SOLDER COATING AND CHEMICAL SILVER ON FREE COPPER
PCB MUST BE ELECTRICAL TESTED
PERFAG 2E (www.perfag.dk)
PERFAG 10A (www.perfag.dk)
114 x 149 mm
SEE DRILL INFORMATION FILE (PCBDOC.ZIP).
Page 1 of 1
A820-PCBSPEC-001(2.00)
Jonas Holm
