Qty Part Reference
1
R901
3
R900 R951 R952
3
R106 R206 R306
5
R90 R91 R315 R316 R317
R41 R42 R43 R44 R45 R46 R47 R48 R76
R77 R78 R79 R80 R81 R82 R83 R613
21
R616 R621
1
R18
3
R17 R21 R304
R100 R108 R109 R110 R200 R208 R209
12
R210 R300 R308 R309 R310
2
R617 R620
2
R10 R11
2
R612 R614
3
R105 R205 R305
R132 R133 R152 R153 R232 R233 R252
12
R253 R332 R333 R352 R353
5
R15 R16 R22 R618 R619
R24 R26 R27 R28 R29 R30 R31 R32 R33
R35 R36 R37 R38 R60 R61 R62 R63 R64
R65 R66 R67 R68 R69 R70 R71 R72 R73
29
R74 R75
3
C901 C953 C955
C133 C134 C153 C154 C233 C234 C253
13
C254 C334 C353 C900 C952 C954
4
C606 C607 C608 C609
4
C612 C613 C614 C615
C10 C13 C135 C136 C155 C156 C235
14
C236 C255 C256 C335 C336 C355 C356 Ceramic 10nF / 50V / 20% X7R 0603 Capacitor
C11 C12 C14 C15 C17 C21 C22 C25 C27
C28 C30 C60 C61 C101 C102 C104 C105
C106 C111 C201 C202 C204 C205 C206
C211 C301 C302 C304 C305 C306 C311
39
C611 C616 C617 C618 C620 C922 C923 Ceramic 100nF / 16V / 20% X7R 0603 Capacitor
C113 C115 C117 C119 C213 C215 C217
12
C219 C313 C315 C317 C319
C107 C108 C109 C110 C207 C208 C209
12
C210 C307 C308 C309 C310
C19 C139 C140 C159 C160 C239 C240
13
C259 C260 C339 C340 C359 C360
2
C23 C24
C16 C20 C26 C29 C62 C600 C619 C924
9
C925
6
C174 C175 C274 C275 C374 C375
1
C392
4
C132 C152 C232 C252
L130 L131 L150 L151 L230 L231 L250
12
L251 L330 L331 L350 L351
2
WJ332 WJ352
2
D10 D11
3
U100 U200 U300
1
U10
1
U601
1
U600
1
U908
1
U907
SCREW630 SCREW631 SCREW632
SCREW633 SCREW634 SCREW635
8
SCREW636 SCREW637
WASHER630 WASHER631 WASHER632
WASHER633 WASHER634 WASHER635
8
WASHER636 WASHER637
STANDOFF634 STANDOFF635
4
STANDOFF636 STANDOFF637
1
J902

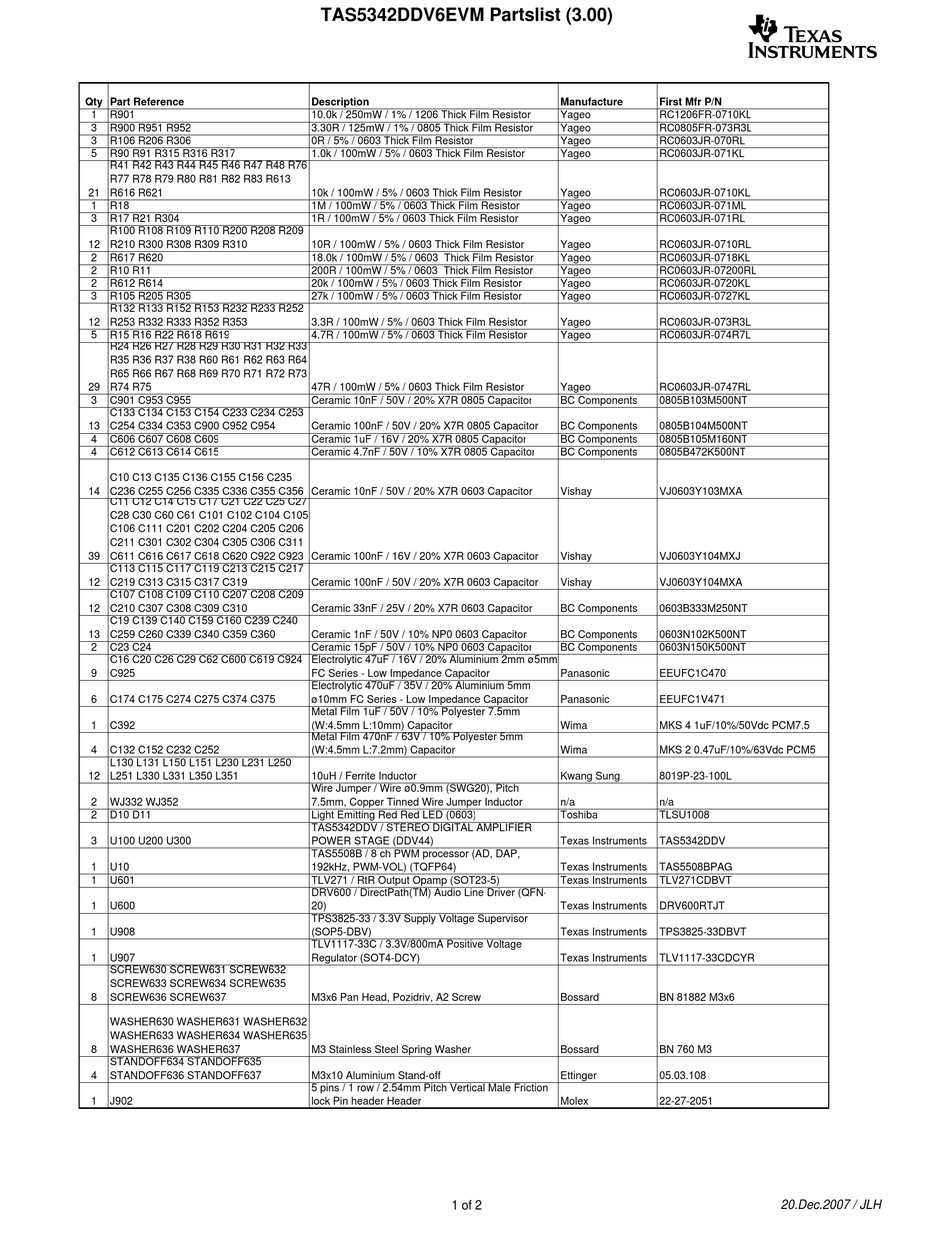

TAS5342DDV6EVM Partslist (3.00)
Description
10.0k / 250mW / 1% / 1206 Thick Film Resistor
3.30R / 125mW / 1% / 0805 Thick Film Resistor
0R / 5% / 0603 Thick Film Resistor
1.0k / 100mW / 5% / 0603 Thick Film Resistor
10k / 100mW / 5% / 0603 Thick Film Resistor
1M / 100mW / 5% / 0603 Thick Film Resistor
1R / 100mW / 5% / 0603 Thick Film Resistor
10R / 100mW / 5% / 0603 Thick Film Resistor
18.0k / 100mW / 5% / 0603 Thick Film Resistor
200R / 100mW / 5% / 0603 Thick Film Resistor
20k / 100mW / 5% / 0603 Thick Film Resistor
27k / 100mW / 5% / 0603 Thick Film Resistor
3.3R / 100mW / 5% / 0603 Thick Film Resistor
4.7R / 100mW / 5% / 0603 Thick Film Resistor
47R / 100mW / 5% / 0603 Thick Film Resistor
Ceramic 10nF / 50V / 20% X7R 0805 Capacitor
Ceramic 100nF / 50V / 20% X7R 0805 Capacitor
Ceramic 1uF / 16V / 20% X7R 0805 Capacitor
Ceramic 4.7nF / 50V / 10% X7R 0805 Capacitor
Ceramic 100nF / 50V / 20% X7R 0603 Capacitor
Ceramic 33nF / 25V / 20% X7R 0603 Capacitor
Ceramic 1nF / 50V / 10% NP0 0603 Capacitor
Ceramic 15pF / 50V / 10% NP0 0603 Capacitor
Electrolytic 47uF / 16V / 20% Aluminium 2mm ø5mm
FC Series - Low Impedance Capacitor
Electrolytic 470uF / 35V / 20% Aluminium 5mm
ø10mm FC Series - Low Impedance Capacitor
Metal Film 1uF / 50V / 10% Polyester 7.5mm
(W:4.5mm L:10mm) Capacitor
Metal Film 470nF / 63V / 10% Polyester 5mm
(W:4.5mm L:7.2mm) Capacitor
10uH / Ferrite Inductor
Wire Jumper / Wire ø0.9mm (SWG20), Pitch
7.5mm, Copper Tinned Wire Jumper Inductor
Light Emitting Red Red LED (0603)
TAS5342DDV / STEREO DIGITAL AMPLIFIER
POWER STAGE (DDV44)
TAS5508B / 8 ch PWM processor (AD, DAP,
192kHz, PWM-VOL) (TQFP64)
TLV271 / RtR Output Opamp (SOT23-5)
DRV600 / DirectPath(TM) Audio Line Driver (QFN-
20)
TPS3825-33 / 3.3V Supply Voltage Supervisor
(SOP5-DBV)
TLV1117-33C / 3.3V/800mA Positive Voltage
Regulator (SOT4-DCY)
M3x6 Pan Head, Pozidriv, A2 Screw
M3 Stainless Steel Spring Washer
M3x10 Aluminium Stand-off
5 pins / 1 row / 2.54mm Pitch Vertical Male Friction
lock Pin header Header
1 of 2
Manufacture
First Mfr P/N
Yageo
RC1206FR-0710KL
Yageo
RC0805FR-073R3L
Yageo
RC0603JR-070RL
Yageo
RC0603JR-071KL
Yageo
RC0603JR-0710KL
Yageo
RC0603JR-071ML
Yageo
RC0603JR-071RL
Yageo
RC0603JR-0710RL
Yageo
RC0603JR-0718KL
Yageo
RC0603JR-07200RL
Yageo
RC0603JR-0720KL
Yageo
RC0603JR-0727KL
Yageo
RC0603JR-073R3L
Yageo
RC0603JR-074R7L
Yageo
RC0603JR-0747RL
BC Components
0805B103M500NT
BC Components
0805B104M500NT
BC Components
0805B105M160NT
BC Components
0805B472K500NT
Vishay
VJ0603Y103MXA
Vishay
VJ0603Y104MXJ
Vishay
VJ0603Y104MXA
BC Components
0603B333M250NT
BC Components
0603N102K500NT
BC Components
0603N150K500NT
Panasonic
EEUFC1C470
Panasonic
EEUFC1V471
Wima
MKS 4 1uF/10%/50Vdc PCM7.5
Wima
MKS 2 0.47uF/10%/63Vdc PCM5
Kwang Sung
8019P-23-100L
n/a
n/a
Toshiba
TLSU1008
Texas Instruments
TAS5342DDV
Texas Instruments
TAS5508BPAG
Texas Instruments
TLV271CDBVT
Texas Instruments
DRV600RTJT
Texas Instruments
TPS3825-33DBVT
Texas Instruments
TLV1117-33CDCYR
Bossard
BN 81882 M3x6
Bossard
BN 760 M3
Ettinger
05.03.108
Molex
22-27-2051
ti
20.Dec.2007 / JLH
