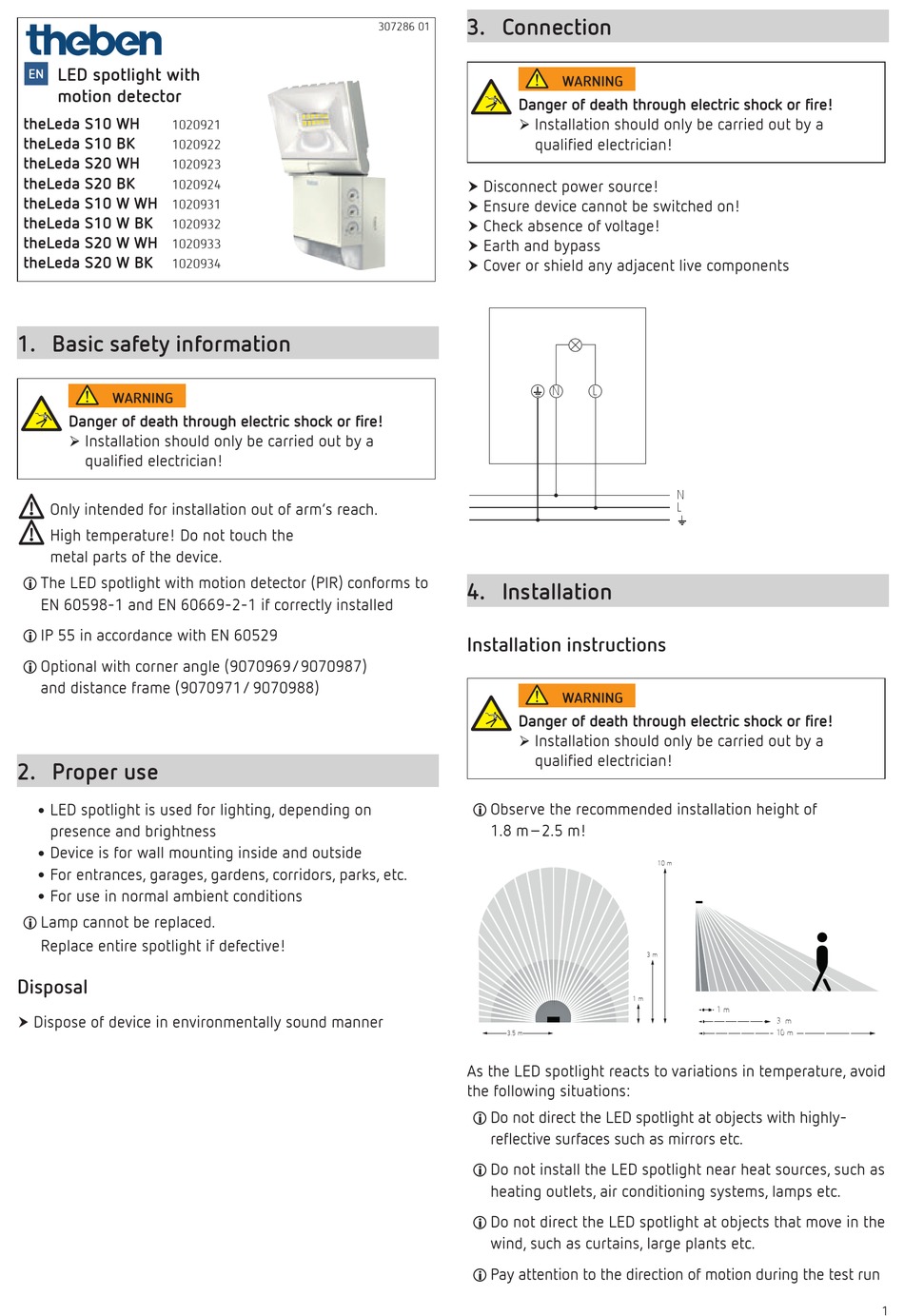

LED spotlight with
EN
motion detector
theLeda S10 WH
1020921
theLeda S10 BK
1020922
theLeda S20 WH
1020923
theLeda S20 BK
1020924
theLeda S10 W WH
1020931
theLeda S10 W BK
1020932
theLeda S20 W WH
1020933
theLeda S20 W BK
1020934
1. Basic safety information
WARNING
Danger of death through electric shock or fire!
Installation should only be carried out by a
¾
¾
qualified electrician!
!
Only intended for installation out of arm's reach.
!
High temperature! Do not touch the
metal parts of the device.
L The LED spotlight with motion detector (PIR) conforms to
EN 60598-1 and EN 60669-2-1 if correctly installed
L IP 55 in accordance with EN 60529
L Optional with corner angle (9070969/9070987)
and distance frame (9070971/ 9070988)
2. Proper use
•
LED spotlight is used for lighting, depending on
presence and brightness
•
Device is for wall mounting inside and outside
•
For entrances, garages, gardens, corridors, parks, etc.
•
For use in normal ambient conditions
L Lamp cannot be replaced.
Replace entire spotlight if defective!
Disposal
Dispose of device in environmentally sound manner
†
¾
3. Connection
307286 01
Danger of death through electric shock or fire!
Installation should only be carried out by a
¾
¾
qualified electrician!
Disconnect power source!
†
¾
Ensure device cannot be switched on!
†
¾
Check absence of voltage!
†
¾
Earth and bypass
†
¾
Cover or shield any adjacent live components
†
¾
4. Installation
Installation instructions
Danger of death through electric shock or fire!
Installation should only be carried out by a
¾
¾
qualified electrician!
L Observe the recommended installation height of
1.8 m–2.5 m!
3.5 m
As the LED spotlight reacts to variations in temperature, avoid
the following situations:
L Do not direct the LED spotlight at objects with highly-
reflective surfaces such as mirrors etc.
1 m
L Do not install the LED spotlight near heat sources, such as
heating outlets, air conditioning systems, lamps etc.
L Do not direct the LED spotlight at objects that move in the
wind, such as curtains, large plants etc.
L Pay attention to the direction of motion during the test run
WARNING
N
L
N
L
WARNING
10 m
3 m
1 m
1 m
3 m
10 m
10 m
3 m
1 m
3.5 m
3 m
10 m
1
