Summary of Contents for Datalogic GRYPHON BT100
- Page 1 GRYPHON™ BT Quick Reference...
-
Page 2: Reading Angle

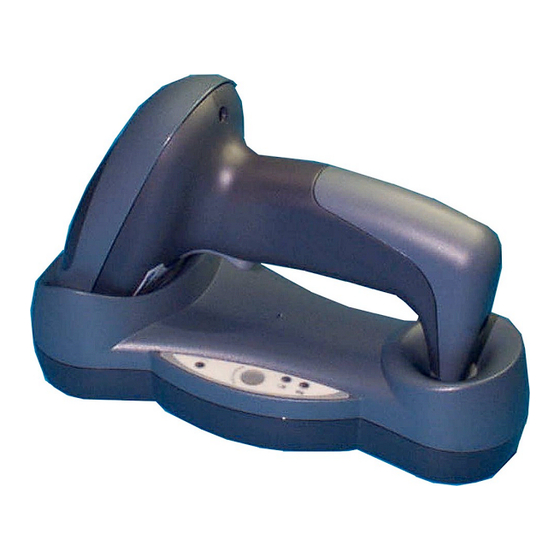

DATALOGIC UK/US USING GRYPHON™ BT SERIES READERS ® Gryphon™ BT series readers, together with a Bluetooth compatible remote device, build a Cordless Reading System for the collection, decoding and transmission of barcoded data. ® The Gryphon™ BT (Gryphon™ Bluetooth ) reader is a CCD wireless barcode scanner communicating in the 2.4 GHz ISM band and using the Serial Port... -
Page 3: Charging The Batteries
GRYPHON™ BT UK/US CHARGING THE BATTERIES By placing the reader onto the C-GRYPHON battery charger it is possible to charge the Gryphon™ BT batteries. Make sure the charging LED goes on. The LEDs positioned on the cradle signal the charge status, as described in the following table: STATUS On = C-GRYPHON is powered. - Page 4 DATALOGIC UK/US Changing the Batteries When the above procedure is no longer effective, the batteries must be changed. To change the batteries of your reader, unscrew the battery cover screw, replace the old batteries with new ones, then insert the cover in the handle and screw it back into place.
-
Page 5: Radio Connection
GRYPHON™ BT UK/US GRYPHON™ BT OPERATION RADIO CONNECTION Gryphon™ BT as Slave A Gryphon™ BT is Slave when it sends barcodes to a Master remote ® Bluetooth device such as a PC, Laptop, PDA, etc, which has initialized the communication. Once set as Slave, a Gryphon™... -
Page 6: Sleep State
DATALOGIC UK/US Gryphon™ BT as Master ® A Gryphon™ BT is Master when the remote Bluetooth device is Slave, i.e. ® with a Bluetooth barcode printer. Once set as Master, a Gryphon™ BT reader must be configured to recognize the address of the Slave device to which it wants to communicate. - Page 7 GRYPHON™ BT UK/US GRYPHON™ BT CONFIGURATION Configure the Gryphon™ BT by choosing one of the two procedures below and reading the codes in the given sequence. GRYPHON™ BT AS SLAVE Restore Gryphon™ BT default Set Gryphon™ BT as Slave YOUR READER IS NOW READY TO BE DISCOVERED (CONNECTED VIA ®...
- Page 8 DATALOGIC UK/US GRYPHON™ BT AS MASTER Note: for the hexadecimal character selection of step 4, use the table at the end of this manual. Restore Gryphon™ BT default Set Gryphon™ BT as Master Enter configuration ® Set Remote Bluetooth Device Address (slave) ®...
- Page 9 GRYPHON™ BT UK/US GRYPHON™ BT DEFAULT CONFIGURATION DATA FORMAT code identifier disabled, field adjustment disabled, code length tx not transmitted, character replacement disabled, address stamping = disabled, address delimiter = disabled. POWER SAVE scan rate 270 scans/s. READING PARAMETERS operating mode hand-held, hardware trigger, trigger active level, no timeout, Flash On = 1 sec, Flash Off = 0.6 sec, one read per cycle, safety time 0.5 sec, beeper intensity high, tone 2, beeper type monotone, beeper length short, good read spot duration medium, beeper control for radio response =...
-
Page 10: Radio Parameters
DATALOGIC UK/US ADVANCED FORMATTING PARAMETERS concatenation disabled, no advanced formats defined, Zebra printer formatting = disabled. RADIO PARAMETERS radio protocol timeout = 3 seconds, transmission retry = none, no ACK/NACK protocol nor frame packing, power-off timeout = 4 hours, user- friendly name = "Gryphon BTx00... - Page 11 GRYPHON™ BT UK/US SERIAL CONFIGURATION OPTIONS In addition to the battery charge function C-GRYPHON can be connected to a PC by means of an RS232 interface to send new configuration strings from the PC to the reader (i.e. using DL Sm@rtSet™), to upgrade application software onto the Gryphon™...
-
Page 12: Technical Features
Max. LED Output Power 0.33 mW LED Safety Class Class 1 EN 60825-1 Reading field see reading diagram (p.47) Max. resolution 0.076 mm, 3 mils PCS minimum 15% (Datalogic Test Chart) Radio Features ® ® Bluetooth Bluetooth version Profiles supported Serial Port Profile Working frequency 2.4000 to 2.4835 GHz... - Page 13 GRYPHON™ BT UK/US C-GRYPHON Electrical Features Supply voltage 9..28 Vdc Power consumption max. 8 W (charging) * Battery charging (red) Indicators Charge completed (green) Power (yellow) Time of recharge NiMh / NiCd batteries: 4 hours Environmental Features Working temperature 0° to +40 °C / 32° to 104 °F Storage temperature -20°...
-
Page 14: Troubleshooting
DATALOGIC UK/US TROUBLESHOOTING PROBLEM A beep or a LED blink signals an interruption of the radio communication with ® the remote Bluetooth device. SOLUTION ® • It is possible that the distance from the remote Bluetooth device is more than 10 m or that an obstacle interrupted the communication. - Page 15 GRYPHON™ BT UK/US PROBLEM ® The remote Bluetooth device discovers a Gryphon™ BT within its range of radio communication but is not able to communicate with it. SOLUTION • Make sure that: ® the remote Bluetooth device has not any communication protection (i.e.
-
Page 16: Services And Support
24 months from the date of shipment, provided that the product is operated under normal and proper conditions. Datalogic has the faculty to repair or replace the product, these provisions do not prolong the original warranty term. -
Page 17: Led Class
The batteries must be removed before opening the device. Modifications or changes to this equipment without the expressed written approval of Datalogic could void the authority to use the equipment. This device complies with PART 15 of the FCC Rules. Operation is... - Page 18 DATALOGIC UK/US GRYPHON™ BT SERIES GRYPHON BT100 (STANDARD) M100 (STD) - Reading Zones (10° skew angle) 0.13 mm (5 mils) CODE 39 CODE 39 EAN13 M=1 CODE 39 0.076 mm 0.13 mm 0.33 mm 0.50 mm (3 mils)
-
Page 19: Hex Numeric Table
GRYPHON™ BT UK/US HEX NUMERIC TABLE... - Page 20 Gerät declare que el GRYPHON BT100, Cordless bar code reader GRYPHON BT200, Cordless bar code reader e tutti i suoi modelli and all its models et tous ses modèles...
