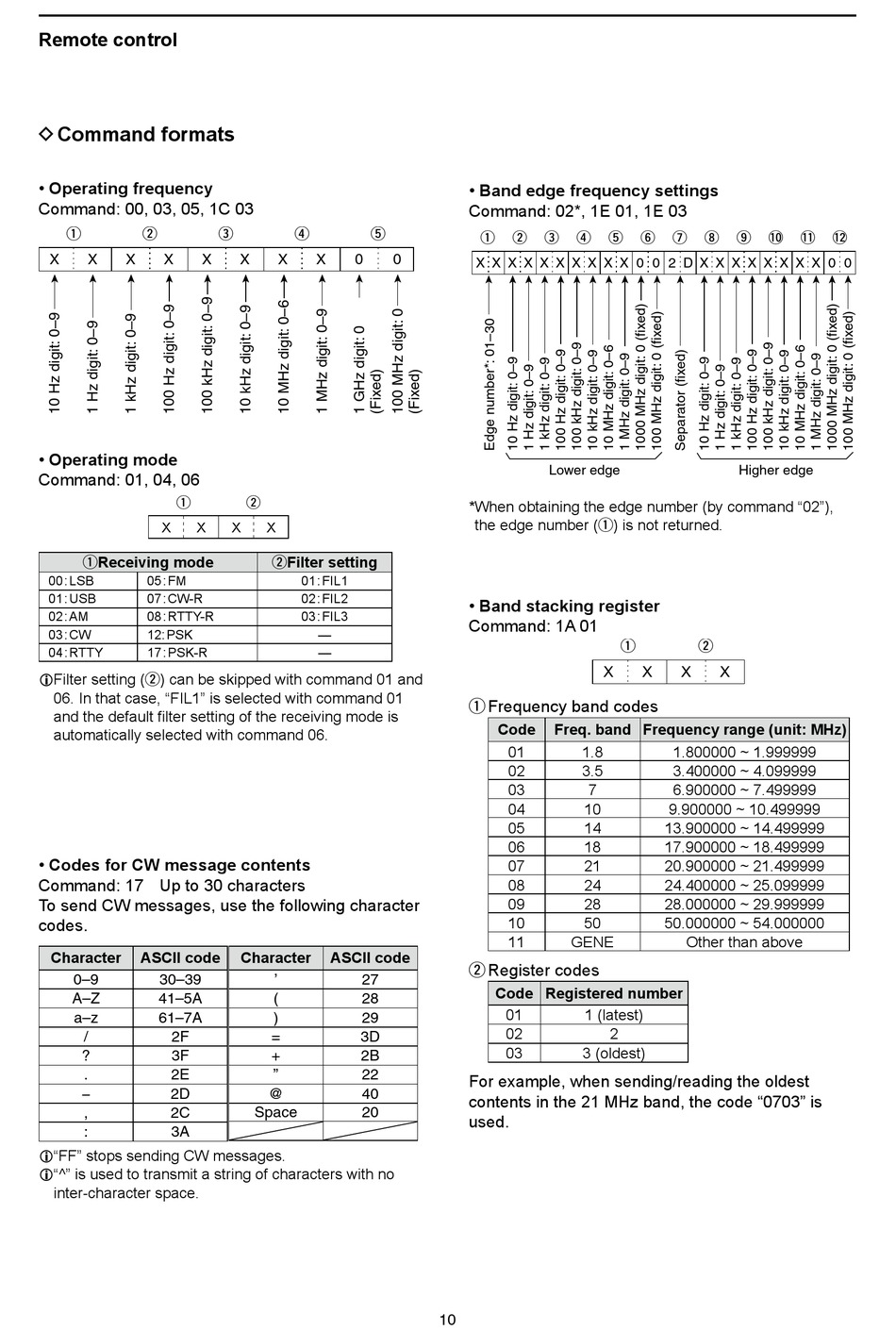

D Command Formats - Icom iC-7610 Reference Manual

Remote control

D Command formats

• Operating frequency
Command: 00, 03, 05, 1C 03
q w
X X X X X
• Operating mode
Command: 01, 04, 06
q
X X
qReceiving mode
00 :LSB 05 :FM
01 :USB 07 :CW-R
02 :AM 08 :RTTY-R
03 :CW 12:PSK
04 :RTTY 17 :PSK-R
L Filter setting (w) can be skipped with command 01 and
06. In that case, "FIL1" is selected with command 01
and the default filter setting of the receiving mode is
automatically selected with command 06.
• Codes for CW message contents
Command: 17 Up to 30 characters
To send CW messages, use the following character
codes.
Character ASCII code
0–9 30–39
A–Z 41–5A
a–z 61–7A
/ 2F
? 3F
. 2E
− 2D
, 2C
: 3A
L"FF" stops sending CW messages.
L "^" is used to transmit a string of characters with no
inter-character space.
e r t
X X X 0
w
X X
wFilter setting
01 :FIL1
02 :FIL2
03 :FIL3
—
—
Character ASCII code
' 27
( 28
) 29
= 3D
+ 2B
" 22
@ 40
Space 20
• Band edge frequency settings
Command: 02*, 1E 01, 1E 03
q w e
0
X X X X X X X X X X 0 0 2 D X X X X X X X X 0 0
Lower edge
* When obtaining the edge number (by command "02"),
the edge number (q) is not returned.
• Band stacking register
Command: 1A 01
q Frequency band codes
Code Freq. band Frequency range (unit: MHz)
01
02
03
04
05
06
07
08
09
10
11
w Register codes
Code Registered number
01
02
03
For example, when sending/reading the oldest
contents in the 21 MHz band, the code "0703" is
used.
10
r t y u i o
Higher edge
q w
X X X X
1.8 1.800000 ~ 1.999999
3.5 3.400000 ~ 4.099999
7 6.900000 ~ 7.499999
10 9.900000 ~ 10.499999
14 13.900000 ~ 14.499999
18 17.900000 ~ 18.499999
21 20.900000 ~ 21.499999
24 24.400000 ~ 25.099999
28 28.000000 ~ 29.999999
50 50.000000 ~ 54.000000
GENE Other than above
1 (latest)
2
3 (oldest)
!0 !1 !2
