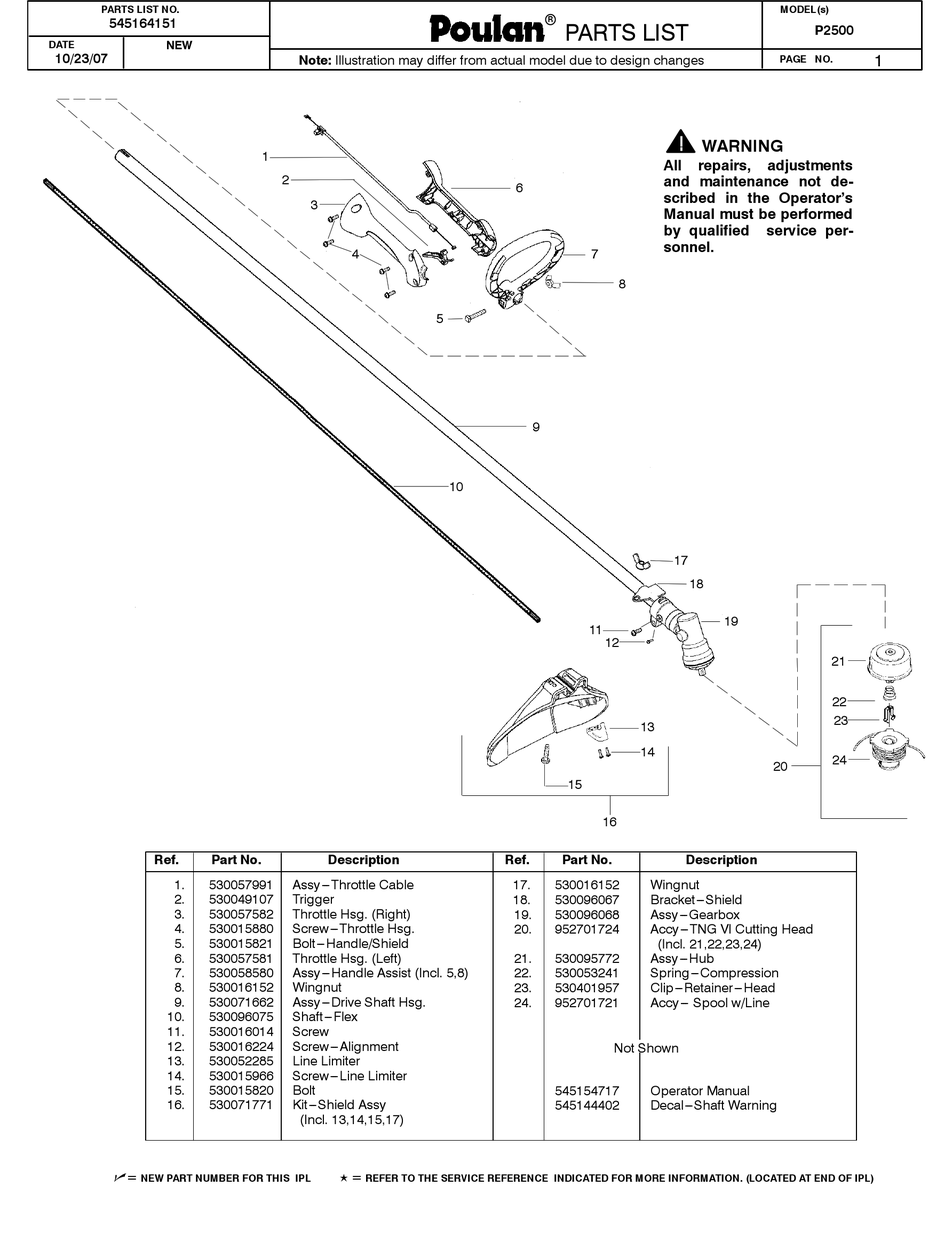

Poulan Pro 545164151 Parts List

PARTS LIST NO.
545164151
DATE NEW
10/23/07
Ref. Part No.
1. 530057991
2. 530049107
3. 530057582
4. 530015880
5. 530015821
6. 530057581
7. 530058580
8. 530016152
9. 530071662
10. 530096075
11. 530016014
12. 530016224
13. 530052285
14. 530015966
15. 530015820
16. 530071771
=
n NEW PART NUMBER FOR THIS IPL
PARAMOUNT
POULAN
POULAN PRO
Note: Illustration may differ from actual model due to design changes
1
2
3
4
5
Description
Assy--- Throttle Cable
Trigger
Throttle Hsg. (Right)
Screw--- Throttle Hsg.
Bolt--- Handle/Shield
Throttle Hsg. (Left)
Assy--- Handle Assist (Incl. 5,8)
Wingnut
Assy--- Drive Shaft Hsg.
Shaft--- Flex
Screw
Screw--- Alignment
Line Limiter
Screw--- Line Limiter
Bolt
Kit--- Shield Assy
(Incl. 13,14,15,17)
=
K REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
R R
R R

PARTS LIST

PARTS LIST
PARTS LIST
r
PARTS LIST
6
7
8
9
10
11
12
15
16
Ref. Part No.
17. 530016152
18. 530096067
19. 530096068
20. 952701724
21. 530095772
22. 530053241
23. 530401957
24. 952701721
Not Shown
545154717
545144402
MODEL(s)
P2500
PAGE NO.
WARNING
All repairs, adjustments
and maintenance not de-
scribed in the Operator's
Manual must be performed
by qualified service per-
sonnel.
17
18
19
13
14
20
Description
Wingnut
Bracket--- Shield
Assy--- Gearbox
Accy--- TNG VI Cutting Head
(Incl. 21,22,23,24)
Assy--- Hub
Spring --- Compression
Clip --- Retainer--- Head
Accy--- Spool w/Line
Operator Manual
Decal--- Shaft Warning
1
21
22
23
24
