Poulan Pro P2500 Instruction Manual

Hide thumbs Also See for P2500:
Table of Contents

Advertisement

Quick Links

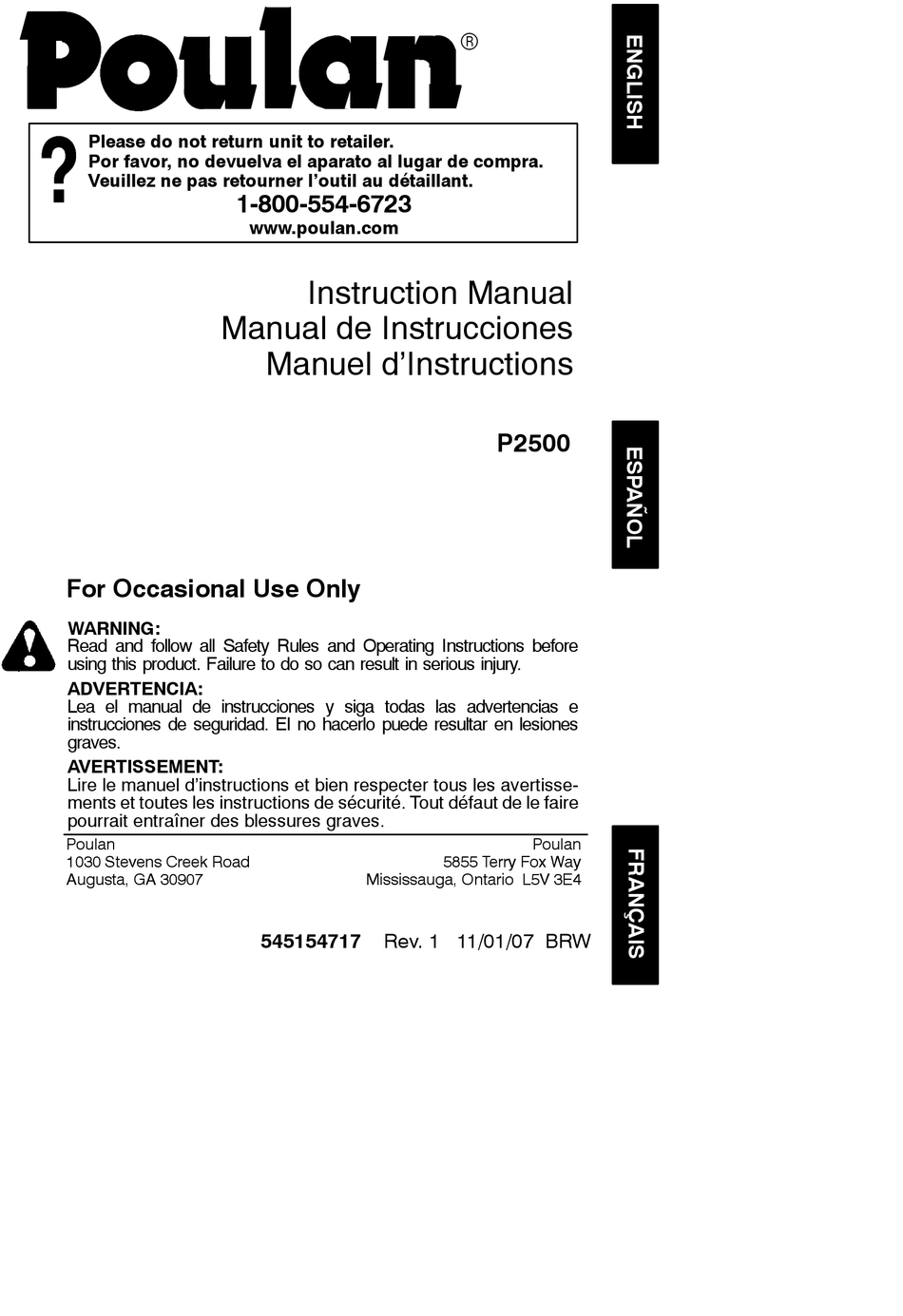

Please do not return unit to retailer.
Por favor, no devuelva el aparato al lugar de compra.
Veuillez ne pas retourner l'outil au détaillant.
Manual de Instrucciones
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en lesiones
graves.
AVERTISSEMENT:
Lire le manuel d'instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le faire
pourrait entraîner des blessures graves.
Poulan
1030 Stevens Creek Road
Augusta, GA 30907
1-800-554-6723
www.poulan.com
Instruction Manual
Manuel d'Instructions
Mississauga, Ontario L5V 3E4
545154717
Rev. 1 11/01/07 BRW
R
P2500
Poulan
5855 Terry Fox Way

Advertisement

Table of Contents
loading

Related Manuals for Poulan Pro P2500

Summary of Contents for Poulan Pro P2500

  • Page 1 Veuillez ne pas retourner l’outil au détaillant. 1-800-554-6723 www.poulan.com Instruction Manual Manual de Instrucciones Manuel d’Instructions P2500 For Occasional Use Only WARNING: Read and follow all Safety Rules and Operating Instructions before using this product. Failure to do so can result in serious injury. ADVERTENCIA: Lea el manual de instrucciones y siga todas las advertencias e instrucciones de seguridad.

  • Page 2: Identification Of Safety Symbols

    IDENTIFICATION OF SAFETY SYMBOLS DANGER: Use only specified trimmer head, spool, and 0.080 inch (2 mm) recommended trim- mer line. Never use blades, flailing devices, wire, rope, string, etc. Unit is designed for line trimmer use only. Failure to follow these instructions may result in serious injury.

  • Page 3: Safety Rules

    IDENTIFICATION OF SAFETY SYMBOLS Store unit indoors in a high, dry place out of the reach of children. When servicing unit, use only identical replace- ment parts. Always stop unit and disconnect spark plug before cleaning or servicing. WARNING: Fire hazard. Never mix, pour, or store gasoline or use the unit near a flame or sparks (including smoking, open flames, or work that can cause sparks).

  • Page 4: Operator Safety

    OPERATOR SAFETY Stop engine and allow to cool before remov- ing fuel cap. Dress properly. Always wear safety glasses Always store gasoline in a container ap- or similar eye protection when operating, or proved for flammable liquids. performing maintenance, on your unit (safety glasses are available).

  • Page 5: Adjusting The Handle

    ton require by law that many internal combus- For normal homeowner use, the muffler and tion engines be equipped with a spark arresting spark arresting screen will not require any ser- screen. If you operate in a locale where such vice.

  • Page 6: Operation

    OPERATION KNOW YOUR TRIMMER READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT. Compare the illustrations with your unit to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference. Muffler Assist Handle Trimmer Shaft...

  • Page 7: Starting A Warm Engine

    5. Pull starter rope handle sharply until engine HELPFUL TIP sounds as if it is trying to start, but do not pull rope more than 6 times. If your engine switch reads 6. As soon as engine sounds as if it is trying to “push to stop”, it is always start, move choke lever to HALF CHOKE in the ON position.

  • Page 8: Operating Position

    OPERATING INSTRUCTIONS WARNING: Use only 0.080 inch (2 It is recommended that the engine not be mm) diameter line. Other sizes of line will not operated for longer than 1 minute at full advance properly and will result in improper throttle.

  • Page 9: Maintenance

    SCALPING - - The scalping technique re- moves unwanted vegetationdown to the ground. Hold the bottom of the trimmer head about 3 inches (8 cm) above the ground and at an angle. Allow the tip of the line to strike the ground around trees, posts, monuments, etc.

  • Page 10: Service And Adjustments

    Button For normal homeowner use, however, the muffler and spark arresting screen will not re- quire any service. After 50 hours of use, we Air Filter recommend that your muffler be serviced or replaced by your authorized service dealer. REPLACE SPARK PLUG Replace the spark plug each year to ensure the engine starts easier and runs better.

  • Page 11: Seasonal Storage

    Idle Speed Adjustment If you require further assistance or are unsure about performing this procedure, contact an Allow engine to idle. Adjust speed until engine authorized service dealer call runs without stalling (idle speed too slow). 1- -800- -554- -6723. S Turn idle speed screw clockwise to in- crease engine speed if engine stalls or dies.
  • Page 12 TROUBLESHOOTING TABLE WARNING: Always stop unit and disconnect spark plug before performing all of the recommended remedies below except remedies that require operation of the unit. TROUBLE CAUSE REMEDY Engine will not 1. Engine flooded. 1. See “Starting a Flooded Engine in start.

  • Page 13: Limited Warranty

    LIMITED WARRANTY Poulan, a division of Husqvarna Outdoor In Canada, contact: Products Inc., warrants to the original consumer Poulan purchaser that each new Poulan brand 5855 Terry Fox Way gasoline tool or attachment is free from defects Mississauga,Ontario L5V3E4 in material and workmanship and agrees to Giving the model number, serial number and repair or replace under this warranty any date of purchase of your product and the name...
  • Page 14 neglect, improper maintenance, unapproved the determination that a warranted part is de- modifications, or the use of parts not made or fective if the diagnostic work is performed at approved by the original equipment manufac- an approved Poulan servicing center. CON- turer.
