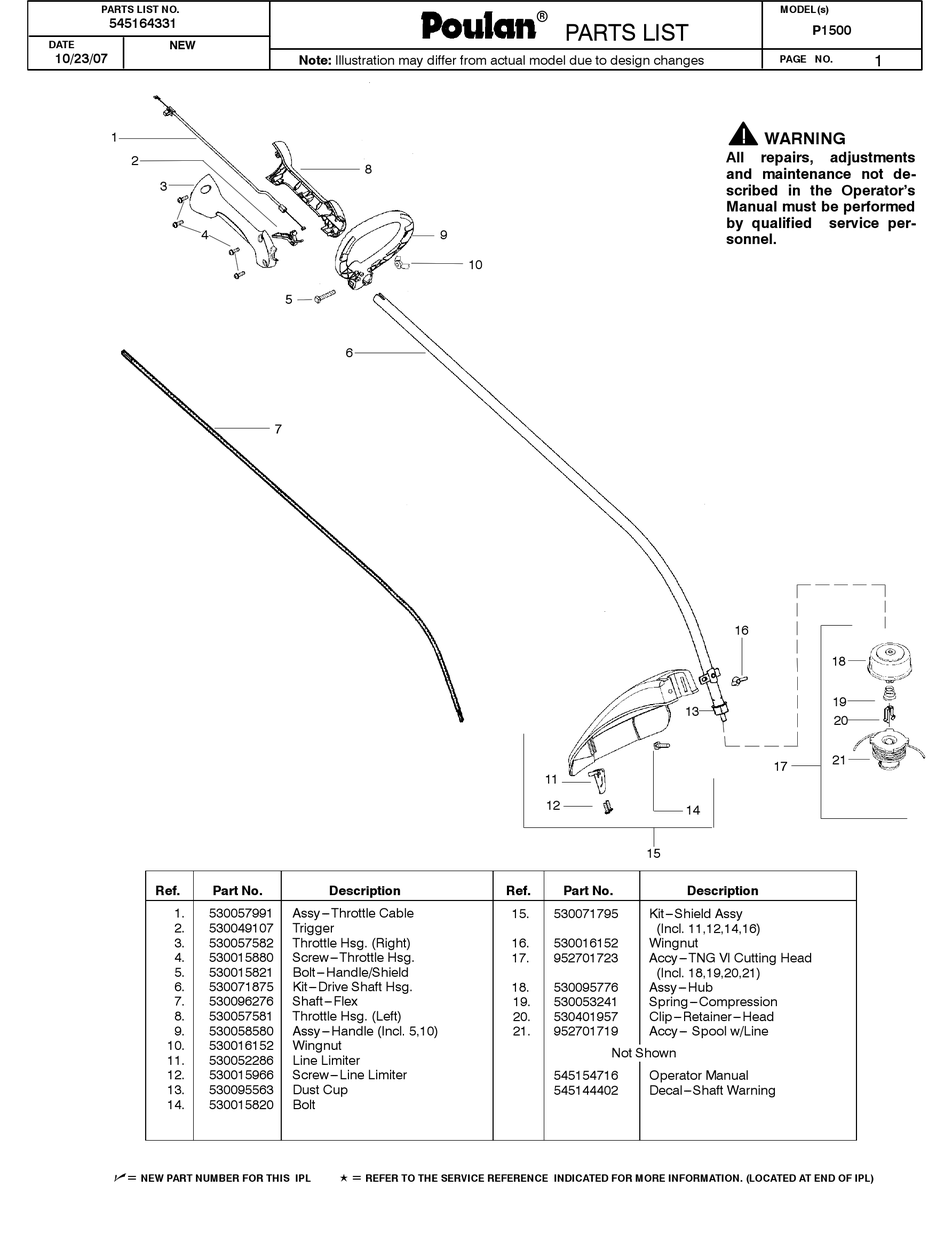

Poulan Pro 545164331 Parts List

PARTS LIST NO.
545164331
DATE NEW
10/23/07
1
2
3
4
Ref. Part No.
1. 530057991
2. 530049107
3. 530057582
4. 530015880
5. 530015821
6. 530071875
7. 530096276
8. 530057581
9. 530058580
10. 530016152
11. 530052286
12. 530015966
13. 530095563
14. 530015820
=
n NEW PART NUMBER FOR THIS IPL
PARAMOUNT
POULAN
POULAN PRO
Note: Illustration may differ from actual model due to design changes
8
9
5
6
7
Description
Assy--- Throttle Cable
Trigger
Throttle Hsg. (Right)
Screw--- Throttle Hsg.
Bolt--- Handle/Shield
Kit--- Drive Shaft Hsg.
Shaft--- Flex
Throttle Hsg. (Left)
Assy--- Handle (Incl. 5,10)
Wingnut
Line Limiter
Screw--- Line Limiter
Dust Cup
Bolt
=
K REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
R R
R R

PARTS LIST

PARTS LIST r
PARTS LIST
PARTS LIST
10
11
12
15
Ref. Part No.
15. 530071795
16. 530016152
17. 952701723
18. 530095776
19. 530053241
20. 530401957
21. 952701719
Not Shown
545154716
545144402
MODEL(s)
P1500
PAGE NO.
WARNING
All repairs,
and maintenance not de-
scribed in the Operator's
Manual must be performed
by qualified service per-
sonnel.
16
13
17
14
Description
Kit--- Shield Assy
(Incl. 11,12,14,16)
Wingnut
Accy--- TNG VI Cutting Head
(Incl. 18,19,20,21)
Assy--- Hub
Spring --- Compression
Clip --- Retainer--- Head
Accy--- Spool w/Line
Operator Manual
Decal--- Shaft Warning
1
adjustments
18
19
20
21
