Poulan Pro 530163900 Instruction Manual

Poulan pro gas hedge trimmer instruction manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

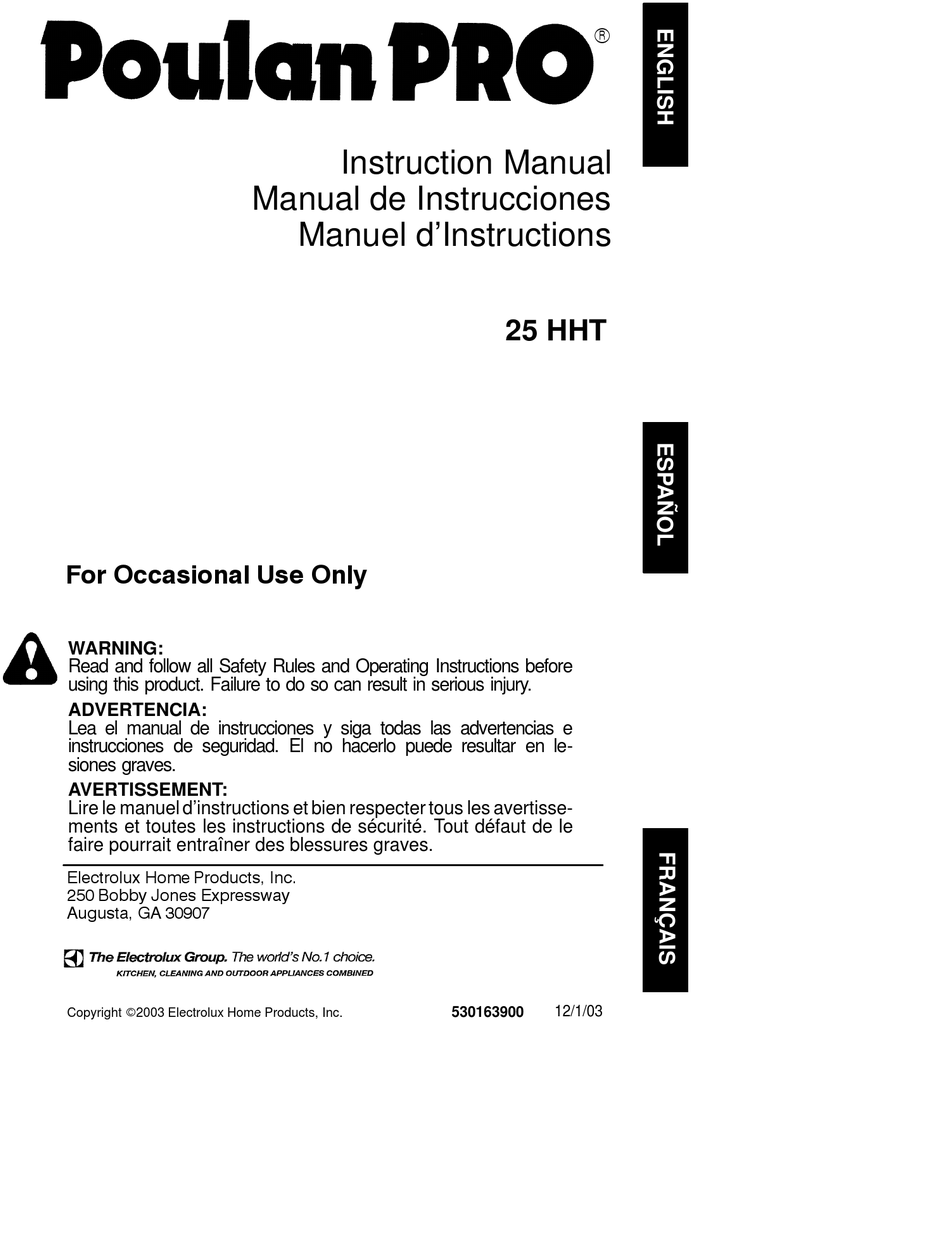

Manual de Instrucciones
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en le-
siones graves.
AVERTISSEMENT:
Lire le manuel d'instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le
faire pourrait entraîner des blessures graves.
Electrolux Home Products, Inc.
250 Bobby Jones Expressway
Augusta, GA 30907
Copyright E2003 Electrolux Home Products, Inc.
Instruction Manual
Manuel d'Instructions
25 HHT
530163900
R
12/1/03

Advertisement

Table of Contents
loading

Related Manuals for Poulan Pro 530163900

Summary of Contents for Poulan Pro 530163900

  • Page 1 Lire le manuel d’instructions et bien respecter tous les avertisse- ments et toutes les instructions de sécurité. Tout défaut de le faire pourrait entraîner des blessures graves. Electrolux Home Products, Inc. 250 Bobby Jones Expressway Augusta, GA 30907 Copyright E2003 Electrolux Home Products, Inc. 25 HHT 530163900 12/1/03...

  • Page 2: Safety Rules

    SAFETY RULES WARNING: Failure to follow all Safety Rules and Precautions can result in serious injury. DANGER: THIS POWER TOOL CAN BE DANGEROUS! This unit can cause serious injury including amputation or blindness to the operator and others. The warnings and safety instructions in this manual must be followed to provide reasonable safety and efficiency in us- ing this unit.

  • Page 3: Safety Notice

    Finding fuel or oil residue on muffler is normal due to carburetor adjustments and testing done by the manufacturer. ASSEMBLY Your hedge trimmer is fully assembled; no as- sembly is required.

  • Page 4: Operation

    2-cycle air- cooled engine oil designed to be mixed at a ratio of 40:1. Poulan/Weed Eater brand synthetic oil is recommended. A 40:1 ratio is obtained by mixing 3.2 ounces (95 ml) of oil with 1 gallon (4...
  • Page 5 S Use the minimum throttle speed necessary to effectively cut hedges for optimal hedge trimmer performance. S Never attempt to use this hedge trimmer to cut hedges that have any branches with a diameter larger than 5/8" (1.5 cm). OPERATING POSITION...
  • Page 6 STARTING A WARM ENGINE 1. Move the ON/OFF switch to the ON posi- tion. 2. Slowly press the primer bulb 6 times. 3. Move the choke lever to the HALF CHOKE position. 4. Engage the throttle lock as directed in STARTING A COLD ENGINE.

  • Page 7: Carburetor Adjustment

    Make adjustments with the unit resting on a level surface free of debris that can be caught in the hedge trimmer blade. Serious injury to the operator and others can occur if the carburetor is not properly adjusted. Keep all parts of your body away from the blade and muffler.
  • Page 8 NOTE: After adjustment, the washers be- tween the bolt head and the blade should be able to be turned by hand, but not loose enough to move when the unit is tilted from side to side. CAUTION: If the clearance between the cutting blades is set too wide, the blades will not cut correctly.

  • Page 9: Need Assistance

    ENGINE S Remove spark plug and pour 1 teaspoon of 40:1, 2-cycle engine oil (air cooled) through the spark plug opening. Slowly pull the starter rope 8 to 10 times to distribute oil. S Replace spark plug with new one of recom- mended type and heat range (see RE- PLACE SPARK PLUG section).

  • Page 10: Limited Warranty

    LIMITED WARRANTY ELECTROLUX HOME PRODUCTS, INC., warrants to the original purchaser that each new Poulan PROr brand gasoline tool or attach- ment is free from defects in material and work- manship and agrees to repair or replace under this warranty any defective gasoline product or attachment as follows from the original date of purchase.
  • Page 11 ing center. If you have any questions regard- ing your warranty rights and responsibilities, you should contact your nearest authorized service center or call ELECTROLUX HOME PRODUCTS, INC., at 1- -800- -554- -6723 WARRANTY PERIOD: Any warranted part which is not scheduled for replacement as re- quired maintenance, or which is scheduled only for regular inspection to the effect of “re- pair or replace as necessary”...
