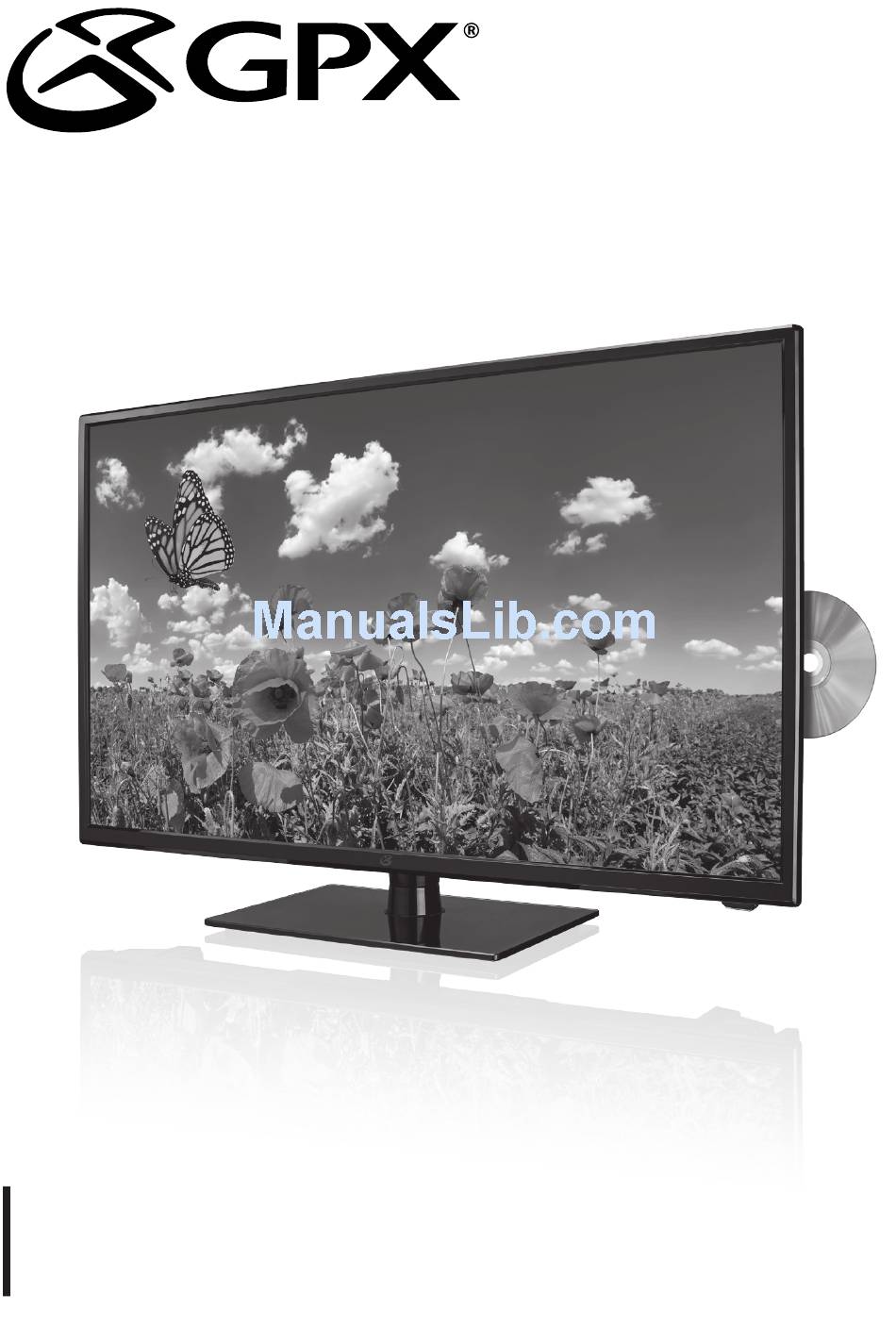

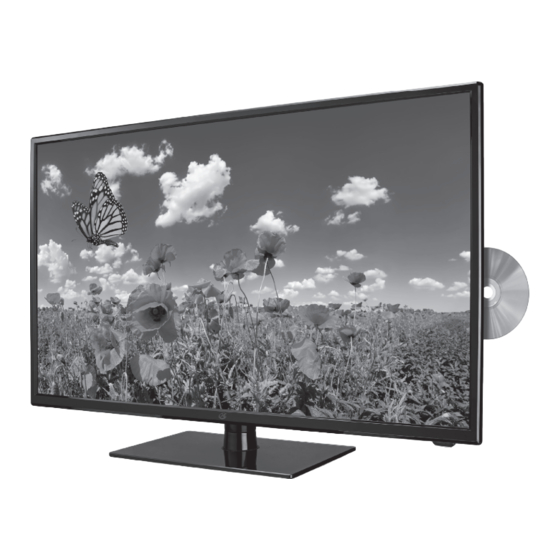

- Page 1 32" LED HDTV + DVD User’s Guide for Model TDE3274 v2011-01 For the most up-to-date version of this User’s Guide, go to www.gpx.com...
-
Page 2: Important Safety Instructions
Safety Instructions & Warnings Important Safety Instructions WARNING: To reduce the risk of electric CAUTION RISK OF ELECTRIC SHOCK shock, do not remove cover (or back). No DO NOT OPEN • Read these Instructions. user-serviceable parts inside. Refer servicing ATTENTION •... - Page 3 FCC Warnings Additional Warnings and Precautions Warning: Changes or modifications to this unit not expressly • CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH approved by the party responsible for compliance could void the WIDE BLADE OF PLUG TO WIDE SLOT, FULLY user’s authority to operate the equipment.
-
Page 4: Table Of Contents
Table of Contents Specifications & Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �5 Specifications Includes Inputs... -
Page 5: Specifications & Information
Specifications & Information Specifications Inputs • 32" DLED display • 2 HDMI • Display supports: 720p, 1080i, 1080p • Component video • 1920x1080 native resolution • Composite video • DVD player: DVD, DVD±R/RW with up convert to • VGA/PC 1080p •... -
Page 6: Setup
Setup Connecting the Stand Connect the stand to the mounting base and tighten the screws by hand with a phillips-head screwdriver. Do not use a power drill to tighten the screws, as it could cause damage to the stand. Place the TV on a towel or blanket when connecting the stand. Do not to place the TV on a surface that will scratch or damage the TV housing or screen. -
Page 7: Power
Power Plug the power cord into a standard power outlet. Remote Batteries Requires 2 AAA-size batteries (included). -
Page 8: Overview
Overview TV Controls & Inputs CD/DVD Player USB Port Memory Card Ports Play/Pause/Eject Headphone Jack Component Stereo Audio Output Video Input Setup/Source Optical Audio TV Antenna/ (Y/Pb/Pr) Cable Input Output Channel -/+ Stereo Audio Input PC Audio Input Volume -/+ (3.5mm) Composite Power... -
Page 9: Remote Control
Remote Control Power Mute Press to power the Press to mute audio. television ON or OFF. Freeze Display Press to freeze or unfreeze the Press to view the on- current frame in TV mode. screen display. Sleep Aspect Press to set the sleep timer. Press to adjust the aspect After the set time has ratio between ZOOM, WIDE,... -
Page 10: Connecting Devices To Your Tv
Connecting Devices to Your TV Connecting Cable TV or a TV Antenna Requires a cable TV or "over-the-air" TV antenna wire (not included). 1. Connect the Cable/Antenna wire to the input on the television. 2. Press the Source button to switch to TV mode. 3. - Page 11 Connecting Cable TV or a TV Antenna - Rear View Connecting HDMI - Rear View Connecting Component (YPbPr) Cables - Rear View...
-
Page 12: Connecting Composite Audio/Video
Connecting Devices to Your TV Connecting Composite Audio/Video Requires composite video (yellow) and RCA stereo (red/white) cables (not included). 1. Connect the video output on your media device to the corresponding color coded video inputs on the television with a Composite Video cable. 2. - Page 13 Connecting Composite Audio/Video- Rear View Connecting a Computer- Rear View Connecting Optical Audio - Rear View...
-
Page 14: Connecting The Stereo Audio Output
Connecting Devices to Your TV Connecting the Stereo Audio Output Requires an RCA audio cable (not included). NOTE: The Stereo Audio Output on the TV sends a fixed audio volume level to any connected audio device. To adjust the volume you must change it from the connected audio device, adjusting the volume of the TV will have no effect. 1. -
Page 15: Connecting The Stereo Audio Output
Connecting the Stereo Audio Output - Rear View... -
Page 16: Dvd & Cd
DVD & CD Playing a DVD or CD Note: This unit is not compatible with MP3 CDs. 1. Insert a DVD or CD into the slot-load disc drive, with the label side facing toward you. Once a DVD or CD is loaded into the television, the TV will automatically switch to DVD mode 2. -
Page 17: Usb & Sd, Mmc, Ms Memory Card
USB & SD, MMC, MS Memory Card Using a USB Thumb Drive 1. Load a USB thumb drive into the USB Port on the side of the television. 2. Press the Source button to switch to USB mode. 3. Use the Arrow and Enter buttons to select and play content from the connected USB thumb drive. -
Page 18: Settings
Settings Auto Scanning for Channels The Auto Channel Scan must be run before any channels can be viewed on the television. Initial channel scanning process may take up to 15 min. 1. Press the Source button to switch to TV mode. 2. -
Page 19: Customer Support
Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: www.gpx.com Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des questions fréquemment posées, consultez la rubrique d’assistance sur: www.gpx.com Made Green...
