23. WAN
• When using a single physical Frame Relay interface and connecting to the RX1500 with multiple
DLCIs with mixed Cisco and IETF encapsulations, enable IETF encapsulation as follows. The text
in [square brackets] indicates the type of encapsulation set by the command; do not type the text
in [square brackets]:
Cisco(config)#interface serial0/0
Cisco(config-if)#encap frame
Cisco(config-if)#frame map ip ipaddress dlci{n} broadcast
[Cisco]
Cisco(config-if)#frame map ip ipaddress dlci{n} ietf
broadcast [IETF]
Cisco(config-if)#frame map ip ipaddress dlci{n} ietf
broadcast [IETF]
Where
ipaddress
number within the range of 16 to 1007.
23.2. WAN Configuration

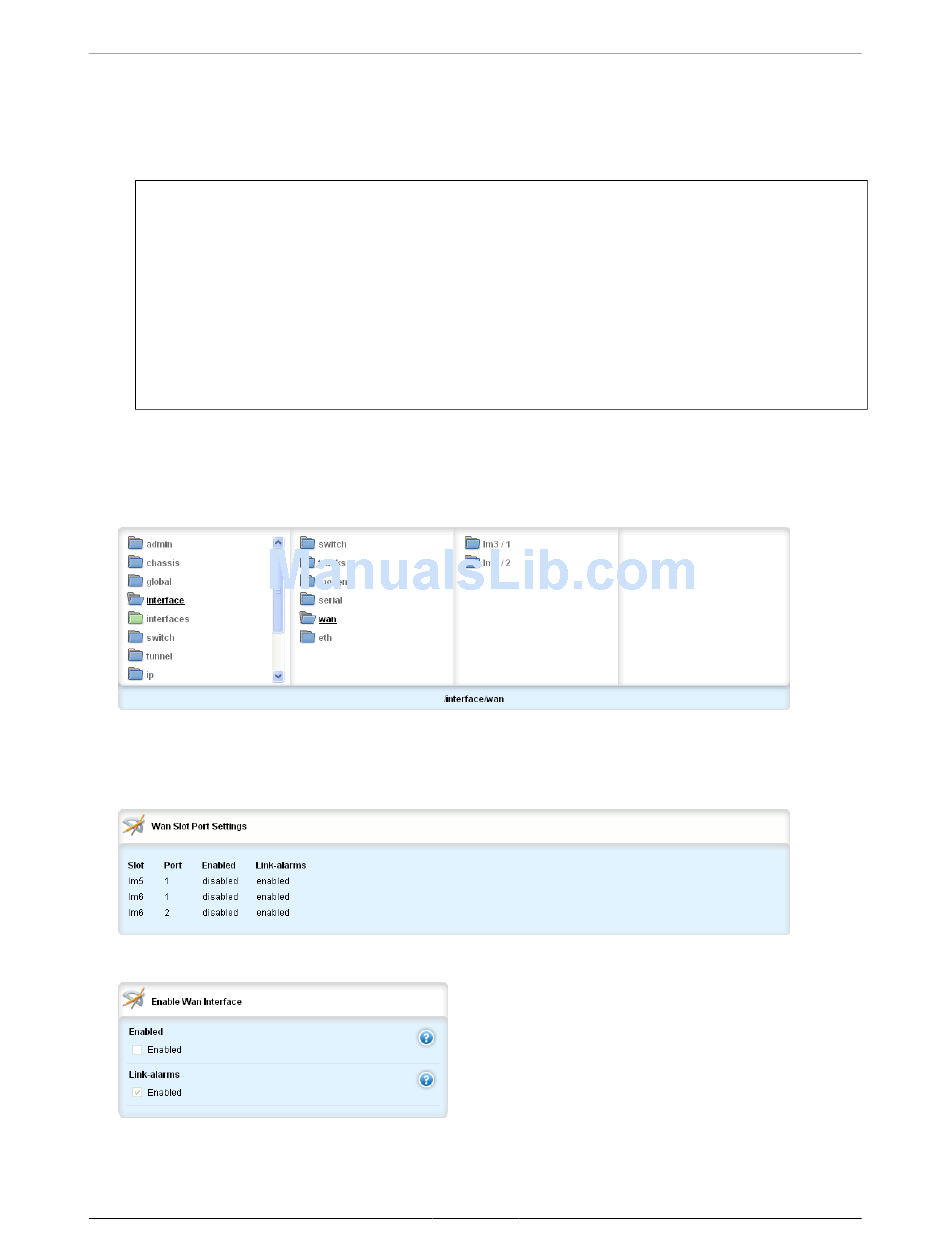

Figure 23.1. WAN menu
To display the WAN menu, navigate to interface/wan. The WAN Slot Port Settings table appears on
the same page as the WAN menu.
Figure 23.2. Interface WAN Slot Port Settings table
Figure 23.3. Enable WAN Interface form
ROX™ v2.2 User Guide
.
.
.
is the remote IP address, and
is a Data Link Connection Identifier
dlci{n}
238
RuggedBackbone™ RX1500
