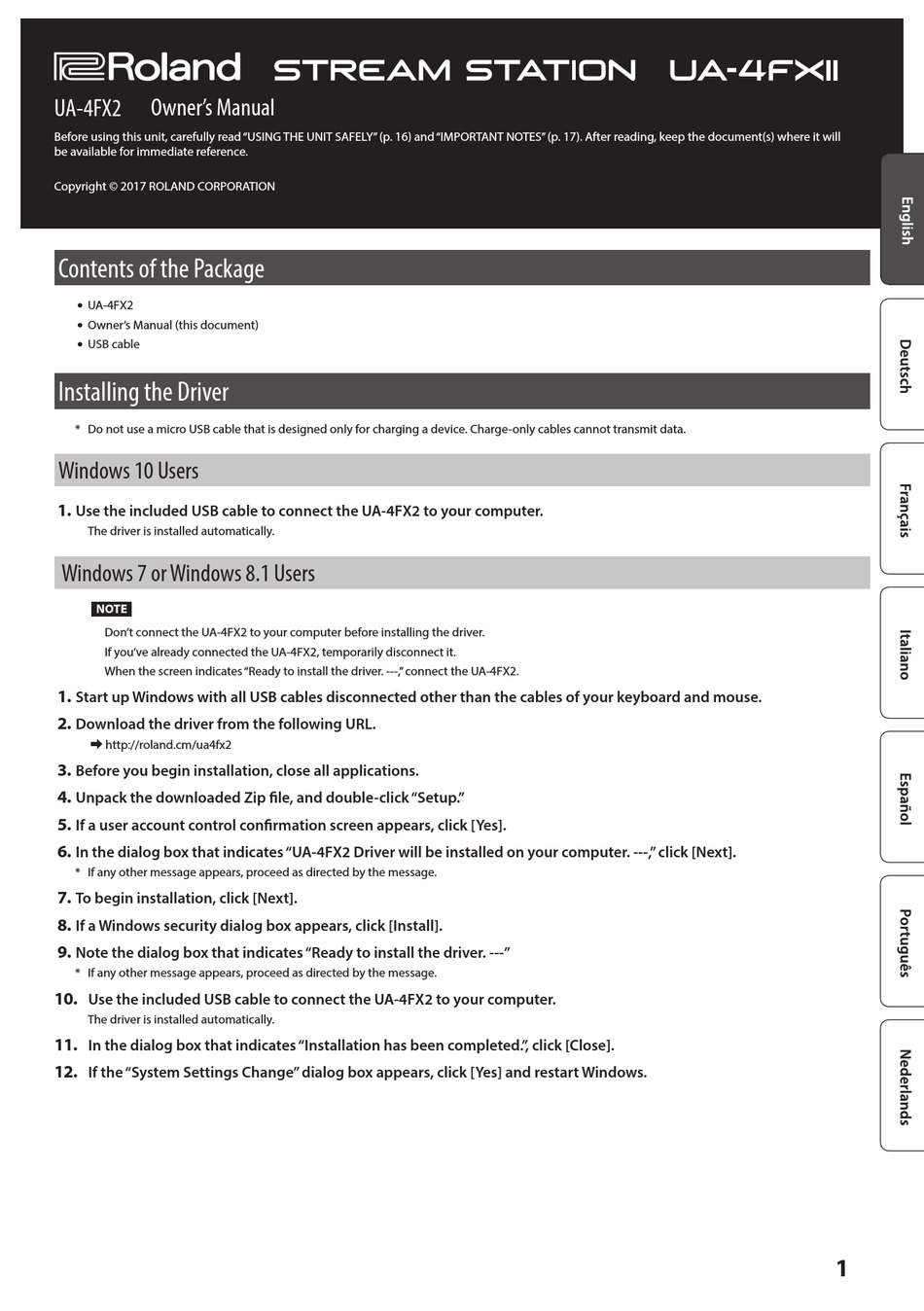

Owner's Manual
UA-4FX2
Before using this unit, carefully read "USING THE UNIT SAFELY" (p. 16) and "IMPORTANT NOTES" (p. 17). After reading, keep the document(s) where it will
be available for immediate reference.
Copyright © 2017 ROLAND CORPORATION
Contents of the Package
5 UA-4FX2
5 Owner's Manual (this document)
5 USB cable
Installing the Driver
* Do not use a micro USB cable that is designed only for charging a device. Charge-only cables cannot transmit data.
Windows 10 Users
1.
Use the included USB cable to connect the UA-4FX2 to your computer.
The driver is installed automatically.
Windows 7 or Windows 8.1 Users
NOTE
Don't connect the UA-4FX2 to your computer before installing the driver.
If you've already connected the UA-4FX2, temporarily disconnect it.
When the screen indicates "Ready to install the driver. ---, " connect the UA-4FX2.
1.
Start up Windows with all USB cables disconnected other than the cables of your keyboard and mouse.
2.
Download the driver from the following URL.
&http://roland.cm/ua4fx2
3.
Before you begin installation, close all applications.
4.
Unpack the downloaded Zip le, and double-click "Setup."
5.
If a user account control con rmation screen appears, click [Yes].
6.
In the dialog box that indicates "UA-4FX2 Driver will be installed on your computer. ---," click [Next].
* If any other message appears, proceed as directed by the message.
7.
To begin installation, click [Next].
8.
If a Windows security dialog box appears, click [Install].
9.
Note the dialog box that indicates "Ready to install the driver. ---"
* If any other message appears, proceed as directed by the message.
10.
Use the included USB cable to connect the UA-4FX2 to your computer.
The driver is installed automatically.
11.
In the dialog box that indicates "Installation has been completed.", click [Close].
12.
If the "System Settings Change" dialog box appears, click [Yes] and restart Windows.
1

Advertisement

Table of Contents
loading

Related Manuals for Roland UA-4FX2

Summary of Contents for Roland UA-4FX2

  • Page 1 If a user account control con rmation screen appears, click [Yes]. In the dialog box that indicates “UA-4FX2 Driver will be installed on your computer. ---,” click [Next]. * If any other message appears, proceed as directed by the message.

  • Page 2: Mac Users

    Open “Control Panel,” click [Hardware and Sound], and then click [Sound]. If the “View” is [Large Icons] or [Small Icons], double-click [Sound]. Click the [Playback] tab, click the UA-4FX2’s [OUT], and then click the [Set Default] button. Right-click the UA-4FX2’s “OUT,” and click [Test] to verify that you hear sound.

  • Page 3: Panel Descriptions

    For details on the speci cations of your mic, refer to the owner’s manual of your mic. (The UA-4FX2’s phantom power supply: DC48 V, 6 mA Max) USB port Use the included USB cable to connect this to your [MIC/GUITAR] switch computer so that audio signals can be sent and received.
  • Page 4 USB indicator These LEDs light according to the level of the signal that is This is lit if the UA-4FX2 is connected to your computer via input via the input jacks or output via the output jacks. If a USB cable.

  • Page 5: Connecting Input Devices

    3. Lower the volume NOTE 5 When you connect the UA-4FX2 to your computer, sound is no longer output from the speakers of your computer. Connect your headphones or audio playback system (external monitors) to the UA-4FX2. 5 If you want to play sound through the speakers of the computer, disconnect the UA-4FX2 from the computer.
  • Page 6 Connecting a Mic and an Audio Device You can add a vocal or narration along with music that plays back from an audio device. If you connect a mic to the MIC jack (XLR type), set the “PHANTOM” Connect a mic. switch appropriately for the type of mic.

  • Page 7: Connecting A Guitar

    You can apply e ects to the audio playback from your computer, or to the audio input from the MIC, MIC/GUITAR, and LINE IN jacks. The UA-4FX2 provides three types of digital e ect that are useful when playing back sound or when recording a mic or guitar. You can use the four e ect knobs to easily shape the sound of the digital e ects.
  • Page 8 Types Press the [SELECT] button to switch between three types of e ect. Applies e ects to a mic or guitar. MIC/GUITAR You can also use this to apply e ects to a vocal or narration, or to make your guitar sound more powerful. Makes the overall volume and loudness more consistent.

  • Page 9: Convenient Functions

    If the [LOOP-BACK] button is o , the playback of the computer will not be broadcast. Adjusting the Noise Suppressor Depth The UA-4FX2 provides a “noise suppressor” that can suppress noise in the audio signal from the MIC jack (XLR type), PHONES/HEADSET jack, or MIC/ GUITAR jack.

  • Page 10: Returning To The Factory Settings

    This setting is not saved internally. Returning to the Factory Settings Hold down the [ADVANCED EFFECTS] switch and the [SELECT] button. Connect the UA-4FX2 to your computer. All indicators blink for one second, and the UA-4FX2 returns to its factory settings.

  • Page 12: Troubleshooting

    From the “Applications” folder, double-click “Roland” 0 “UA-4FX2 Driver” 0 “Readme.htm.” If this chapter does not help you solve the problem, refer to the support page of the Roland website. If this still does not solve the problem, please contact “Customer support. ”...
  • Page 13 Set the [MIC/GUITAR] switch to “MIC. ” Mic sound is not loud Is the sensitivity of the mic you’re using The UA-4FX2’s mic input has a rated input level of -56–-18 dBu. If the enough appropriate for the rated input level of the sensitivity of your mic is low, the volume will be less.
  • Page 14 In “System Preferences,” click the [Sound] icon. Click the [Output] tab. In “Choose the device that will output sound,” make sure that [UA-4FX2] is selected, and use the main volume slider to adjust the volume. If mute is checked, clear the check mark.
  • Page 15 9 oz Accessories Owner’s manual, USB cable * 0 dBu = 0.775 Vrms * This document explains the speci cations of the product at the time that the document was issued. For the latest information, refer to the Roland website.

  • Page 16: Using The Unit Safely

    (e.g., water placing heavy objects on it Refer all servicing to your retailer, or juice) to enter this product. the nearest Roland Service Center, Otherwise, you risk injury as the Doing so may cause short circuits, or an authorized Roland distributor, result of the unit toppling over or faulty operation, or other malfunctions.

  • Page 17: Important Notes

    Japan. another where the temperature and/or humidity is very di erent, water droplets • Roland is an either registered trademark (condensation) may form inside the unit. or trademark of Roland Corporation in the Damage or malfunction may result if you United States and/or other countries.
  • Page 18 MEMO...
