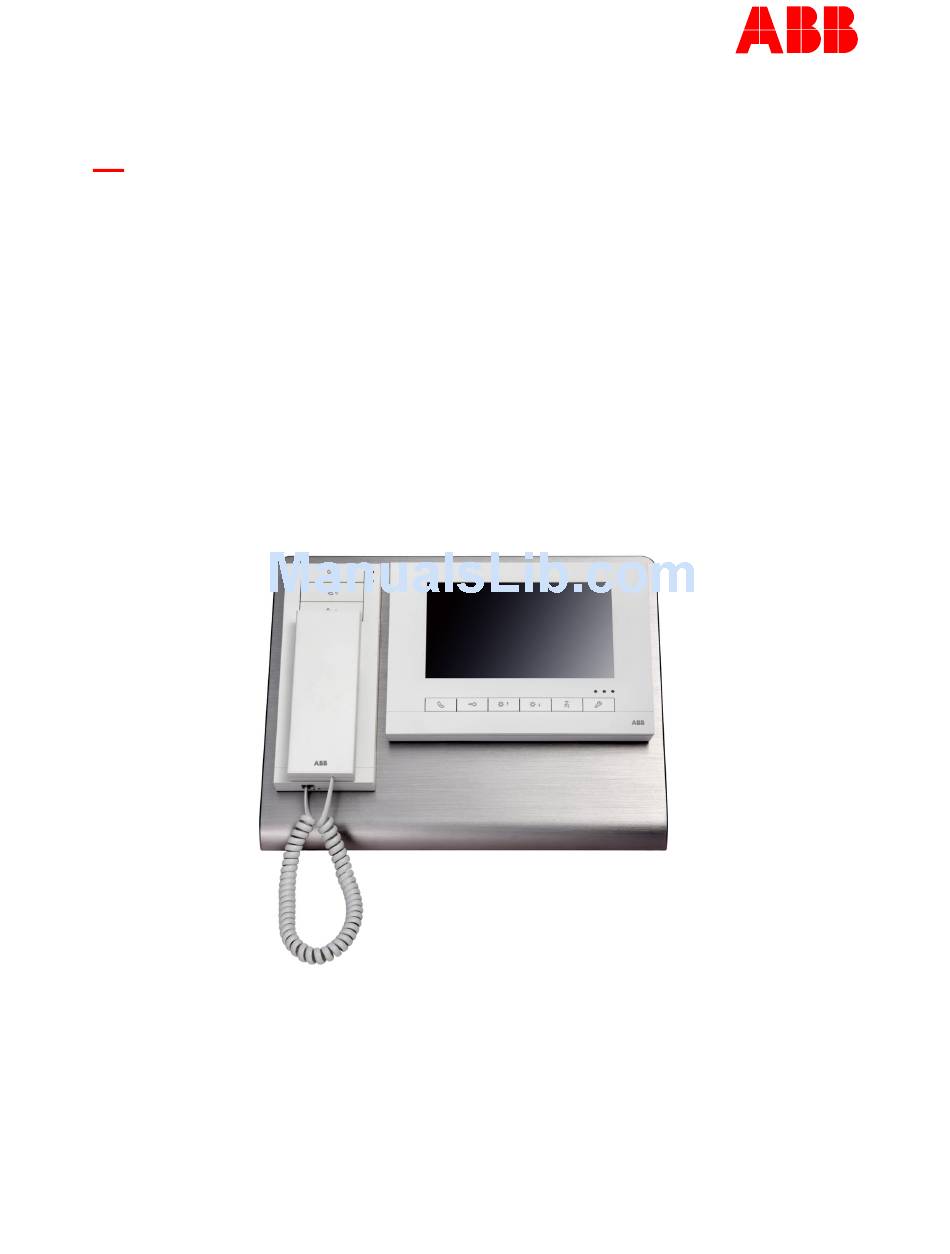

Pos: 2 /CNDEX/00 Title/00_Title -- HSM36-GU @ 63\mod_1500517322745_0.docx @ 800527 @ @ 1 2TMD041700D0045 │ 01.08.2017 Operating Instructions ABB-Welcome IP Guard unit HSM36-GU === Ende der Liste für Textmarke Titel ===...
Intended use Pos: 14 /CNDEX/02 Intended use/Intended use_HSM36-GU @ 62\mod_1497854839540_15.docx @ 792569 @ @ 1 As a part of the ABB-Welcome IP all-digital door entry system, this device can only be used with accessories from the system. Pos: 15 /CNDEX/99 Auxiliary tools/++++++++++++++ page break +++++++++++++++ @ 57\mod_1487814735946_0.docx @ 750979 @ @ 1 │3...
Pos: 20 /CNDEX/00 Warning/Txt_ABB devices_Environment @ 56\mod_1487743585555_15.docx @ 749915 @ 12 @ 1 All packaging materials and devices from ABB bear the markings and test seals for proper disposal. Always dispose of the packing materials and electric devices and their components via an authorized collection facility or disposal company.

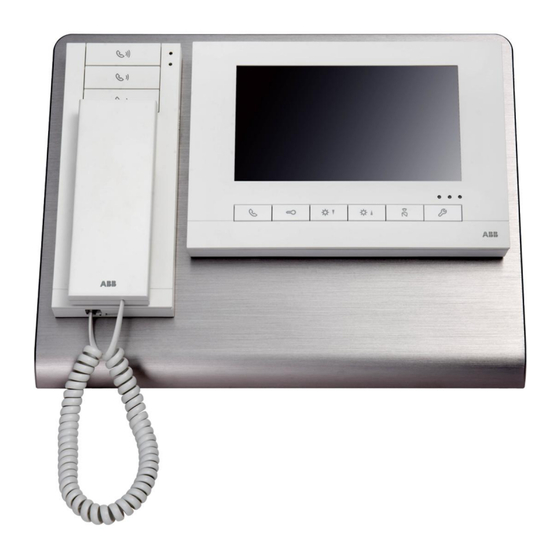

Pos: 28 /CNDEX/04 Feature/Feature_HSM36-GU @ 62\mod_1497856612643_15.docx @ 792609 @ @ 1 This device is the main component equipment of the ABB-Welcome IP door entry system. This product is connected using standard CAT.5 (or higher) wires, to make calls with indoor stations, outdoor stations, gate stations, and implement the access control and management of outdoor stations and gate stations.
Commissioning Pos: 45 /CNDEX/01 Heading/1.1.1 Heading/Heading_Date and time setting @ 57\mod_1487752887520_15.docx @ 750695 @ 3 @ 1 7.1.4 Date and time setting Pos: 46 /CNDEX/08 Commissioning/Date and time setting_HSM36-GU @ 62\mod_1498198660123_15.docx @ 793407 @ @ 1 Fig. 5: Date and time setting ■...
Operation Pos: 82 /CNDEX/01 Heading/1.1.1 Heading/Heading_Call forwarding @ 62\mod_1498527355635_15.docx @ 794510 @ 3 @ 1 8.2.2 Call forwarding Pos: 83 /CNDEX/09 Operation/Call forwarding_HSM36-GU @ 62\mod_1498527424485_15.docx @ 794531 @ @ 1 Fig. 16: Call forwarding When a call comes from the outdoor station, press to enter the call transfer interface, enter the indoor station no.
Operation Pos: 85 /CNDEX/01 Heading/1.1.1 Heading/Heading_Call waiting @ 62\mod_1498527018914_15.docx @ 794489 @ 3 @ 1 8.2.3 Call waiting Pos: 86 /CNDEX/09 Operation/Call waiting_HSM36-GU @ 62\mod_1498526784516_15.docx @ 794448 @ @ 1 If a second call is received during a call, 2 images are displayed on the screen. Fig.
Operation Pos: 92 /CNDEX/01 Heading/1.1.1 Heading/Heading_Surveillance of IP camera @ 62\mod_1498532837678_15.docx @ 794571 @ 3 @ 1 8.3.2 Surveillance of IP camera Pos: 93 /CNDEX/09 Operation/Surveillance of IP camera_HSM36-GU @ 62\mod_1498534168861_15.docx @ 794592 @ @ 1 Fig. 19: Surveillance of IP camera In standby mode, press to enter the surveillance interface.
We reserve the right to at all times make technical changes as well as changes to the contents of this document without prior notice. The detailed specifications agreed to at the time of ordering apply to all orders. ABB accepts no responsibility for possible errors or incompleteness in this document.
