Non-Proprietary Security Policy, Version 1.0
LAN connector – For IP calls, VSX Web, and remote management
Power connector – For power supply
Power switch for the codec – (one of three)
VGA connector – For Personal Computer (PC) to use system as a computer monitor and for passing the
video image from the VGA input connector to a display device
LCD Screen – Screen for video conferencing
IR Sensor – Input from IR sensor
Speaker – Built-in speaker
Camera – Input for video conferencing
Microphone – Built-in microphone
LED – LEDs indicate system status
The VSX 3000 physical interfaces are located under the system as depicted in Section 2 of the Administrator's
Guide for the VSX Series, which lists on page one and two the connection cables required for the system. The
following table maps VSX 3000 interfaces with FIPS 140-2 logical interfaces:

Table 2 - Mapping of FIPS 140-2 Logical Interfaces to VSX 3000, VSX 5000, and VSX 7000s Interfaces

FIPS 140-2 Logical Interface
Data Input
Data Output
Control Input
Status Output
Power
The following is the list of ports and interfaces of the VSX 5000 system and Figure 7 below shows the ports on
module's back panel.
Power connector – For power supply
Polycom VSX 3000, VSX 5000, and VSX 7000s
© 2007 Polycom, Inc. -
This document may be freely reproduced and distributed whole and intact including this Copyright Notice.

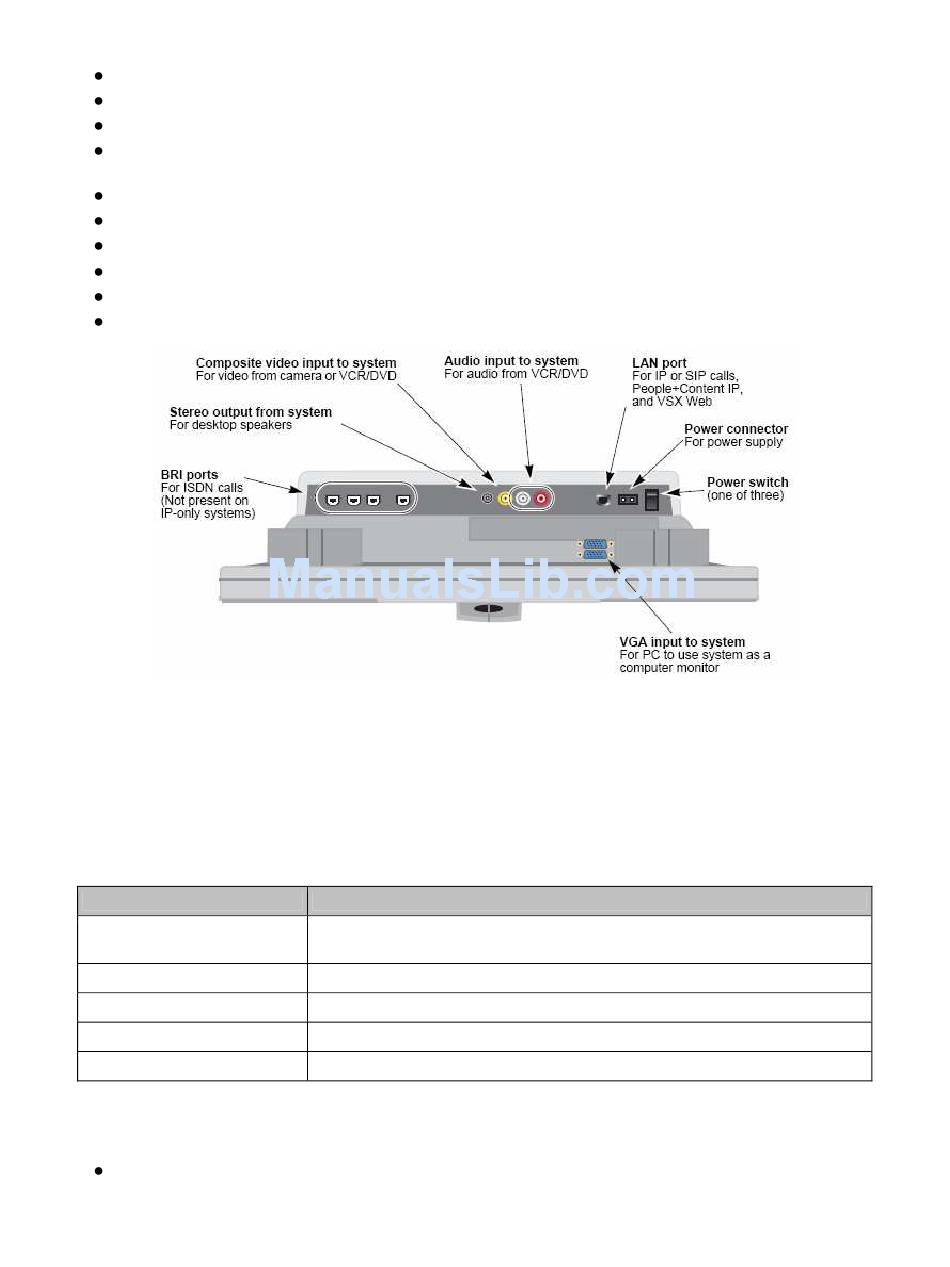

Figure 6 - VSX 3000 Connector Panel
VSX 3000, VSX 5000, and VSX 7000s Port/Interface
BRI connectors, Composite video connector, LAN connector, VGA connector, Audio
Connector, Microphone, Camera
BRI connectors, Stereo connector, LAN connector, LCD Screen, Speaker
LAN connector, IR Sensor, Power switch
LAN connector, LCD Screen, LEDs
Power connector
