Page 1: Operation Manual

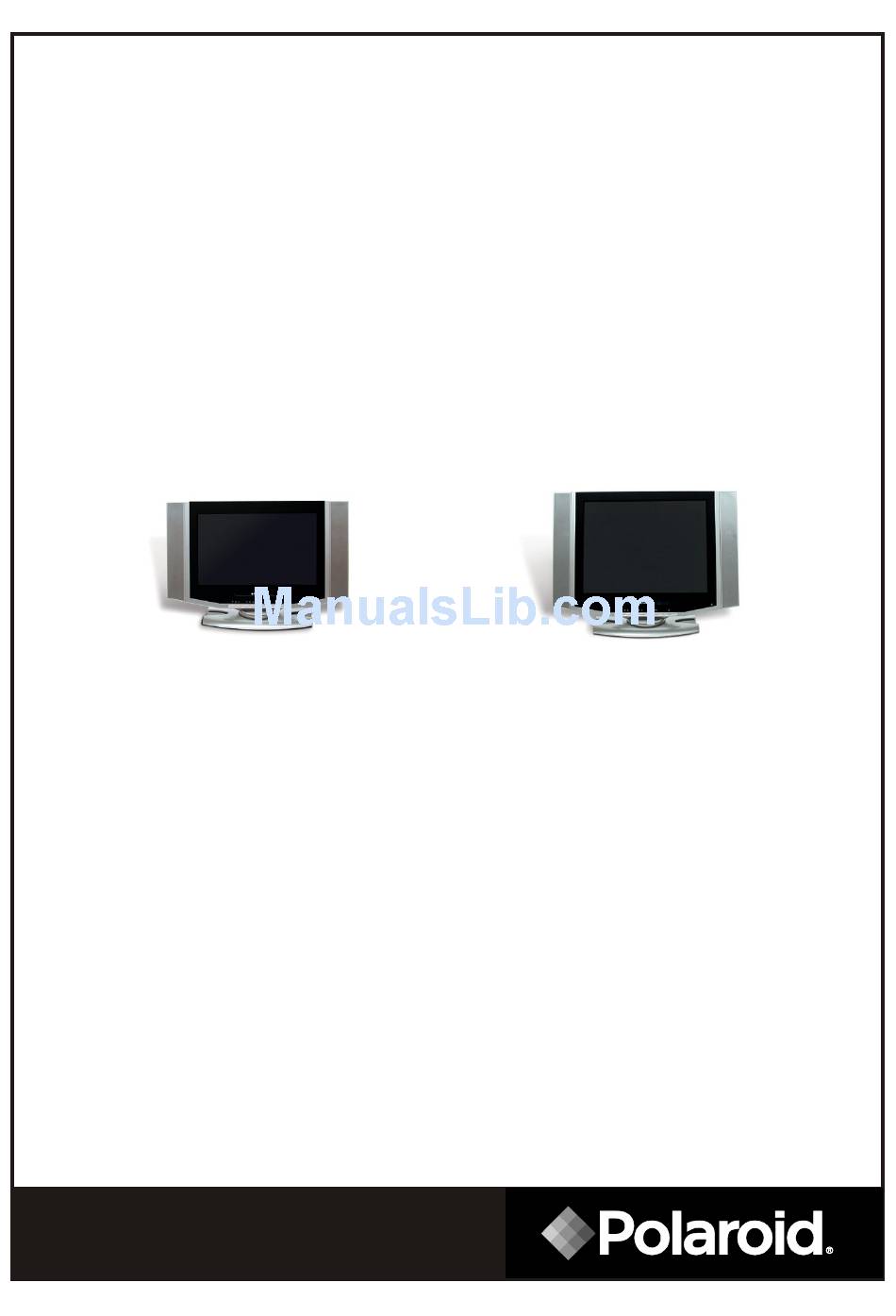

LCD Flat Panel LCD-1700 & LCD-2000 Operation Manual LCD-1700 LCD-20002005 20050316... -
Page 2: Table Of Contents
Thank you for purchasing this Polaroid Color LCD TV. We hope you enjoy many years of viewing pleasure. The goal of this manual is to guide you through setting up and operating your Polaroid LCD TV as quickly and easily as possible. -
Page 3: Brief Operating Instructions
Brief Operating Instructions 1.Connection Connect the antenna lead or CATV cable or external equipments(such as Antenna, Cable TV ,VCD,DVD, VTR,Set top box,etc.)to the corresponding terminals or interface on the TV rear(please refer to the owner s manual of the equipment to be connected as well)and confirm that the signal source is available and works normally. -
Page 4: Signal Source Selection
POLAROID preset powerd by POLAROID preset powerd by POLAROID picture 7300K powerd by POLAROID audio mono... -
Page 5: Important Safeguards
CAUTION CAUTION: TO REDUCE THE RISK OF ELEC- TRIC SHOCK, DO NOT REMOVE COVER(OR BACK).NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the users authority to operate this equipment. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. - Page 6 Important safeguards 11. Power source This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TVs intended to operate from battery power, or other sources, refer to the operating instructions.
-
Page 7: Learning About Your New Tv
Learning about your new TV Learning about your new TV You can operate your TV by using the buttons on the front panel or the remote control. The terminals on the front and the back panel provide all the connections you will need to connect other equipment to your TV. Front Controls Back Connections ANT.IN... -
Page 8: Selecting A Location For The Tv
Learning about your new TV POWER button (standby) POWER indicator Remote Sensing Window MENU button TV / AV / PC input select Volume up / cursor right Volume down / cursor left Selecting a location for the TV 1)Place the TV on the floor or on a sturdy platform in a location where light does not directly hit the screen. 2)Place the TV far enough from the walls to allow proper ventilation. -
Page 9: Connecting The Pc Or Nb
Connecting your TV NOTE: 1) Headphones are not included in the supplied accessories. 2) No sound will be heard from the main unit speaks when a headphone mini-plug is connected into the headphone jack. Connecting the PC or NB You can use your TV as a monitor for the devices as shown below. -
Page 10: Connecting A Cable Converter Box
Connecting your TV Connecting a cable converter box This television has an extended tuning range and can tune most cable channels without using a cable company supplied converter box. Some cable companies offer premium pay channels in which signal is scrambled. -
Page 11: Using The Remote Control
Using the remote control Preparing the remote control for use Installing the remote control batteries 1. Open the battery cover on the back of the remote control. 2. Install two AAA size(1.5V) batteries. Match the + and - signs on the batteries to the signs on the battery compartment. -
Page 12: Shortcut Keys Operation
Shortcut keys operation Connecting POWER Notes: 1. Use a commercially available AC plug adapter, if necessary, depending on the design of the wall outlet. 2. Always unplug the AC adapter from the product and power outlet when not using for a long period of time. ON/OFF Standby Press POWER on the remote control to turn off the LCD TV, the POWER indicator will turn red. -
Page 13: Adjusting Sound Volume
Shortcut keys operation Adjusting sound volume Press VOL+ or VOL- on the remote control or segment of the indicator will increase or decrease. Muting the sound Press the MUTE on the remote control to temporarily turn off the sound .To restore the sound, press MUTE again.The mute function is automatically turned off when any of the following buttons are pressed: POWER, VOL+/-, or SAP . -
Page 14: Selecting The Picture Mode
Shortcut keys operation Selecting the picture mode You can select the picture quality instantly from among three preset modes and one user-set mode. Press the P.MODE button on the remote control repeatedly to select the desired picture quality. Selecting the sound mode You can select the sound effect instantly from among three preset modes and one user-set mode. -
Page 15: Menu Operation
PRESET menu. powerd by POLAROID powerd by POLAROID powerd by POLAROID... -
Page 16: Using The Option1 Menu
PRESET menu. button to enter PRESET menu. menu background language osd timeout black screen timer window adjust down for option settings button to enter OPTION1 menu. button to enter OPTION1 menu. -14- powerd by POLAROID option1 opaque english 30sec... - Page 17 Menu operation BLACK SCREEN 1) Press the MENU button to enter the main menu. button to select the item OPTION1, and press the 2) Press the button to select black screen. 3) Press the button to switch between on and off. 4) Press the NOTE: When you enable the black screen, the screen will turn into black screen saver mode in case of no valid input signal.
-
Page 18: Using The Option2 Menu
OPTION2 menu. button to enter OPTION2 menu. 1 2 3 4 5 6 7 8 9 - 0 + POLAROID password enter down to enter password 1 2 3 4 5 6 7 8 9... - Page 19 4) Press MENU button to return. 1 2 3 4 5 6 powerd by 7 8 9 POLAROID - 0 + tv rating <ok> to set tv block level , <menu> to return Note: As you block ratings, all ratings higher than the ones you select are blocked as well. For example, if you choose to block the MPAA rating R, the higher ratings, NC-17 and X, are automatically blocked too.
- Page 20 Menu operation About MPAA Ratings The Motion Picture Association of America(MPAA) uses a rating system to qualify motion picture content. Television broadcasters employ a rating system to qualify the content of televison programs as well. The MPAA and TV ratings work with the parental feature and allow you to block out programming above the rating limits you determine.
-
Page 21: Appendix
Appendix Cleaning and care WARNING: TV sets use high voltage. Do not try to remove the cabinet back. Refer servicing to qualified service technicians. To clean the TV screen: 1) Unplug the TV to avoid possible shock hazard. 2) Use a damp cloth or clean cellulose sponge to clean the TV screen and trim. Do not allow water to spill into the cabinet or damage may occur. -
Page 22: Troubleshooting
Appendix Troubleshooting Before calling a service technician, please check the following table for a possible cause of the problem and some solutions. Problem TV will not turn on No picture, no sound No sound, picture OK Poor sound, picture OK Poor picture, sound OK Poor reception of broadcast channels Unable to select a certain channel... -
Page 23: Specifications
Dimensions Depth: 10inches Weight 22lbs Supplied accessories Remote control , Batteries , AC adapter , AC cord Design and specifications are subject to change without notice. LCD-1700 A-5~A-1, 4A Cable/ antenna VIDEO S-VIDEO YPBPR/YCBCR AV audio 1 MINI-JACK FOR STEREO (3.5... - Page 24 Appendix Specifications 20.1 INCHES TFT LCD LCD panel Television system NTSC standard Channel coverage VHF: 2~13 UHF: 14-69 Cable TV: 2~13,A~W, W+1~W+84, 640X480 Resolution 350:1 Contrast 450cd/m Brightness 176 (H)/176 (V) Viewing angles English/French/Spanish OSD language DC 12V , AC 100 - 240V ,47-63Hz Power source Power consumption 1.5W+1.5W...
