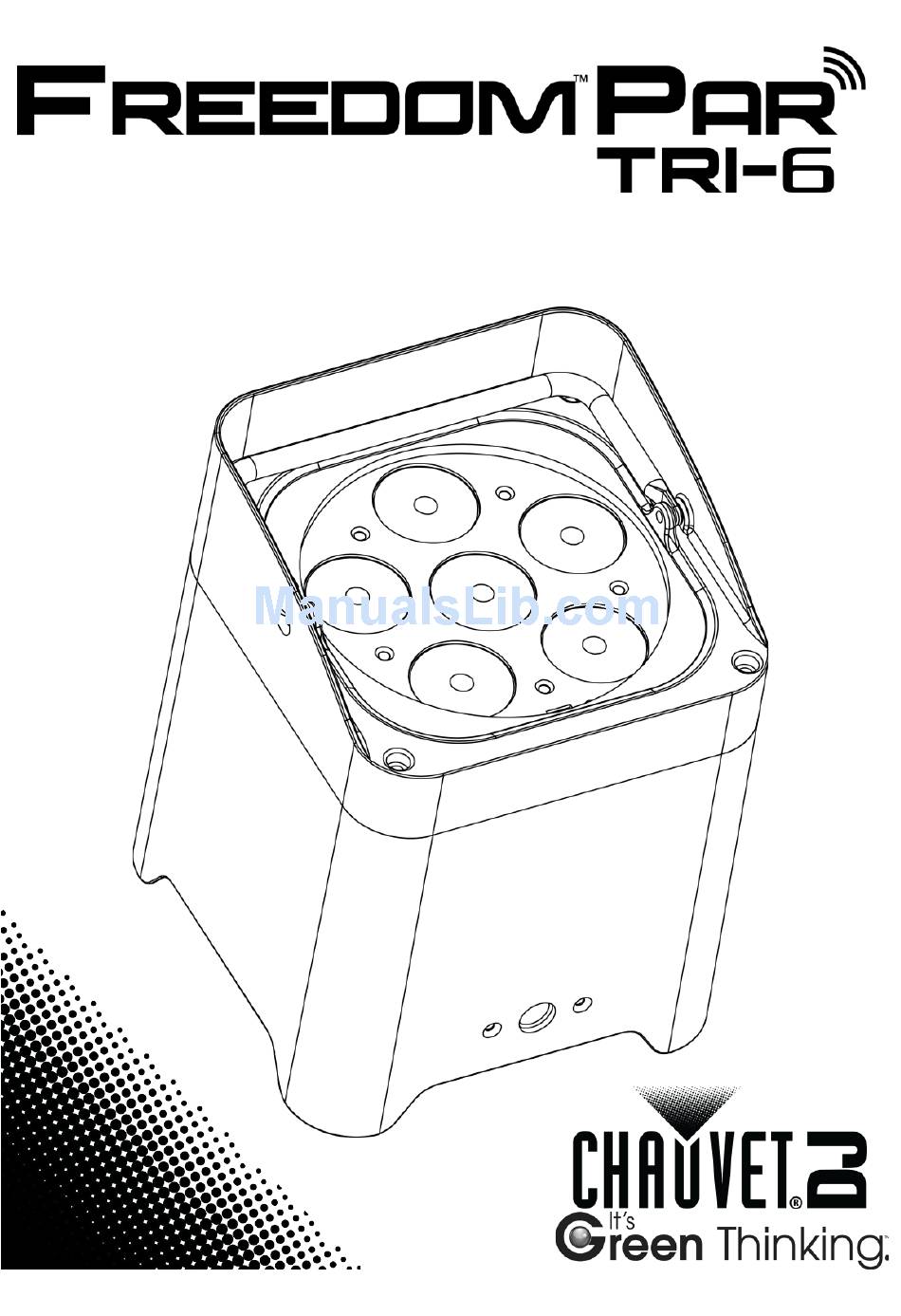

- Page 1 Quick Reference Guide FCC ID:XAO-FREEDOM...
- Page 2 Freedom™ Par Tri-6 QRG About This The Freedom™ Par Tri-6 Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download Guide the User Manual from www.chauvetlighting.com for more details. Disclaimer The information and specifications contained in this QRG are subject to change without notice.
- Page 3 Extend the battery’s lifespan with built-in discharge protection. Safely store and transport your fixtures from gig to gig in the CHS-FR4 carry bag available from CHAUVET®. The Freedom™ Par Tri-6’s compact and lightweight design easily fits inside sticks of TRUSST®. On/Off...
-
Page 4: Charging The Battery
(single color on) Time Up to 8 hours Up to 20 hours 6 hours IRC-6 The Freedom™ Par Tri-6 is compatible with the IRC-6 from CHAUVET®. For more information on the IRC or to download instructions, go to (Infrared Remote www.chauvetlighting.com. Control) -
Page 5: Dmx Linking
Freedom™ Par Tri-6 QRG Mounting Before mounting this product, read the Safety Notes. Safety Cable Mounting Clamp (works with CH-05 from (such as CLP-15 or CHAUVET®) CLP-15N clamp from CHAUVET®) Product Mounting Diagram Threaded Mounting Hole Size M12 DMX Linking The Freedom™... -
Page 6: Menu Options
Freedom™ Par Tri-6 QRG Menu Options Main Function Programming Levels Description 3-CH 4-CH DMX Personalities Selects the DMX personality and starting d 1–d512 and Starting Address address 5-CH 9-CH Static Colors C 1–C 7 Selects static color Auto Programs P 1–P 4 Selects auto program Program Speed S 1–S100... -
Page 7: Dmx Values
Freedom™ Par Tri-6 QRG DMX Values 9-CH Channel Function Value Percent/Setting Dimmer 000 255 0–100% 000 255 0–100% Green 000 255 0–100% Blue 000 255 0–100% 000 010 No function 011 030 R: 100% G: 0–100% B: 0 031 ... - Page 8 Freedom™ Par Tri-6 QRG DMX Values (cont.) 5-CH Channel Function Value Percent/Setting Dimmer 000 255 0–100% 000 255 0–100% Green 000 255 0–100% Blue 000 255 0–100% 000 010 No function Strobe 011 255 Slow to fast 4-CH Channel Function Value...
- Page 9 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ...
