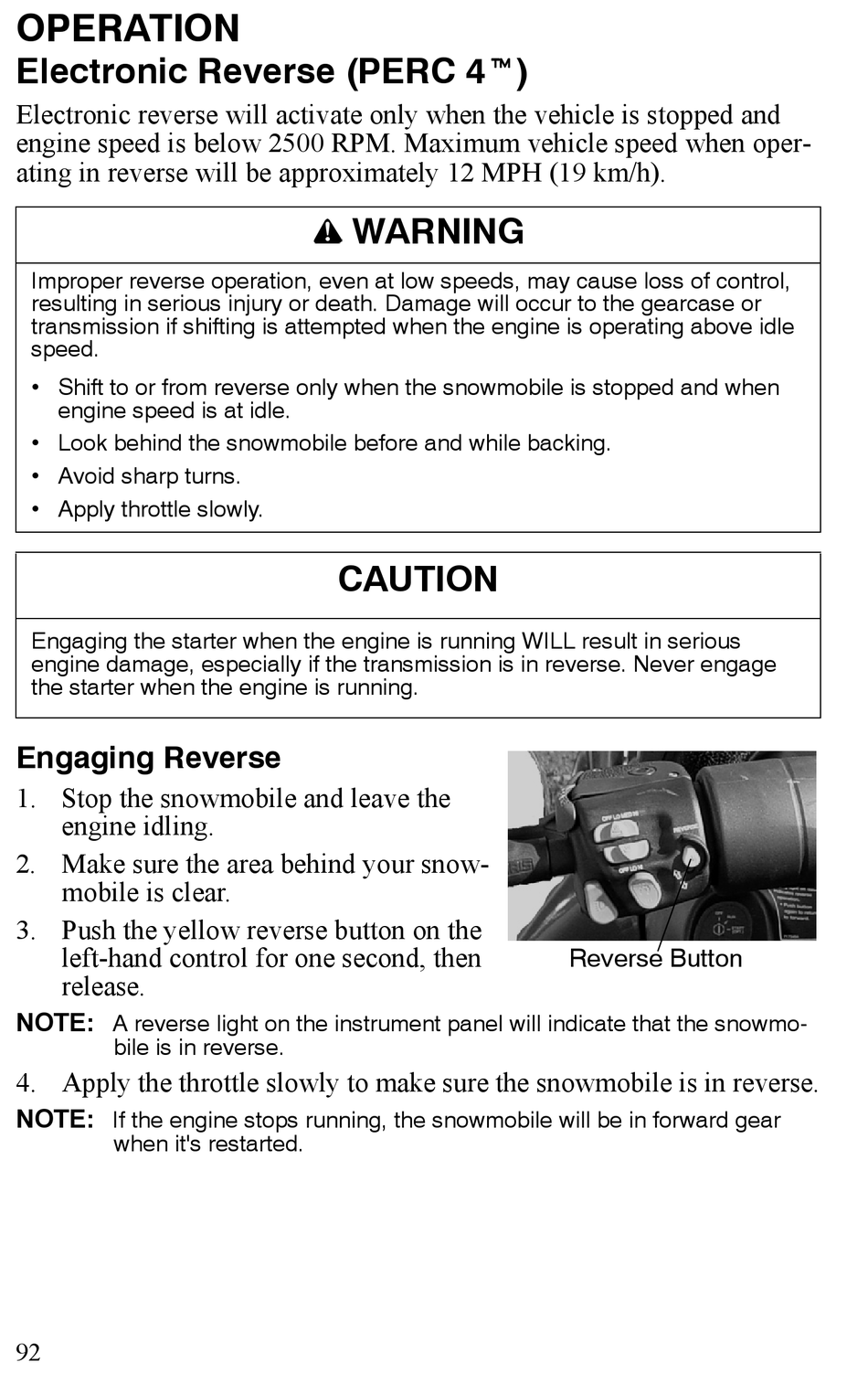

Polaris IQ Turbo LX Owner's Manual page 95

OPERATION
Electronic Reverse (PERC 4t)
Electronic reverse will activate only when the vehicle is stopped and
engine speed is below 2500 RPM. Maximum vehicle speed when oper-
ating in reverse will be approximately 12 MPH (19 km/h).
Improper reverse operation, even at low speeds, may cause loss of control,
resulting in serious injury or death. Damage will occur to the gearcase or
transmission if shifting is attempted when the engine is operating above idle
speed.
• Shift to or from reverse only when the snowmobile is stopped and when
engine speed is at idle.
• Look behind the snowmobile before and while backing.
• Avoid sharp turns.
• Apply throttle slowly.
Engaging the starter when the engine is running WILL result in serious
engine damage, especially if the transmission is in reverse. Never engage
the starter when the engine is running.
Engaging Reverse
1. Stop the snowmobile and leave the
engine idling.
2. Make sure the area behind your snow-
mobile is clear.
3. Push the yellow reverse button on the
left-hand control for one second, then
release.
NOTE:
A reverse light on the instrument panel will indicate that the snowmo-
bile is in reverse.
4. Apply the throttle slowly to make sure the snowmobile is in reverse.
NOTE:
If the engine stops running, the snowmobile will be in forward gear
when it's restarted.
92
WARNING
CAUTION
Reverse Button
