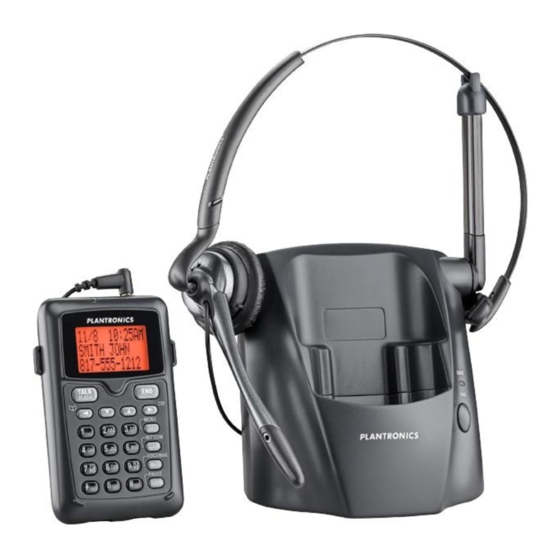

™ Cordless Headset Telephone from Plantronics. This guide contains instructions for setting up and using your system. Please refer to the safety instructions on page 28 of this guide for important product safety information prior to installation or use of the product.
Seven-digit Dialing ...23 Accessing Your Voicemail Service ...24 One-touch Voice Mail Access ...24 Setting Voice Mail Signaling Tone ...25 Resetting the Voice Message Indicator ...25 Using Multiple CT14 Units Together ...26 Troubleshooting ...26 Safety Instructions ...28 Limited Warranty ...29 Regulatory Notices ...30...
Base Components Front View Back View Base antenna / headset holder CHARGE indicator (LED) PAGE key DC power input Telephone line jack Front View Headset Jack MESSAGE WAITING* indicator (LED) TALK / FLASH key PHONEBOOK / LEFT (Phonebook / left cursor) key DOWN key UP key END key...
Installing the Dial Pad Battery Black White Remove the belt clip by pulling one side of the belt clip to release the tab from the hole. Squeeze the latch on the battery compartment cover and lift the cover. Connect the Battery Pack connector. Do not force.
Hooking Up the Base Connect the AC adapter power cord to the base and an active AC outlet. Route the power cord as shown in the illustration. Raise the Base Antenna to a vertical position. Charging the Dial Pad Insert the dial pad into the charging cradle on the base. Charge for 15 –...
Mute Off appears briefly and the mute icon will disappear. Your CT14 has a range of up to 300 ft. from the charging base. If you travel out of range while the dial pad is in standby, the dial pad will display Out Of Range, and you will not be able to place/answer calls.
Settings Ringer Tone Setting You may choose from three tones or four melodies for your phone’s primary ring tone. Tones Melodies Flicker Fur Elise (Elise) Clatter We Wish You A Merry Christmas (Merry-Xmas) Wake Up Beethoven’s Symphony #9 (Beethoven9) Home Sweet Home (Hm Swt Hm) To Change the Ring Tone Press Select the Handset Setup menu, and then the Ringer Tones submenu.
Settings Setting Dial Mode Your CT14 is set to tone dialing by default, but you can change the dial mode to pulse dialing. To change the dial mode, press Select the Global Setup menu, and then the Dial Mode submenu.
Settings Re-registering the Dial Pad After the dial pad is de-registered, you must re-register the dial pad before you can use it. Place the dial pad in the base cradle for several seconds. When the dial pad has registered to the base, the LCD will display Registration complete, then show the dial pad ID number.
Phonebook The phonebook in the dial pad holds up to 70 names and numbers. When the phonebook is full, the dial pad beeps and shows Memory Full on the display. You will not be able to add any names and numbers in the dial pad phonebook until you delete some of the existing ones.
Phonebook Assigning Ring Tones You can attach a special ring tone to each phonebook entry; the phone will use this ring tone when this person calls. To assign a ring tone: Find the phonebook entry you would like to assign a ring tone and hit .
Phonebook Storing Redial or Caller ID Numbers in the Phonebook You can store redial numbers or Caller ID records in the phonebook so you can use them later. Go to the Caller ID or Redial list and select the number you want to store. If the Caller ID information did not include the number, then you will not be able to store it.
Subscription Services Deleting One Number from the Caller ID List Press when the phone is in standby, and then find the number you want to delete. Press and select Delete Entry. When the phone asks you to confirm, select Yes. Deleting All Numbers from the Caller ID List Press when the phone is in standby.
Subscription Services Accessing Your Voice Mail Service If you subscribe to a voice mail service, you can use your phone to access your voice mailbox. When there are messages waiting in your voice mailbox, the MESSAGE WAITING Indicator on the dial pad flashes, and appears in the dial pad display.
CT14 bases, and the base supports a total of six cordless dial pads. Features like intercom, conferencing and transferring are only available if you have multiple units. If you purchase two or more CT14 units, please refer to the instructions posted on the resource tab at: www.plantronics.com/ct14...
Important Safety and Operational Information Please read the following safety and operational instructions before using your Plantronics headset and accessories. Please keep these instructions for your reference. Additional warnings may be present on the product or packaging. This symbol identifies and alerts the user to the presence of important safety warnings.
Regulatory Notices FCC Registration Information Changes or modifications to this product not expressly approved by our company, or operation of this product in any way other than as detailed by the owner’s manual, could void your authority to operate this product. This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA.
Page 20
™ con auricular CT14 de Plantronics. Esta guía contiene instrucciones para configurar y utilizar el sistema. Antes de instalar o utilizar el producto, consulte las instrucciones de seguridad de la página 28 de esta guía para obtener información de seguridad importante sobre el producto.
Acceso al buzón de voz con una sola tecla ...24 Configurar el tono de aviso del buzón de voz ...25 Restablecer el indicador de mensajes de voz ...25 Usar varias unidades CT14 al mismo tiempo ...26 Solución de problemas ...26 Instrucciones de seguridad ...28 Garantía limitada ...29...
Componentes Vista frontal Vista posterior Antena de la base/soporte del auricular CHARGE (Carga) PAGE (Localizar) Entrada de corriente CC Entrada de la línea de teléfono Vista frontal Entrada de auriculars Indicador de MENSAJE EN ESPERA* (LED) Tecla TALK / FLASH (Hablar/Flash) Tecla AGENDA DE TELÉFONOS/IZQUIERDA (Agenda de teléfonos/cursor izquierdo) Tecla ABAJO...
Instalar la pila del teclado Negro Rojo Blanco Quite el clip para el cinturón jalando de un lado del clip para soltar la pestaña del orificio. Apriete el seguro de la tapa del compartimento de la pila y levante la tapa. Conecte el conector de la pila.
Instalar la base Conecte el cable de alimentación del adaptador de CA a la base y a una toma de corriente CA activa. Pase el cable de alimentación como se indica en la ilustración. Levante la antena de la base para colocarla en posición vertical. Cargar el teclado Inserte el teclado en el alojamiento de carga de la base.
El CT14 tiene un alcance máximo de 91 metros desde la base de carga. Si se aleja más mientras el teclado está en espera, la pantalla mostrará el mensaje Receptor Fuera del alcance y ya no podrá realizar ni recibir llamadas.
Ajustes Seleccionar el timbre Puede elegir entre cuatro melodías o tres tonos como tono de timbre principal del teléfono. Tonos Melodías Parpadear Para Elisa (Elise) Chacoloteo We Wish You A Merry Christmas (Merry-Xmas) Despertador Sinfonía n.º 9 de Beethoven (Beethoven9) Hogar dulce hogar (Hm Swt Hm) Para cambiar el tono del timbre Presione...
Ajustes Configurar el modo de marcación El CT14 tiene configurada la marcación por tonos de manera predeterminada, pero se puede cambiar al modo de marcación por pulsos. Para cambiar el modo de marcación, presione Seleccione el menú Progr. global y, a continuación, el submenú...
Ajustes Volver a registrar el teclado Una vez eliminado el registro del teclado, es necesario volver a registrarlo para poder usarlo de nuevo. Coloque el teclado en la base durante varios segundos. Cuando el teclado esté registrado en la base, la pantalla de LCD indicará...
Agenda de teléfonos La agenda de teléfonos del teclado puede almacenar hasta 70 nombres y números de teléfono. Si se llena la agenda, el teclado pitará y aparecerá el mensaje Memoria llena en la pantalla. Eso significa que ya no podrá agregar más nombres ni números a la agenda de teléfonos a menos que borre algunos de los nombres y números existentes.
Agenda de teléfonos Asignar tonos de timbre Puede asociar un tono de timbre específico a cada entrada de la agenda de teléfonos. El teléfono usará ese tono cuando llame esa persona. Para asignar un tono de timbre: Use las teclas para seleccionar uno de los siete tonos de timbre distintos.
Agenda de teléfonos Guardar números de llamada o ID de contactos en la agenda de teléfonos Puede guardar números de llamada o ID de contactos en la agenda de teléfonos para usarlos más adelante. Vaya a la lista de ID de contactos o números de llamada y seleccione el número que desea guardar.
Servicios con suscripción Eliminar información de la lista de ID de contactos Para eliminar solo un número de ID de contactos, presione cuando el teléfono esté en espera y busque el número que desea eliminar. Presione y seleccione Borrar entrada. Cuando el teléfono solicite su confirmación, seleccione Sí.
Servicios con suscripción Acceso al servicio de buzón de voz Si está suscrito a una servicio de buzón de voz, puede tener acceso al buzón desde su teléfono. Cuando tenga algún mensaje pendiente en el buzón de voz, el indicador de mensaje en espera del teclado empezará a parpadear. Si tiene su número de acceso programado en el teléfono, puede presionar para tener acceso a su buzón de voz.
Usar varias unidades CT14 al mismo tiempo El teclado suministrado con el teléfono se puede registrar en cuatro bases CT14 diferentes como máximo; cada base admite un total de seis teclados inalámbricos. Algunas características, como el intercomunicador, las conferencias y las transferencias de llamadas solo están disponibles si se dispone de varias...
Garantía para los productos comerciales de Plantronics adquiridos en EE.UU. y Canadá. comerciales fabricados, vendidos o certificados por Plantronics que se adquieran y se utilicen en Estados Unidos y en Canadá.
Avisos sobre normativas Información de registro de la FCC Los cambios o modificaciones realizados en este producto que no estén expresamente aprobados por nuestra compañía, o el uso de este producto de forma distinta a la detallada en el manual del usuario podrían anular su autorización para utilizar este producto.
