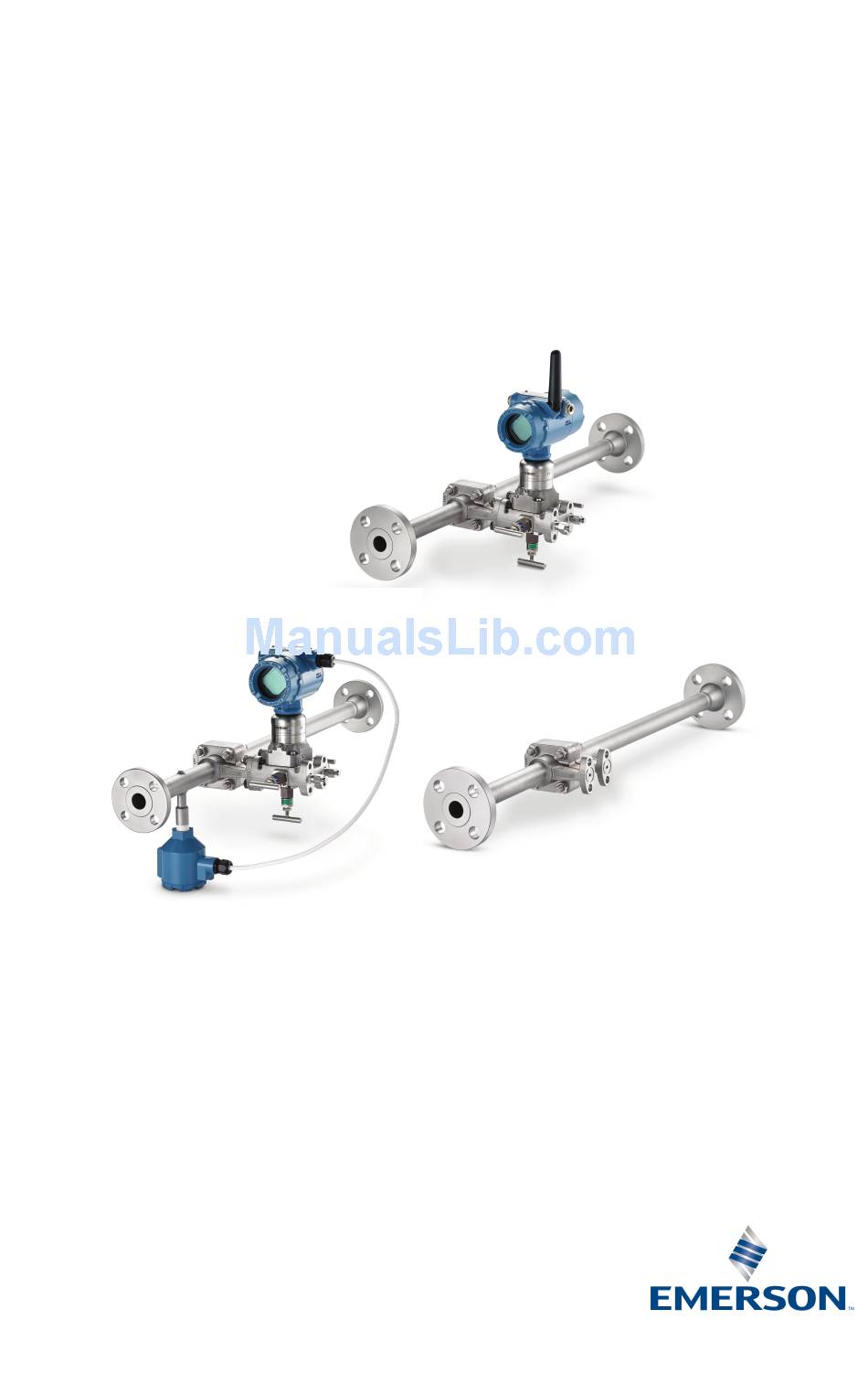

- Page 1 Quick Start Guide 00825-0100-4686, Rev FA September 2017 ™ Rosemount 1195 Integral Orifice Assembly...
-
Page 2: Table Of Contents
Manual. The manual and this guide are also available electronically on EmersonProcess.com/Rosemount. If the Rosemount 1195 Integral Orifice was ordered assembled to a Rosemount Pressure Transmitter, refer to the following Quick Start Guides for information on configuration and hazardous locations certifications: ... -
Page 3: View
G. Enhanced support orifice plate D. Nuts Location and orientation Install the Rosemount 1195 Integral Orifice in the correct location within the piping branch to prevent inaccurate measurement caused by flow disturbances. Straight pipe length Use the upstream (U) and downstream (D) lengths provided below in conjunction with figures below to determine the appropriate upstream (U) and downstream (D) pipe lengths. - Page 4 September 2017 Quick Start Guide Straight run requirements Figure 2. Reducer (2 d to d over a length of 1.5 d to 3 d) Figure 3. Single 90° Bend Flow from One Branch Figure 4. Two or More 90° Bends in Same Planes Figure 5.
- Page 5 Quick Start Guide September 2017 Figure 7. Ball/Gate Valve Fully Open Table 1. Straight Run Requirements (in Pipe Diameters) Figure 3 Figure 4 Figure 5 Figure 6 Figure 7 Figure 8 Figures 3–8 β upstream upstream upstream upstream upstream upstream On downstream 0.20 0.40...
-
Page 6: Primary Element Orientation
September 2017 Quick Start Guide Primary element orientation Figure 8. Rosemount 1195 Flowmeter Orientation with Traditional Style Manifold Gas (horizontal) Gas (vertical) Liquid (horizontal) Liquid (vertical) Steam (horizontal) Steam (vertical) A. 90° recommended zone D. 360° recommended zone B. Vertical plane E. - Page 7 Quick Start Guide September 2017 Figure 9. Rosemount 1195 Flowmeter Orientation with Flange by Flange Manifold Gas (horizontal) Gas (vertical) Liquid (horizontal) Liquid (vertical) Steam (horizontal) Steam (vertical) A. 120° recommended zone D. 360° recommended zone B. Horizontal plane E. Block valves C.
-
Page 8: Primary Element Installation
1. Studs and nuts should be tightened to specification in two to three steps following a cross pattern. 2. Never reuse gaskets. Always replace gaskets after disassembly to ensure proper seal. Figure 10. Rosemount 1195 Assembly Fastener Naming Convention Traditional body... - Page 9 Figure 11. Recommended Support Locations for Installation A. Support B. No step 5. Once the Rosemount 1195 is installed ensure that it is supported properly and take precautions to ensure that it is not used as a step. Refer to Figure 11...
-
Page 10: Preparing For Operation
September 2017 Quick Start Guide Preparing for operation Note Serious injury can occur by opening the valves when the pipes are pressurized. Do not bleed or vent process fluid if it is toxic or harmful to health or environment. Direct mount 450 °F (232 °C) or less Liquid applications 1. - Page 11 Quick Start Guide September 2017 Remote mount Gas applications-transmitter located above Rosemount 1195 Taps 1. Pressurize line. 2. Open equalizer valve on transmitter manifold. 3. Open high and low side transmitter manifold valves. 4. Open drain/vent valves on transmitter manifold to ensure no liquids are present.
- Page 12 12. Open high and low side block valves at integral orifice. The system is now operational. Steam service-transmitter located below Rosemount 1195 Taps 1. Remove pressure from line or close block valves at integral orifice. 2. Open equalizer valves, high and low side valves on the transmitter manifold.
- Page 13 Quick Start Guide September 2017 Figure 13. Remote Steam and Liquid Service A. Vent B. High valve C. Equalizer valve D. Vent valves E. Low valve 1. Applicable to both body assemblies.
-
Page 14: Product Certifications
European Directive Information The EU declaration of conformity for all applicable European directives for this product can be found on the at Emerson.com/Rosemount. A hard copy may be obtained by contacting our local sales office. European Pressure Equipment Directive (PED) (97/23/EC) Refer to EU declaration of conformity for conformity assessment. - Page 15 Quick Start Guide September 2017 Figure 14. Rosemount 1195 Declaration of Conformity...
- Page 16 September 2017 Quick Start Guide...
- Page 17 Quick Start Guide September 2017...
