6.4 Configuring devices
SIMOTION device
SIMOTION D410‑2 DP/PN
6.4.3.2

Set PG/PC interface

Setting interfaces
Proceed as follows:
1. Start SIMOTION SCOUT.
2. Select the Options > Set PG/PC interface menu.
The Set PG/PC Interface window opens.

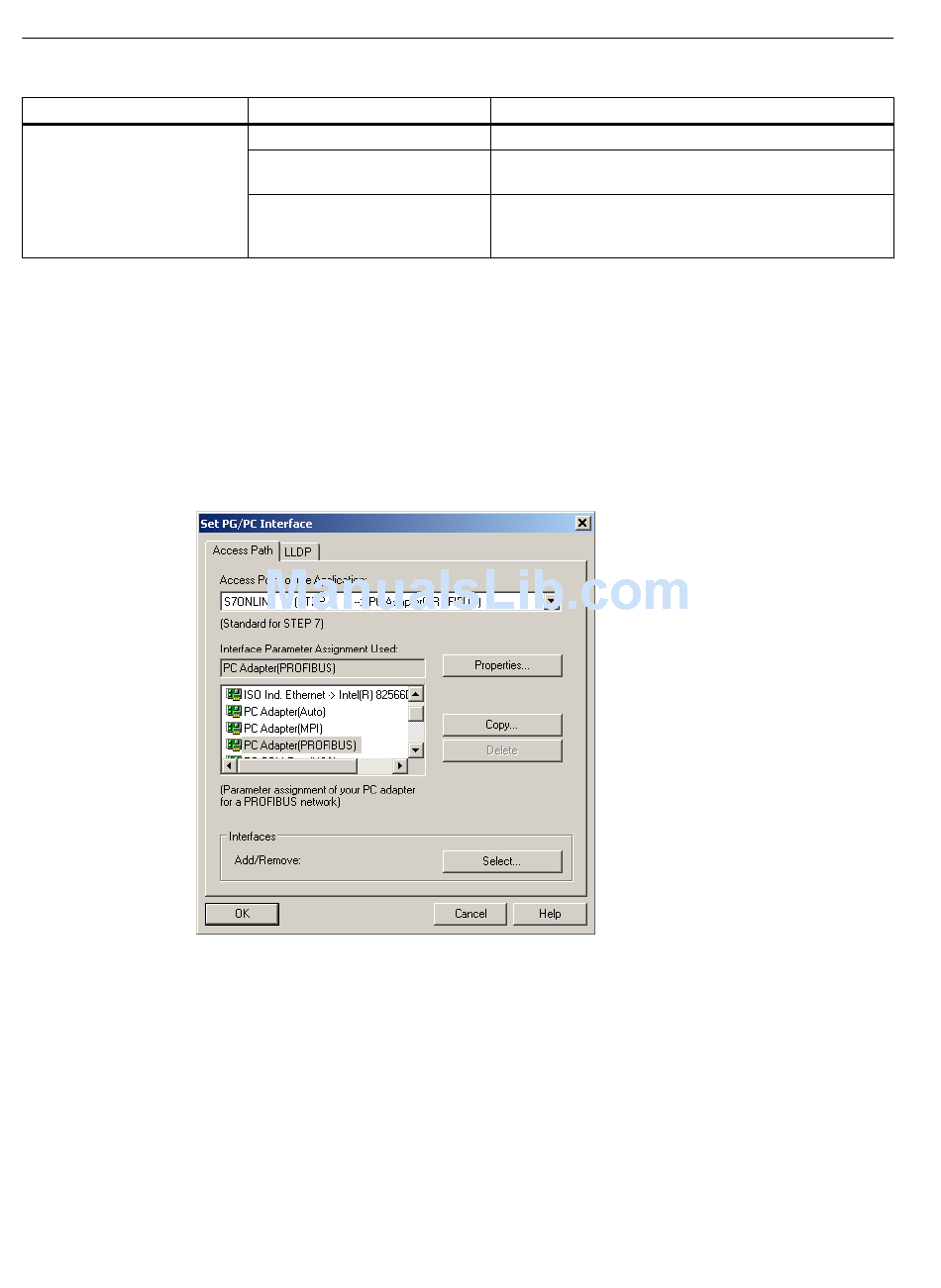

Figure 6-10
3. Select the access point of the application.
84
Interface
X21 DP/MPI
X127 P1 PN/IE
(Ethernet)
X150 P1, P2
(1 PROFINET interface with
2 ports)
Set PG/PC interface (example)
As supplied
PROFIBUS address 2, baud rate 1.5 Mbit/s
IP address: 169.254.11.22
Subnet mask: 255.255.0.0
Supplied without IP address and subnet
