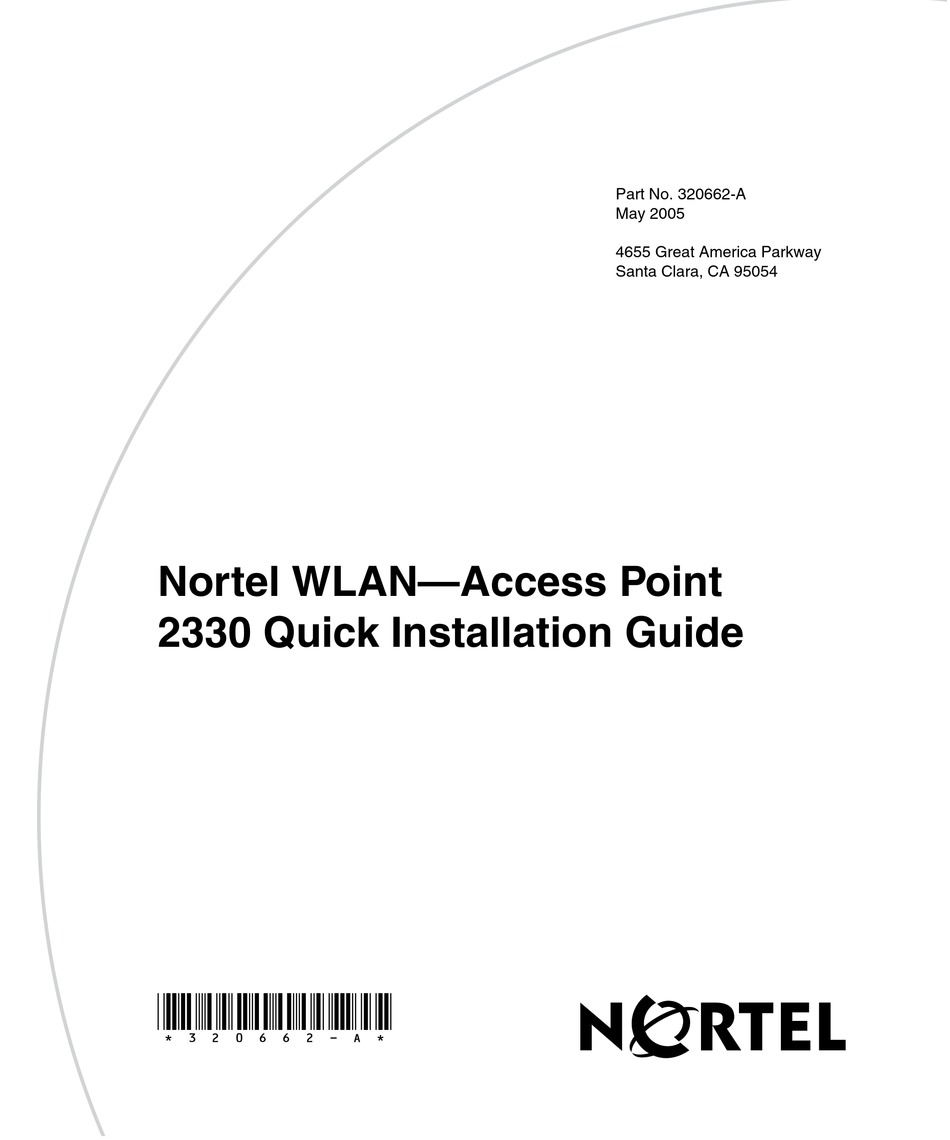

- Page 1 Part No. 320662-A May 2005 4655 Great America Parkway Santa Clara, CA 95054 Nortel WLAN—Access Point 2330 Quick Installation Guide *320662-A*...
-
Page 2: Restricted Rights Legend
In the interest of improving internal design, operational function, and/or reliability, Nortel Inc. reserves the right to make changes to the products described in this document without notice. Nortel Inc. does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein. - Page 3 Use only the supplied internal antenna, or external antennas supplied by the manufacturer. Unauthorized antennas, modifications, or attachments could damage the WLAN Access Point 2330 and violate FCC regulations. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
-
Page 4: Canadian Ic Statement
Hierbij verklaart Nortel Networks dat het toestel Radio LAN device in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG Bij deze verklaart Nortel Networks dat deze Radio LAN device voldoet aan de essentiële eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC. - Page 5 Guide for the channel limitations associated with the 5 GHz bands. The professional installer should verify the current channel of operation of the WLAN Access Point 2330 and compare it to the allowable channels of operation in the geographic region where the unit is being installed. If operation is occurring outside of the allowable frequencies as listed in the guide, then operation of the product must cease immediately and the installer must consult with the local technical support staff responsible for the wireless network.
-
Page 6: External Antenna Statement
23 dBm per the requirements of Table D.2 in Annex D of the standard. External Antenna Statement Intentional radiators, such as the Nortel Networks WLAN Access Point 2330 are not intended to be operated with any antenna(s) other than those furnished by Nortel Networks. An intentional radiator may only be operated with the antenna(s) with which it is authorized. -
Page 7: Contacting Nortel Technical Support
URL. An Express Routing Code (ERC) is available for many Nortel products and services. When you use an ERC, your call is routed to a technical support person who specializes in supporting that product or service. To locate an ERC for your prod- uct or service, go to the www.nortel.com/erc... -
Page 8: Wlan-Access Point 2330
Cable Requirement The Ethernet ports on the 2330 access point cannot accept a Cat 5 cable that has an uneven sheath such as the one shown in Figure 1. The RJ-45 connector on the cable will not seat properly in the receptacle on the 2330 access point. Use a Cat 5 cable with an even sheath instead. -
Page 9: Suspended Ceiling Installation-Flush Ceiling Tiles
Use the mounting template to cut a hole for the Cat 5 cable. Remove the mounting bracket from the 2330 access point. Attach the mounting bracket to the T-bar clamp. Universal mounting Port connector Universal mounting bracket... - Page 10 10 Suspended Ceiling Installation—Flush Ceiling Tiles Insert the Cat 5 cable through the point connector opening in the mounting bracket, then plug the cable into the 2330. Attach the 2330 to the mounting bracket. Lock T-bar 320662-A...
-
Page 11: Suspended Ceiling Installation-Drop Ceiling Tiles
T-bar clamp halves T-bar clamp halves 23.9-mm (15/16-inch) or 14.2-mm (9/16-inch) T-bar 15.9-mm (5/8-inch) T-bar (The clamps are different widths but the assembly is the same.) Remove the mounting bracket from the 2330 access point. Nortel WLAN—Access Point 2330 Quick Installation Guide... - Page 12 Port connector opening (Viewed from above ceiling tiles, looking down.) Insert the Cat 5 cable through the point connector opening in the mounting bracket, then plug the cable into the 2330. Attach the 2330 to the mounting bracket. Lock T-bar 320662-A...
-
Page 13: Junction Box Installation
Junction Box Installation 13 Junction Box Installation Access Mounting Mounting hardware point bracket Remove the mounting bracket from the 2330 . Attach the bracket to the junction box. Junction box Port connector opening Nortel WLAN—Access Point 2330 Quick Installation Guide... - Page 14 14 Junction Box Installation Plug the Cat 5 cable into the 2330 access point and attach the 2330 to the mounting bracket. Lock 320662-A...
-
Page 15: Solid Wall Or Ceiling Installation
Use the mounting template to cut a hole for the Cat 5 cable. Remove the mounting bracket from the 2330 . Attach the bracket to the wall or ceiling. Nortel WLAN—Access Point 2330 Quick Installation Guide... -
Page 16: Configuring The Ap
16 Configuring the AP Plug the Cat 5 cable into the 2330 access point and attach the 2330 to the mounting bracket. Cable Lock Universal mounting bracket Configuring the AP To configure the channels, power settings, and other 2330 parameters, see the following: Nortel WLAN—Security Switch 2300 Series Quick Installation Guide...
