INSTALLATION
INSTRUCTIONS
1

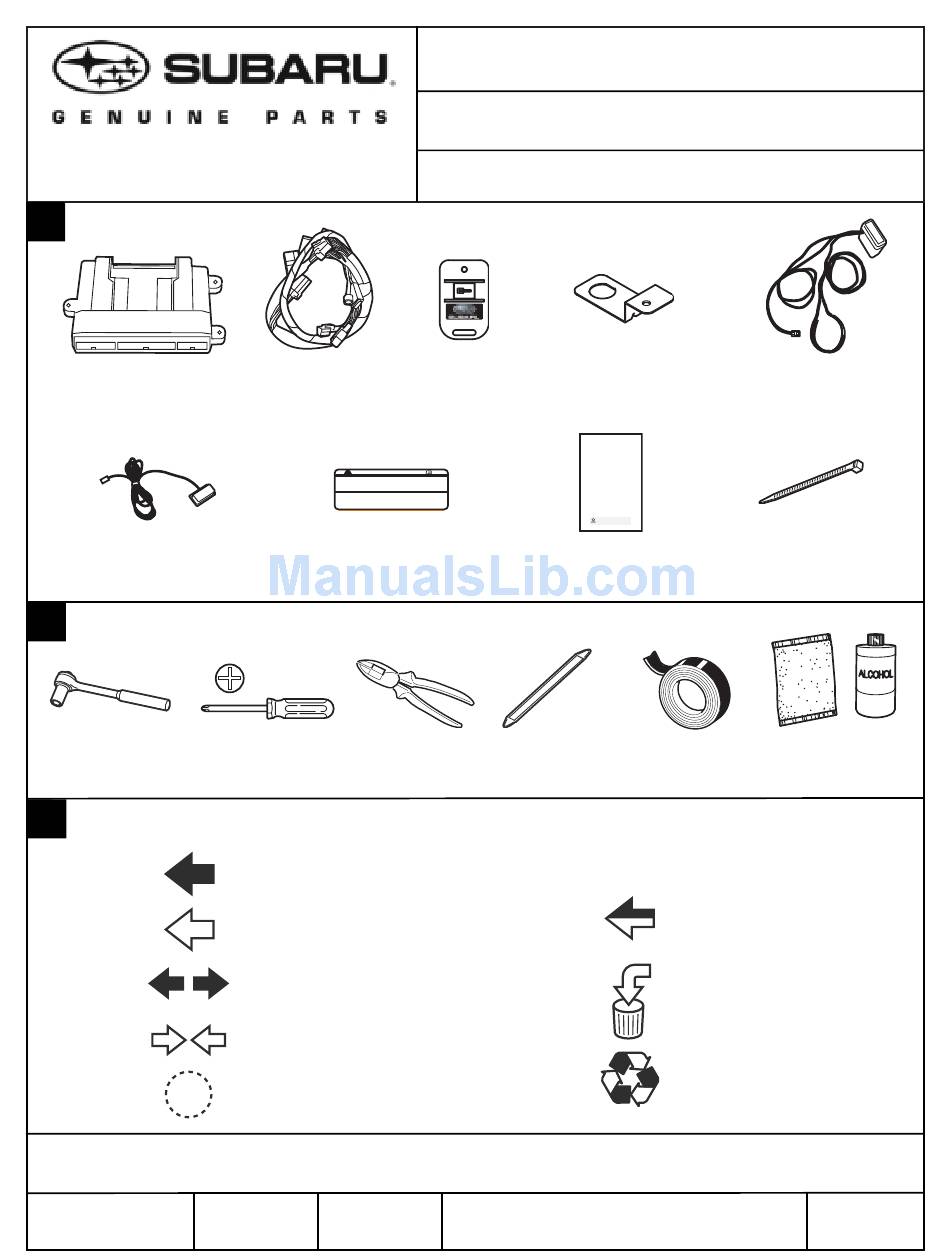

KIT CONTENTS

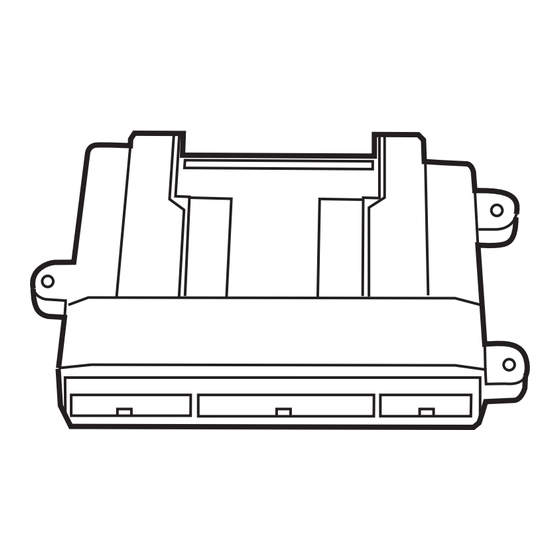

Remote Start Control Module
w/ Software Card and Fuses
Quantity= 1
Remote Start
Patch Antenna
Quantity=1
2
TOOLS REQUIRED
10 mm Socket
Phillips Screwdriver
Short and Standard
and Ratchet
3
MEANING OF CHARACTERS
CAUTION: DO NOT SECURE ANY REMOTE START HARNESSES / MODULES TO ANY
YELLOW HARNESSES / CONNECTORS (AIRBAG SYSTEM) IN THE VEHICLE.
PART NUMBER
H001SXA000
Remote Start Wiring
Harness w/ 30 AMP Fuse
Quantity= 1
WARNING: / AVERTISSEMENT
This vehicle is equipped with a remote controlled engine starter.
To reduce the risk of serious Injury or death, switch engine starter
system into service mode and disconnect the vehicle battery
before performing any service on the vehicle.
Ce véhicule est doté d'un démarreur à distance. Pour réduire les
risques de blessures graves ou mortelles, mettre le démarreur à
distance en mode service et débrancher la batterie du véhicule
avant d'effectuer des travaux d'entretien sur celui-ci.
Underhood
Warning Label
Quantity=1
Wire Cutters
: Remove
: Install
: Disconnect
: Connect
: Location of Clip or Screw
ISSUE
DATE
01
03/14/06
PART NUMBER: H001SXA000
DESCRIPTION: REMOTE ENGINE START SYSTEM
Remote Start
Hood Switch Mounting
Transmitters
Bracket, Switch and 10"
Quantity= 2
Jumper Harness
Quantity=1
Vehic le Remote Star t System
Installation
Instructions
Featuring P owerCode Technology
For the Ultimate in Comfort, Convenience and Security
TM
Installation
Instructions
Quantity=1
Panel Removal
Tool
SUBARU OF AMERICA
Remote Start Immobilizer
Interface w/ Antenna Ring
Quantity=1
®
TM
Tie Wraps
5" Quantity= 4
8" Quantity= 12
24" Quantity= 1
Electrical Tape
Alcohol and Towel
: Tighten Torque
T
: Loosen
: Discard
: Re-use
1 OF 10
