INSTALLATION
INSTRUCTIONS

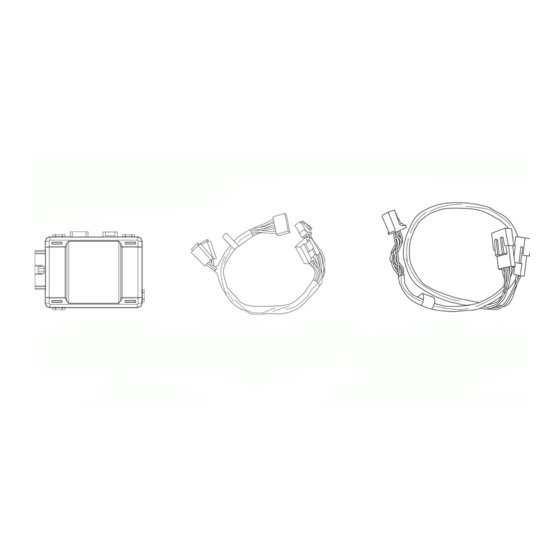

KIT CONTENTS

1
Remote Start
Control Module
Quantity= 1
Remote Start
Antenna and Harness
Quantity=1

TOOLS REQUIRED

2
Ratchet and
Phillips Screwdriver
Short and Standard
10mm Socket

MEANING OF CHARACTERS

3
CAUTION: DO NOT SECURE ANY REMOTE START HARNESSES / MODULES TO ANY YELLOW HARNESSES / CON-
NECTORS (AIRBAG SYSTEM) IN THE VEHICLE.
PART NUMBER
ISSUE
H001SSG400
Remote Start Ignition
Wiring Harness
Quantity= 1
Press
Starting Your Vehicle
The remote control start function is activated by pressing
the START (key icon) button twice within 3 seconds on
your remote control transmitter. The system will check
certain pre-conditions before starting, and if all safety
parameters are correct, the engine will start within 5
seconds. If the vehicle s starter cranks but does not start
or starts and stalls, the remote engine start system will
power off then attempt to start the vehicle an additional
four times.
WARNING: / AVERTISSEMENT
WARNING: TO AVOID DANGER OF CARBON MONOXIDE,
NEVER REMOTE START A VEHICLE IN A CLOSED SPACE
SUCH AS A CLOSED GARAGE.
This vehicle is equipped with a remote controlled engine starter.
Turning Your Vehicle Off
To reduce the risk of serious Injury or death, switch engine starter
Press and hold the START (key icon) button again to turn
the vehicle off. If the vehicle is left running the remote start
system into service mode and disconnect the vehicle battery
system will allow the vehicle to run for a total of 15 minutes
and then automatically turn off.
before performing any service on the vehicle.
Ce vé h icule est doté d'un dé m arreur à distance. Pour ré d uire les
Entering the Vehicle While it is Running via Remote Start
1. Unlock the vehicle doors using the factory keyless
risques de blessures graves ou mortelles, mettre le dé m arreur à
remote. If the vehicle s doors are unlocked manually
using the key, the vehicle s security system will trigger
distance en mode service et dé b rancher la batterie du vé h icule
and the remote start system will turn off. Inserting
the ignition key into the ignition cylinder and
avant d'effectuer des travaux d'entretien sur celui-ci.
turning it to the ON or RUN position will disarm the
security system.
2. Enter the vehicle. Do not press the brake pedal.
3. Insert the key into the ignition and turn to the ON positi-
ion. If the ignition key is accidently turned to the start
position, the system s starter anti-grind feature will
prevent the starter from re-cranking.
4. Press the brake pedal. The remote starter disenga-
ges, the vehicle s power window features are re-ena-
bled and the vehicle will operate normally.
Quick
Underhood
Reference Card
Warning Label
Quantity=1 English,
Quantity=1
Torque Wrench
: Remove
: Install
: Disconnect
: Connect
: Location of Clip or Screw
DATE
27 May 2013
00
PART NUMBER:
DESCRIPTION:
Pre-Arranged
Jumper Wiring Harness
Quantity= 1
REMOTE START QUICK REFERENCE
2 Times
Press
For 2 Seconds
Remote Start
Remote Start
Activation
Shutdown
Tie Wraps
8" (Reusable) Quantity= 1
8" Quantity= 15
21" Quantity= 1
1 French
Wire Cutters
Panel Removal
SUBARU OF AMERICA
H001SSG400
Remote Start
Transmitters W/ Warning
Tags
Quantity=2
Long Foam Tape
Quantity= 1
Alcohol and Towel
Tool
T
: Tighten Torque
: Loosen
: Discard
: Re-use
Hood Safety Switch,
Mounting Bracket &
Mounting Bolt
Quantity=1
Small Foam Pads
Quantity= 6
SSM III
Diagnostic Interface
1 OF 12

Advertisement

Table of Contents
loading

Summary of Contents for Subaru H001SSG400

  • Page 1: Kit Contents

    : Location of Clip or Screw CAUTION: DO NOT SECURE ANY REMOTE START HARNESSES / MODULES TO ANY YELLOW HARNESSES / CON- NECTORS (AIRBAG SYSTEM) IN THE VEHICLE. DATE PART NUMBER ISSUE SUBARU OF AMERICA 1 OF 12 27 May 2013 H001SSG400...
  • Page 2: Vehicle Preparation

    Using a panel removal tool, carefully lift upward to unplug the electrical connector and place the airbag / knee bolster in a safe area. (FIGURE G) PART NUMBER ISSUE DATE 2 OF 12 SUBARU OF AMERICA H001SSG400 27 May 2013...
  • Page 3 4. Inspect the white protective (non-woven fabric) of the curtain airbag. If the fabric is damaged, the curtain airbag assembly must be replaced. FIGURE K DATE PART NUMBER ISSUE SUBARU OF AMERICA 3 OF 12 27 May 2013 H001SSG400...
  • Page 4 8. Re-install the A pillar panel and driver’s side dashboard tweeter cover. 9. Re-install the overhead console. FIGURE O PROCEED TO SECTION 7 PART NUMBER ISSUE DATE 4 OF 12 SUBARU OF AMERICA H001SSG400 27 May 2013...
  • Page 5 4. Inspect the white protective (non-woven fabric) of the curtain airbag. If the fabric is damaged, the curtain airbag assembly must be replaced. FIGURE S DATE PART NUMBER ISSUE SUBARU OF AMERICA 5 OF 12 27 May 2013 H001SSG400...
  • Page 6 5. Re-install the airbag tether clip to the A pillar panel and rotate the panel into place. 6. Re-install the A pillar panel and driver’s side dashboard tweeter cover. FIGURE U FIGURE V PART NUMBER ISSUE DATE 6 OF 12 SUBARU OF AMERICA H001SSG400 27 May 2013...
  • Page 7 3. Plug the remote start pre-fit jumper harness 4-pin and 2-pin male connectors into the corresponding 4-pin and 2-pin vehicle female connectors. (FIGURE Z) FIGURE Z DATE PART NUMBER ISSUE SUBARU OF AMERICA 7 OF 12 27 May 2013 H001SSG400...
  • Page 8 / telescopic fully to ensure that the new components do not interfere with operation of the tilt / telescopic Tie Wraps feature. FIGURE EE PART NUMBER ISSUE DATE 8 OF 12 SUBARU OF AMERICA H001SSG400 27 May 2013...
  • Page 9 Using two (2) of the supplied 8”tie wraps, secure the hood switch harness to the hood switch bracket and factory wiring. (FIGURE II) Wire Ties FIGURE II DATE PART NUMBER ISSUE SUBARU OF AMERICA 9 OF 12 27 May 2013 H001SSG400...
  • Page 10 3. With vehicle running via ignition key, verify that the instrument cluster airbag light turns off. If the airbag light remains on, refer to vehicle service information for troubleshooting. PART NUMBER ISSUE DATE 10 OF 12 SUBARU OF AMERICA H001SSG400 27 May 2013...
  • Page 11 "Reg Remote Cont. Confirm Ignition Sw On Registration PRESS PRESS PRESS "Remo.con.eng.st "Registering... WAIT Eng Starter Press "Ent" Complete regist.success" Please Wait" Yes: ENT / No: C" DATE PART NUMBER ISSUE SUBARU OF AMERICA 11 OF 12 27 May 2013 H001SSG400...
  • Page 12 9. TRANSMITTER FUNCTIONALITY VERIFICATION - Activate the remote engine starter using both of the supplied single button transmitters. FUNCTIONAL TESTING IS NOW COMPLETE. PART NUMBER ISSUE DATE SUBARU OF AMERICA 12 OF 12 H001SSG400 27 May 2013 4280543 Rev- 05/27/13...
  • Page 13 ATTENTION : N’ATTACHEZ JAMAIS LE FAISCEAU OU LE MODULE DE DÉMARRAGE À DISTANCE À UN FAISCEAU JAUNE DU VÉHICULE OU À SON CONNECTEUR (SYSTÈME DE COUSSINS GONFLABLES). NUMÉRO DE PIÈCE VERSION DATE SUBARU OF AMERICA 1 DE 12 H001SSG400 27 May 2013...
  • Page 14 Avec un outil enlève-panneau, soulevez délicatement pour débrancher le connecteur électrique, puis rangez le protège-genou/coussin gonflable à un endroit sûr. (FIGURE G) FIGURE D NUMÉRO DE PIÈCE VERSION DATE 2 DE 12 SUBARU OF AMERICA H001SSG400 27 May 2013...
  • Page 15 Si le tissu est endommagé, comme le révèle la visibilité de la toile rose du coussin gonflable lui-même, il faut remplacer l’ensemble coussin gonflable. FIGURE K NUMÉRO DE PIÈCE VERSION DATE SUBARU OF AMERICA 3 DE 12 H001SSG400 27 May 2013...
  • Page 16 8. Réinstallez le clip d'attache airbag au tableau A colonne et faites pivoter le panneau en place. FIGURE O 9. Réinstallez la console de pavillon. PASSER À SECTION 7 NUMÉRO DE PIÈCE VERSION DATE 4 DE 12 SUBARU OF AMERICA H001SSG400 27 May 2013...
  • Page 17 Si le tissu est endommagé, comme le révèle la visibilité de la toile rose du coussin gonflable lui- même, il faut remplacer l’ensemble coussin gonflable. FIGURE S NUMÉRO DE PIÈCE VERSION DATE SUBARU OF AMERICA 5 DE 12 H001SSG400 27 May 2013...
  • Page 18 6. Réinstallez le clip d'attache airbag au tableau A colonne et faites pivoter le panneau en place. FIGURE U FIGURE V NUMÉRO DE PIÈCE VERSION DATE 6 DE 12 SUBARU OF AMERICA H001SSG400 27 May 2013...
  • Page 19 3. Branchez le cavalier prémonté de démarrage à distance à connecteurs mâles FIGURE Y 4 points et 2 points aux connecteurs femelles correspondants du véhicule. (FIGURE Z) FIGURE Z NUMÉRO DE PIÈCE VERSION DATE SUBARU OF AMERICA 7 DE 12 H001SSG400 27 May 2013...
  • Page 20 Attache FIGURE EE NUMÉRO DE PIÈCE VERSION DATE 8 DE 12 SUBARU OF AMERICA H001SSG400 27 May 2013...
  • Page 21 (FIGURE II) Wire Ties Attache FIGURE II NUMÉRO DE PIÈCE VERSION DATE SUBARU OF AMERICA 9 DE 12 H001SSG400 27 May 2013...
  • Page 22 3. Avec le véhicule qui court via la clef de contact, vérifier que la lumière d'airbag de bloc d'instruments éteint. Si la lumière d'airbag reste sur, se référer aux informations de service de véhicule pour le dépannage. NUMÉRO DE PIÈCE VERSION DATE 10 DE 12 SUBARU OF AMERICA H001SSG400 27 May 2013...
  • Page 23 "ENT" sélectionner "ENT" "ENT" «All Other Model» pour sélectionner « Imm Regist » « Véhicule Subaru » (tout autre modèle) Sys immobi Presser "ENT" L'écran SDI affichera L'écran SDI affichera L'écran SDI affichera « Confirm IGN ON YES L'écran du SDI affiche :...
  • Page 24 9. VÉRIFICATION DU FONCTIONNEMENT DE LA TÉLÉCOMMANDE – Activez le système de démarrage à distance tour à tour avec les deux télécommandes à un bouton fournies. L’ESSAI DE FONCTIONNEMENT EST MAINTENANT TERMINÉ. NUMÉRO DE PIÈCE VERSION DATE SUBARU OF AMERICA 12 DE 12 H001SSG400 27 May 2013 4280543 Rev - 05/27/13...
