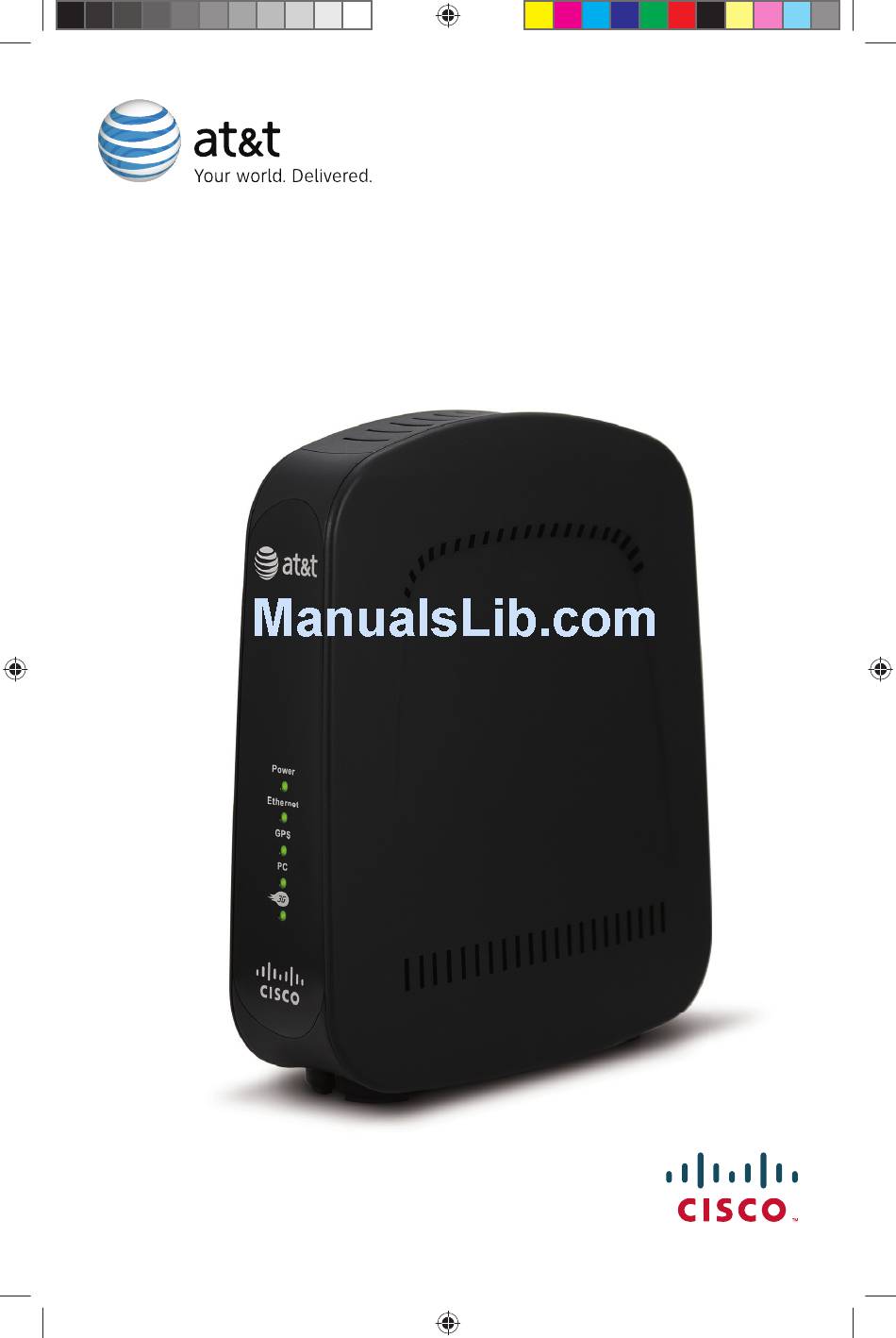

Page 1: User Guide
User Guide ™ AT&T 3G MicroCell OCTOBER 24, 2008 DRAFT... -
Page 3: Table Of Contents
OCTOBER 24, 2008 DRAFT Contents IMPORTANT SAFETY INSTRUCTIONS ................4 Welcome ..........................6 What’s Inside This Guide ................................6 Getting Started ........................7 Before You Begin ....................................7 Unpack ........................................7 Installation .......................... 8 About Ethernet Cabling ..................................8 DSL/Cable Service with Network Router ..........................9 DSL/Cable Service without Network Router ........................10 Power Cabling ....................................11 Activate Your Account .................... -
Page 4: Important Safety Instructions
OCTOBER 24, 2008 DRAFT IMPORTANT SAFETY INSTRUCTIONS Notice to Installers The servicing instructions in this notice are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions, unless you are qualified to do so. Note to System Installer For this apparatus, the cable shield/screen shall be grounded as close as practical to the point of entry of the cable into the... - Page 5 OCTOBER 24, 2008 DRAFT IMPORTANT SAFETY INSTRUCTIONS , continued Power Source Warning Protect from Exposure to Moisture and Foreign Objects A label on this product indicates the correct power source for this product. Operate this product only from an electrical outlet with the voltage and frequency indicated on the product label.
-
Page 6: Welcome
OCTOBER 24, 2008 DRAFT Welcome ™ Congratulations on purchasing the AT&T 3G MicroCell . The MicroCell provides voice and data service to AT&T 3G wireless phones and devices within a home or small business. The MicroCell is secure and delivers maximum cellular signal strength within its coverage area – it’s like having your own mini cell tower in your home or office for personalized coverage. -
Page 7: Getting Started
OCTOBER 24, 2008 DRAFT Getting Started Before You Begin There are three things you must have before you can operate the MicroCell: • Broadband service over DSL or Cable* • Broadband modem or network router • Computer with Internet access to register your device Please verify these requirements before going any further. -
Page 8: Installation
OCTOBER 24, 2008 DRAFT Installation The MicroCell is a plug-n-play device that installs in minutes. Connecting the MicroCell to your pre-existing equipment is straight forward, but be sure to read the cabling instructions carefully before making connections. About Ethernet Cabling There are two Ethernet cabling options for installing your device. -
Page 9: Dsl/Cable Service With Network Router
OCTOBER 24, 2008 DRAFT DSL/Cable Service with Network Router If a network router is part of your Internet equipment setup, the MicroCell should be installed between the modem and network router. Ethernet Cabling Procedures • Place the MicroCell upright, near the modem, network router, and AC outlet. •... -
Page 10: Dsl/Cable Service Without Network Router
OCTOBER 24, 2008 DRAFT DSL/Cable Service without Network Router If a network router is not part of your internet equipment setup, the MicroCell should be connected between the modem and the PC. Ethernet Cabling Procedures • Place the MicroCell upright, near the modem and AC outlet. •... -
Page 11: Power Cabling
OCTOBER 24, 2008 DRAFT Power Cabling Power cabling for the MicroCell is the same, no matter what your equipment configuration is. The MicroCell uses house current from a 120VAC outlet. • Connect one end of the AC adapter to the rear panel connector marked AC adapter. •... -
Page 12: Activate Your Account
OCTOBER 24, 2008 DRAFT Activate Your Account You must register your AT&T 3G MicroCell™ online before your service can be activated. Please go to att.com/3GMicroCell, which will walk you through the following steps. • Login and navigate to the Welcome page. It will provide helpful information on what you will need to activate your service. -
Page 13: Microcell Status
OCTOBER 24, 2008 DRAFT MicroCell Status This diagram identifies the status LEDs on the MicroCell front panel. Power Power Status LED Ethernet Ethernet Status LED GPS Status LED PC Status LED 3G Status LED T13822 OCTOBER 24, 2008 DRAFT... -
Page 14: Device Status
16 for additional information. If you are still unable to resolve the problem, contact Customer Support at 800.331.0500 for assistance. Device Status 3G devices registered to access AT&T 3G MicroCell™ service on your MicroCell will display this alpha tag when service is available: AT&T MicroCell If you do not see this alpha tag on your device, you are either out of range of the MicroCell or your device isn’t registered (see Approved User List), or your MicroCell is not functioning properly... -
Page 15: Operation
Note: You can still receive AT&T 3G MicroCell™ service when the GPS link is down as long as the MicroCell has previously completed authentication. However, if you move your MicroCell to a new address, it will need a GPS link again in order to complete authentication and receive AT&T... -
Page 16: Troubleshooting
OCTOBER 24, 2008 DRAFT Troubleshooting Your AT&T 3G MicroCell™ has been engineered to provide continuous service without intervention on your part. Occasionally, though, hardware faults and broadband service interruptions can occur that disrupt the operation of the MicroCell. For these occasions, there are remedial troubleshooting steps you can take to find the source of the problem and restore operation. - Page 17 OCTOBER 24, 2008 DRAFT Hardware Problems , continued If… Then… There is no physical connection between the MicroCell and the broadband modem. • Make sure an Ethernet cable is securely connected between The Ethernet LED the broadband modem and the MicroCell rear panel connector is off.
-
Page 18: Service Problems
The cellular antenna is mounted inside the MicroCell enclosure and is for transceiving cellular traffic with registered 3G devices. The maximum range of the AT&T 3G MicroCell™ is approximately 5000 square feet. Actual range will be limited by the density of obstructions. -
Page 19: Gps Antenna
OCTOBER 24, 2008 DRAFT GPS Antenna Extension Installation • Plug one end of the device into the GPS antenna extension connector and place the other end as close as possible to the nearest window. • Recycle power on the MicroCell to restart authentication. •... -
Page 20: At&T Warranty Terms
OCTOBER 24, 2008 DRAFT AT&T Warranty Terms OCTOBER 24, 2008 DRAFT... - Page 21 OCTOBER 24, 2008 DRAFT OCTOBER 24, 2008 DRAFT...
-
Page 22: Compliance Information
If not installed and used in accordance with the instructions, AT&T 3G MicroCell™ it may cause harmful interference to radio Model: MicroCell communications. However, there is no Manufactured by: Cisco Systems, Inc. -
Page 23: Radiation Exposure Statements
OCTOBER 24, 2008 DRAFT Radiation Exposure Statements Note: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 7.9 inches (20 cm) between the radiator and your body. United States This system has been evaluated for RF exposure for humans in reference to ANSI C 95.1 (American National Standards Institute) limits. - Page 24 Cisco, Cisco Systems, the Cisco logo, the Cisco Systems logo, and Scientific Atlanta are registered trademarks or trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries. AT&T, the AT&T logo, and AT&T 3G MicroCell are trademarks of AT&T Intellectual Property. All other trademarks mentioned in this document are the property of their respective owners.
