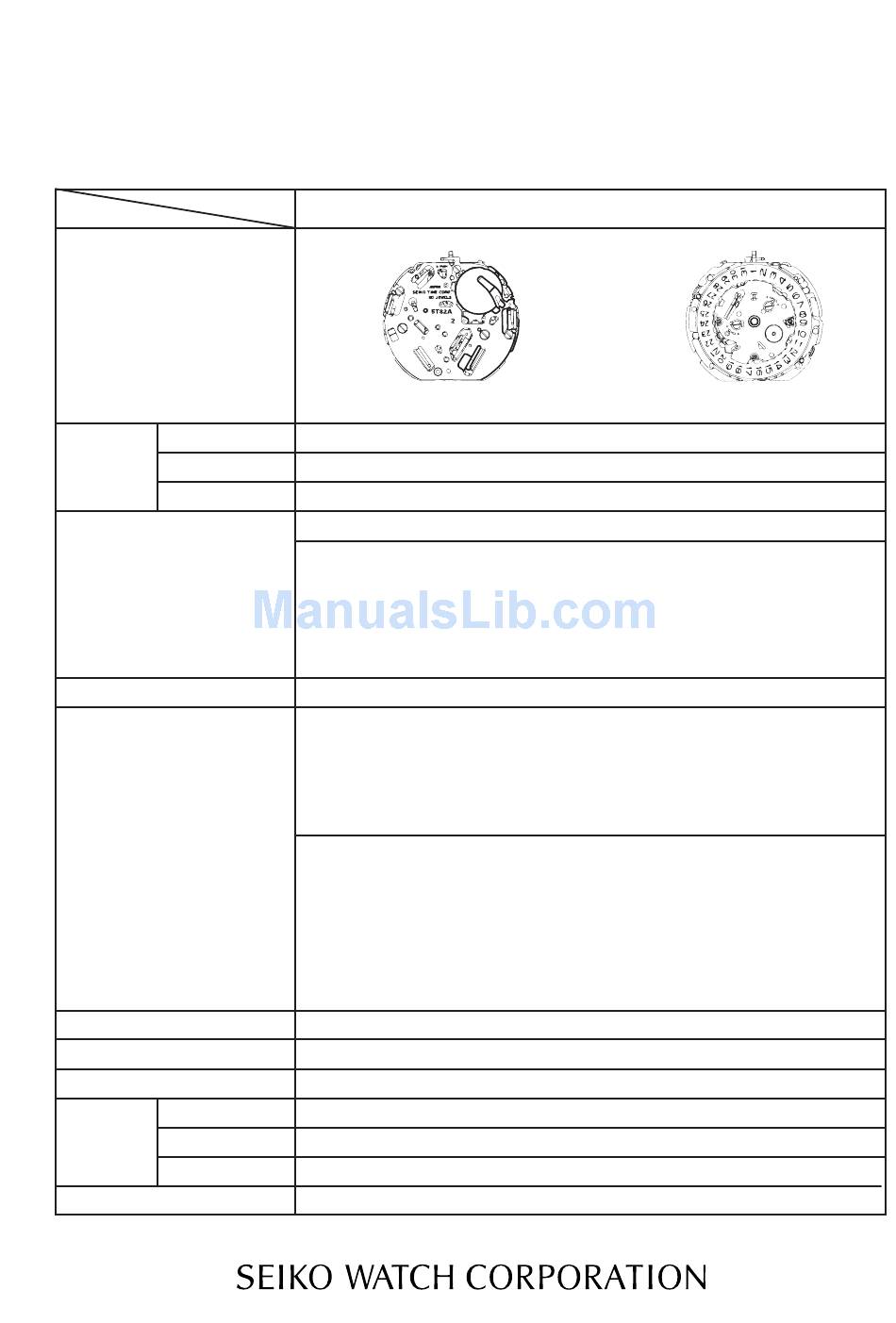

PARTS CATALOGUE / TECHNICAL GUIDE
[SPECIFICATIONS]
Cal. No.
Item

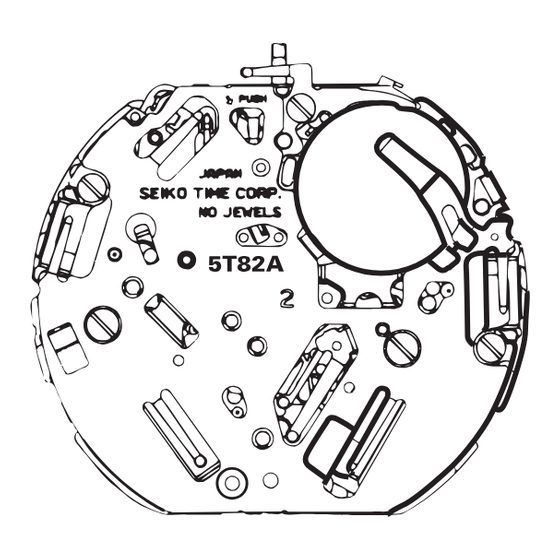

Movement
Movement
Outside diameter
size
Casing diameter
Height
Time indication
(Movement intervals)
Driving system
Additional mechanism
Loss/gain
Regulation system
Measuring gate by quartz tester
Battery No.
Battery
Voltage
Battery life
Jewels
Cal. 5T82A
Main time: Hour, minute and small second hands (1 second)
• WORLD TIME:
City hand (24 cities),
WORLD TIME hour hand,
WORLD TIME minute hand
• ALARM:
ALARM hour hand
ALARM minute hand
Step motor
4 pcs.
• Electronic circuit reset switch
• Train wheel setting device
• Date calendar
• Instant setting device for date calendar
• Battery life indicator (The small second hand moves at two-second
intervals.)
• System reset
• WORLD TIME
24 cities
WORLD TIME hand position adjustment
• ALARM function
Single-time ALARM
Monthly rate at normal temperature range: less than 15 seconds
Nil
Use 10-second gate.
SR927W
1.55 V
Approx. 3 years
Nil
/26
5T82A
Ø 27.6 mm
Ø 27.0 mm
3.3 mm
(x 1.0)
Advertisement
Related Manuals for Seiko 5T82A
Summary of Contents for Seiko 5T82A
- Page 1 PARTS CATALOGUE / TECHNICAL GUIDE Cal. 5T82A [SPECIFICATIONS] Cal. No. 5T82A Item Movement (x 1.0) Ø 27.6 mm Movement Outside diameter size Casing diameter Ø 27.0 mm Height 3.3 mm Main time: Hour, minute and small second hands (1 second)
- Page 2 ALARM hand position adjustment differ from those of the previous Cal. 7T Series watches. As a result of this structure change, the battery life of Cal. 5T82A has increased to 3 years as com- pared with that of the previous Cal. 7T series watches.
- Page 3 REMARKS ON REPAIRING CAL. 5T82A II. NECESSARY PROCEDURE AFTER BATTERY CHANGE After installing the battery, reset the built-in integrated circuit, and then set the time and adjust the ALARM and WORLD TIME hand positions following the procedure below. Pull out to the 2nd click when the small second hand is at the Crown 12 o’...
-
Page 4: Parts Catalogue
PARTS CATALOGUE Cal. 5T82A Disassembling procedures Figs. : Reassembling procedures Figs. : * For the type of oil and quantity of lubrication, refer to the following TECHNICAL GUIDE section. Remarks on removing the winding stem To remove the winding stem when taking... - Page 5 PARTS CATALOGUE Cal. 5T82A 4259 509 Anti magnetic shield plate B 0022 230 3013 250 (SR927W) Battery clamp screw (3 pcs.) Battery 0022 230 0022 459 Battery clamp screw Circuit block cover screw ( 3 pcs.) 4225 547 Battery clamp 0022 459...
- Page 6 PARTS CATALOGUE Cal. 5T82A 4246 700 Buzzer lead terminal 4270 710 Battery connection (–) 0027 974 Pin for train wheel bridge 0125 509 Train wheel bridge 0240 580 Small second wheel 0888 582 City setting wheel 0241 583 Fourth wheel & pinion 0701 580 Fifth wheel &...
- Page 7 PARTS CATALOGUE Cal. 5T82A 0281 580 Setting wheel 0264 580 Minute wheel for WORLD TIME 24-hour indication 0261 582 Minute wheel for ALARM 0282 585 Clutch wheel 0221 583 Center wheel and pinion 4002 700 Coil block (A) 4002 700...
- Page 8 PARTS CATALOGUE Cal. 5T82A The correct parts for the followings are determined based on the design of cases. Check the case number, and refer to "Watch Parts Catalogue CD-ROM" to choose corresponding parts. Holding ring for dial (0866 651) ✳ Date dial...
- Page 9 Cal. 5T8 2 A TEC HNICA L GU IDE PROCESS ILLUSTRATIONS AND SPECIAL INSTRUCTIONS ETC. Assembling the switching unit and Lubricate the contact area between the small Lubricate the lower pivots of the rotors: Moebius F or AO-2 wheels second wheel and main plate: Moebius F or AO-2 Set the main plate.
- Page 10 Cal. 5T8 2 A TEC HNICA L GU IDE PROCESS ILLUSTRATIONS AND SPECIAL INSTRUCTIONS ETC. Set the switch lever B. 53, 52 50, 49 Set the coil block for city setting and the coil block (A). Rotor stator for city setting : 2.10 K 2.70 K Coil resistance...
- Page 11 Cal. 5T8 2 A TEC HNICA L GU IDE PROCESS ILLUSTRATIONS AND SPECIAL INSTRUCTIONS ETC. Set the center wheel & 40, 39, 38, 37 Set the rotor for city setting, WORLD TIME rotor, ALARM rotor and step rotor. Set the center wheel & pinion and lubricate as pinion and lubricate its illustrated below.
- Page 12 Cal. 7T8 2 A TEC HNICA L GU IDE PROCESS ILLUSTRATIONS AND SPECIAL INSTRUCTIONS ETC. Lubricate the switching unit. Point of contact between the train wheel setting lever and yoke. Point of contact in Lubricate the point of contact between the train wheel the tail portion of the setting lever and yoke.
- Page 13 Cal. 5T8 2 A TEC HNICA L GU IDE PROCESS ILLUSTRATIONS AND SPECIAL INSTRUCTIONS ETC. Set the second intermediate wheel for Set the first intermediate wheel for city setting. Set the small second wheel. city setting. Set the spacer for center 27, 26 Set the fifth wheel and pinion and Dark green wheel &...
- Page 14 Cal. 5T8 2 A TEC HNICA L GU IDE PROCESS ILLUSTRATIONS AND SPECIAL INSTRUCTIONS ETC. Set the train wheel <22> Set the train wheel bridge. Lubricate the upper pivots of the rotor for city setting, WORLD TIME rotor, and ALARM rotor and bridge.
- Page 15 Cal. 5T8 2 A TEC HNICA L GU IDE PROCESS ILLUSTRATIONS AND SPECIAL INSTRUCTIONS ETC. Assembling the Set the friction spring for circuit unit 18 Set the circuit block. second counting. Make sure that the circuit block is securely engaged with the two Set the circuit block.
- Page 16 Cal. 5T8 2 A TEC HNICA L GU IDE PROCESS ILLUSTRATIONS AND SPECIAL INSTRUCTIONS ETC. Set the battery clamp. Tighten the battery clamp screws. (3 positions) 12 Set the battery clamp. Measure the current consumption. 11 Tighten the battery clamp screws. (3 positions) 16/26...
- Page 17 Cal. 5T8 2 A TEC HNICA L GU IDE PROCESS ILLUSTRATIONS AND SPECIAL INSTRUCTIONS ETC. Assemb lin g the cal enda r unit. <9> Set the hour wheel. <7> Set the hour wheel. Set the Hour wheel for WORLD TIME 24-hour indication. The hour wheel is made of plastic.
- Page 18 Cal. 5T8 2 A TEC HNICA L GU IDE PROCESS ILLUSTRATIONS AND SPECIAL INSTRUCTIONS ETC. Set the date dial guard. Lubricating points of the calendar wheels: contact points between Set the jumper. Date dial and date jumper Moebius F or AO-2 Main plate and date jumper: Moebius F or AO-2 <1>...
- Page 19 Cal. 5T8 2 A TEC HNICA L GU IDE PROCESS SPECIFICATIONS (QUALITY SPECIFICATIONS, ILLUSTRATIONS AND SPECIAL INSTRUCTIONS ETC. HANDLING METHODS ETC.) Assemb lin g the cas e Set the battery. Pay extra attention so as not to short-circuit the battery. 11 Set the battery.
- Page 20 Cal. 5T8 2 A TEC HNICA L GU IDE PROCESS SPECIFICATIONS (QUALITY SPECIFICATIONS, ILLUSTRATIONS AND SPECIAL INSTRUCTIONS ETC. HANDLING METHODS ETC.) (12 o’clock position) T82A WORLD TIM E Set the ORLD TIME hour hand. Set the ORLD TIME WORLD TIME hour hand minute hand.
- Page 21 Cal. 5T8 2 A TEC HNICA L GU IDE PROCESS SPECIFICATIONS (QUALITY SPECIFICATIONS, ILLUSTRATIONS AND SPECIAL INSTRUCTIONS ETC. HANDLING METHODS ETC.) Pull out the crown temporarily to the first click position when removing Remove the Be careful so as not to deform the winding stem conducting spring of the circuit block cover while the winding stem.
- Page 22 Cal. 5T8 2 A TEC HNICA L GU IDE Functional Inspection Operational Specifications (Reference) Rotation Button to press Normal Free Button A: adjusting the WORLD TIME hands in the clockwise direction (stopping the ALARM while it is ringing) position Button B: adjusting the WORLD TIME hands in the counterclockwise direction (stopping the ALARM while it is ringing) First Clockwise: Button A activating the ALARM demonstration function...
- Page 23 Cal. 5T8 2 A TEC HNICA L GU IDE SPECIFICATIONS (QUALITY SPECIFICATIONS, ILLUSTRATIONS AND SPECIAL INSTRUCTIONS ETC. PROCESS HANDLING METHODS ETC.) Affix the AC For instructions on where to affix the sticker, refer to the illustration at com ment sti c ke r. the right.
-
Page 24: Technical Guide
TECHNICAL GUIDE Cal. 5T82A IV. VALUE CHECKING ● Coil block resistance 2.10 KΩ ~ 2.70 KΩ Coil block (A) (4002 700) Coil block for city setting (4002 700) 2.10 KΩ ~ 2.70 KΩ Coil block for ALARM (4002 711) 1.80 KΩ ~ 2.40 KΩ... -
Page 25: Troubleshooting
Cal. 5T82A TECHNICAL GUIDE V. TROUBLESHOOTING Symptom Possible causes Solutions Measure the bat ter y voltage. Movement The watch stops operat- The battery has been depleted. Replace the battery with a new ing. one. The hour wheel and the pinion of... - Page 26 TECHNICAL GUIDE Cal. 5T82A Symptom Possible causes Solutions ALARM/ Measure the coil block resist- One or more ALARM hands, The relevant coil is broken. WORLD TIME ance. Replace the coil with a new WORLD TIME hands or city one if necessary.
